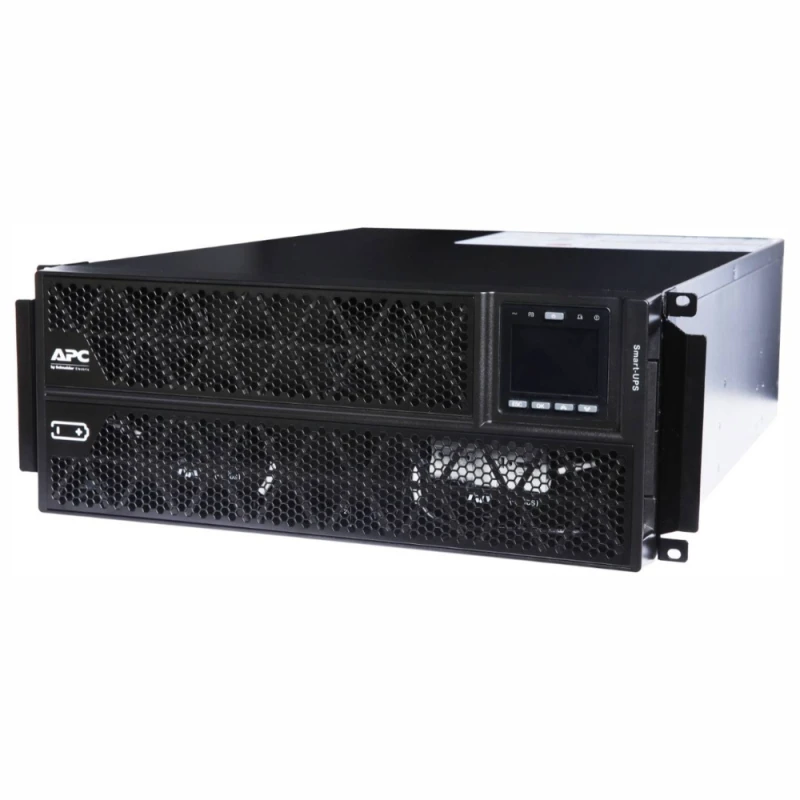

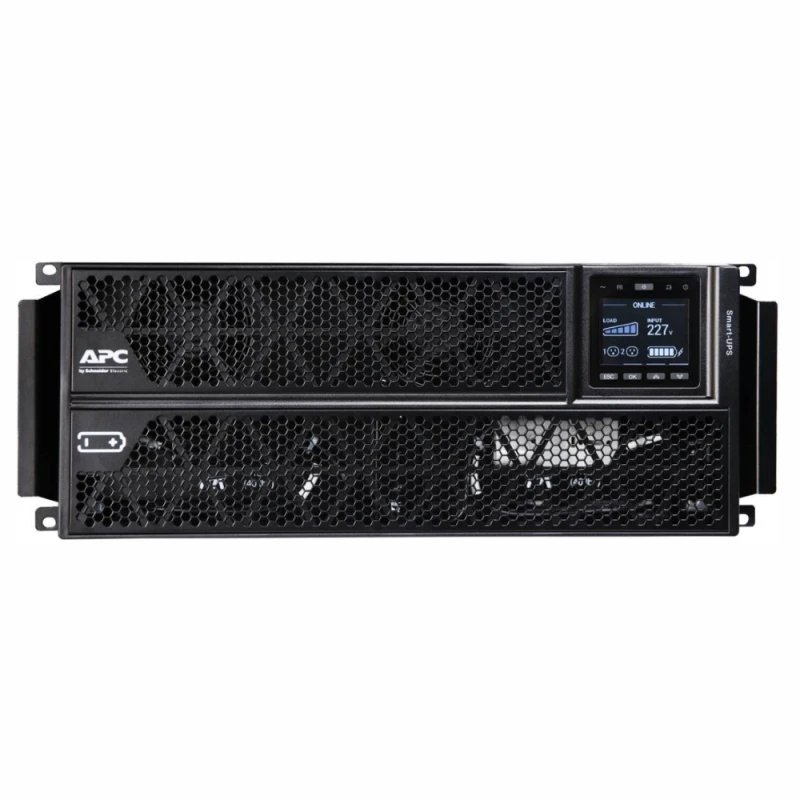

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line rack/tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (1P+N+E) input, 2x IEC 320 C13 and 1x IEC 320 C19 outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTGRK1 rail kit sold separately.
5kVA/5kW double-conversion on-line pure sine wave rack/tower UPS
Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
Rack/tower convertible (SRTGRK1 rail kit sold separately)
1-Year Secure Network Management Card subscription included
Add up to 4 external battery packs (SRTG192XLBP4) for extended runtime
| Weight: | 59.00 kg |
| Dimensions: | 79 x 59 x 27 cm |
|
Main Input Voltage 230 V Product or component type Uninterruptible power supply (UPS) Other Input Voltage 220 V 240 V Main Output Voltage 230 V Other Output Voltage 220 V 240 V Rated power in W 5000 W rated power in VA 5000 VA output connection type 2 IEC 60320 C13 1 IEC 60320 C19 Output connector type Hard wire 3-wire (1P + N + E) 1 Number of rack unit 4U Provided equipment 1 x USB cable 1 x RJ45 cable 1 x rack mounting brackets 1 x stabilization/wall mounting feet 1 x installation manual 1 x C13-C14 power cord Range of product Smart-UPS On-Line Batteries & Runtime Run Time View Runtime Graph Efficiency View Efficiency Graph Battery type Lead-acid battery Battery voltage +/- 96 V Extended runtime 1 Number of battery filled slots 2 Number of battery free slots 0 Battery recharge time 4 h Number of battery replacement quantity 1 Battery life 3…5 year(s) Replacement battery APCRBC170 Battery charger power 239 W rated General Number of power module filled slots 0 Number of power module free slots 0 Redundant No UPS type Double conversion online Physical Colour Black (RAL 9005) Height 17.5 cm Width 44 cm Depth 62 cm Net weight 55.9 kg Mounting preference Lower Mounting mode Rack-mounted with kit Two post mountable 0 USB compatible Yes Mounting position Horizontal Input Maximum input current 30 A Switching current capacity 40 A Input voltage limits 160...285 V full load 100...285 V half load Number of input connectors 1 hard wire 3-wire (1P + N + E) Network frequency 40...70 Hz auto-sensing Output Bypass type Internal bypass (automatic and manual) Crest factor 3 : 1 Harmonic distortion Less than 2 % Maximum configurable power in VA 5000 VA Maximum configurable power in W 5000 W Wave type Sine wave Efficiency 93.5 % Output frequency 50/60 Hz +/- 4 Hz sync to mains Additional information Configurable for 220 : 230 or 240 nominal output voltage Conformance Product certifications CE UKCA TISI Standards EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 Environmental Acoustic level 55 dBA Heat dissipation 1108.95 Btu/h Operating altitude 0...3000 m Ambient air temperature for operation 0…40 °C Ambient air temperature for storage -15…45 °C Storage altitude 0…15000 m IP degree of protection IP20 Relative humidity 0…95 % non-condensing Storage Relative Humidity 0…95 % non-condensing Communications & Management Emergency power off Yes Preinstalled device Network management card 3 with environmental monitoring Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm Surge Protection and Filtering Surge energy rate 600 J Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 27.5 cm Package 1 Width 79 cm Package 1 Length 59 cm Package 1 Weight 61.8 kg Contractual warranty Warranty 3 years repair or replace (excluding battery) and 2 years for battery |
