APC | SMX3000HVNC Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 200-240V WITH Network Card
Description for APC SMX3000HVNC Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 200-240V WITH Network Card | SMX3000HVNC
| Overview |
| Model Name | APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V with Network Card |
|
| Includes | CD with software , Rack Mounting support rails , Smart UPS signalling RS-232 cable , Temperature Probe , User Manual , Web/SNMP Management Card |
|
|
|
|
| Output |
| Output Power Capacity | 2700 Watts / 3000 VA |
|
| Max Configurable Power (Watts) | 2700 Watts / 3000 VA |
|
| Nominal Output Voltage | 230V |
|
| Output Voltage Distortion | Less than 5% |
|
| Output Frequency (sync to mains) | 50/60Hz +/- 3 Hz |
|
| Other Output Voltages | 208, 220, 240V |
|
| Line Interactive |
|
| Waveform Type | Sine wave |
|

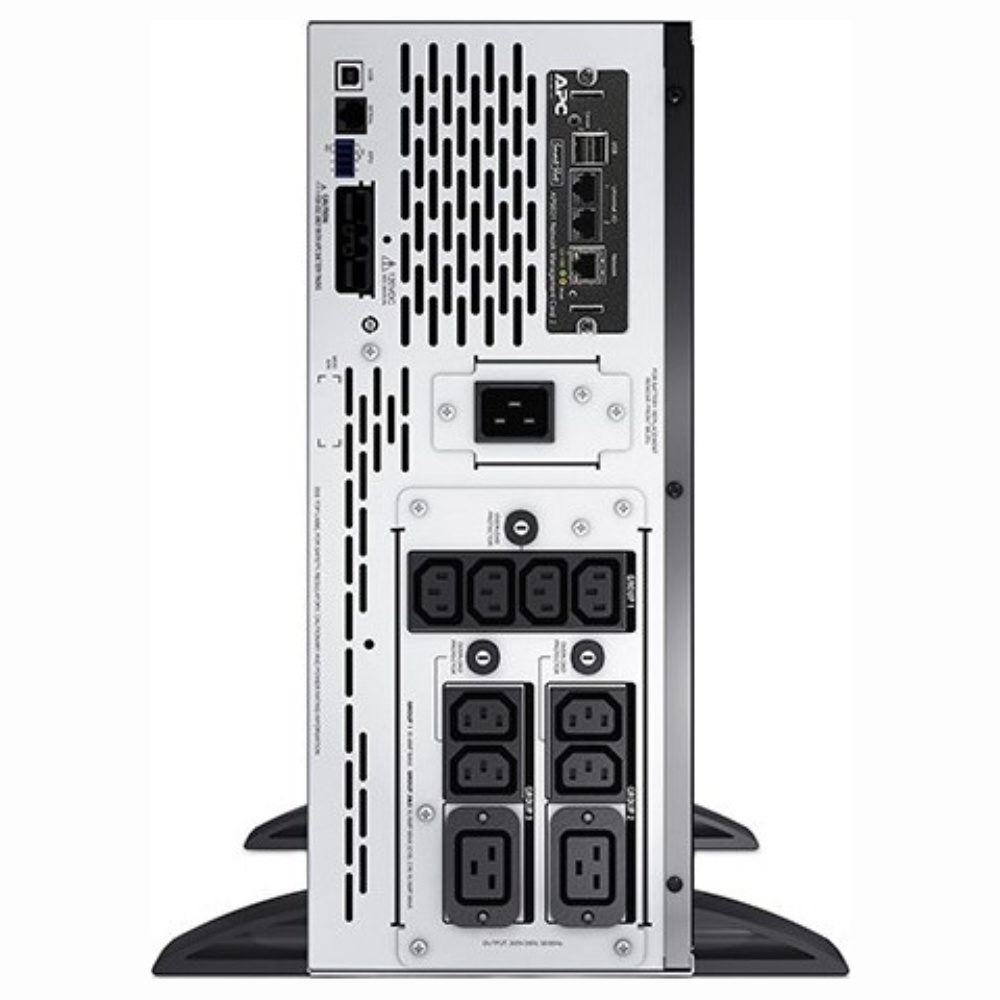

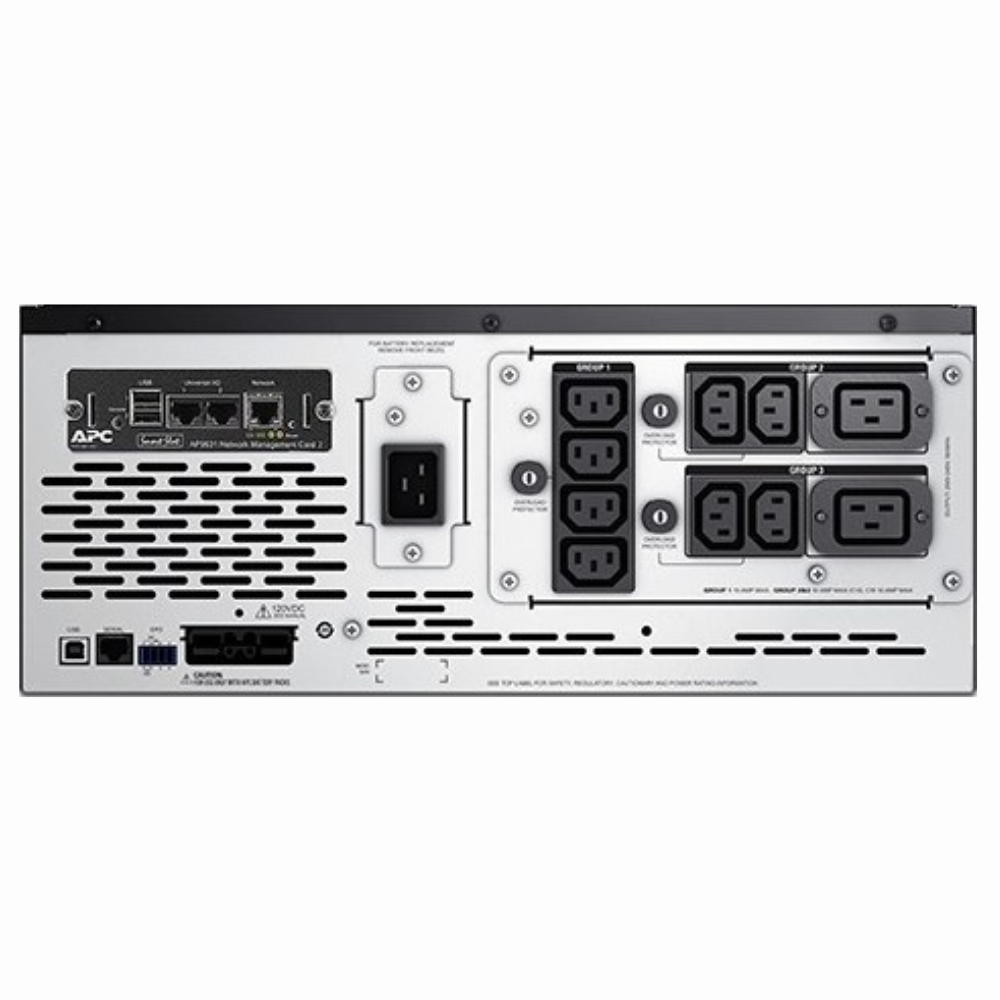

| Output Connections | (2) IEC 320 C19 (Battery Backup) , (2) IEC Jumpers (Battery Backup) , (8) IEC 320 C13 (Battery Backup) |
|
| Input |
| Nominal Input Voltage | 208V , 230V |
|
| Input Frequency | 50/60 Hz +/- 3 Hz (auto sensing) |
|
| Input Connections | British BS1363A , IEC-320 C20 , Schuko CEE 7/EU1-16P |
|
| Cord Length | 2.44 meters |
|
| Input voltage range for main operations | 140 - 280 V |
|
| Other Input Voltages | 220 , 240 |
|
| Maximum Input Current | 0 A |
|
| Input Breaker Capacity | 0 A |
|
| Batteries & Runtime |
| Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
|
| Included Battery Modules | 0 |
|
| Battery Slots Empty | 0 |
|
| Typical recharge time | 3 hour(s) |
|
| Replacement Battery | APCRBC143 |
|
| RBC Quantity | 1 |
|
| Communications & Management |
| Interface Port(s) | SmartSlot |
|
| Available SmartSlot™ Interface Quantity | 0 |
|
| Pre-Installed SmartSlot™ Cards | AP9631 |
|
| Control panel | LED status display with On Line : On Battery : Replace Battery and Overload indicators , Multi-function LCD status and control console |
|
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
|
| Emergency Power Off (EPO) | Yes |
|
| Surge Protection and Filtering |
| Surge energy rating | 645 Joules |
|
| Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
|
| Data Line Protection | -- |
|
| Physical |
| Maximum Height | 432.0 mm |
|
| Maximum Width | 178.0 mm |
|
| Maximum Depth | 483.0 mm |
|
| Rack Height | 4 U |
|
| Net Weight | 38.64 kg |
|
| Shipping Weight | 47.73 kg |
|
| Shipping Height | 330.0 mm |
|
| Shipping Width | 586.0 mm |
|
| Shipping Depth | 633.0 mm |
|
| Master Carton Units | 0.0 |
|
| Master Carton Weight | 0.0 lbs |
|
| Color | Black |
|
| Units per Pallet | 6.0 |
|
| # of Layers per Pallet | 4 |
|
| # of Units per Layer per Pallet | 2 |
|
| Pallet Weight | 388.69 kg |
|
| Environmental |
| Operating Environment | 0 - 40 °C |
|
| Operating Relative Humidity | 0 - 95 % |
|
| Operating Elevation | 0-3000 meters |
|
| Storage Temperature | -15 - 45 °C |
|
| Storage Relative Humidity | 0 - 95 % |
|
| Storage Elevation | 0-15000 meters |
|
| Audible noise at 1 meter from surface of unit | 55.000 dB |
|
| Online Thermal Dissipation | 184.000 BTU/hr |
|
| Conformance |
| Approvals | C-tick , CE , CSA , EN 50091-1 , EN 50091-2 , EN 55022 Class A , EN 60950 , FCC Part 15 Class A , GOST , IRAM , UL 1778 , VDE |
|
| Standard warranty | 3 years repair or replace (excluding battery) and 2 year for battery , optional extended warranties available , optional on-site warranties available |
|
| Sustainable Offer Status |
| RoHS | Compliant |
|
| REACH | REACH: Contains No SVHCs |
|
| Battery Directive | Compliant |
|
