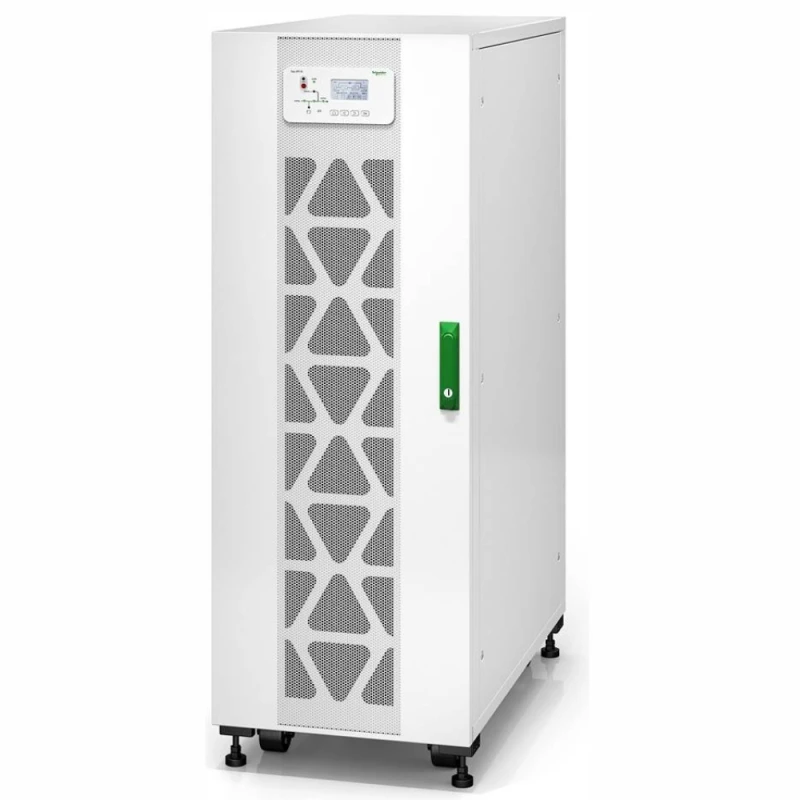

The APC Easy UPS 3S E3SUPS40KHB2 delivers 40 kVA/40 kW power with 400 V 3-phase input and output. It includes four internal modular 7 Ah VRLA battery strings, handles up to 73 A input current, and supports input frequency of 45–65 Hz. Designed for large-scale data centers and critical infrastructure, it offers robust protection with optional runtime expansion, LED display, and high reliability under demanding conditions.
Easy UPS 3S is easy to install and start up
Parallel up to 4 UPSs for capacity or redundancy
Extended runtime options available
EcoStruxure IT: Enables resilient, secure, and sustainable IT environments
| Weight: | 645.00 kg |
| Dimensions: | 140 x 50 x 96 cm |
|

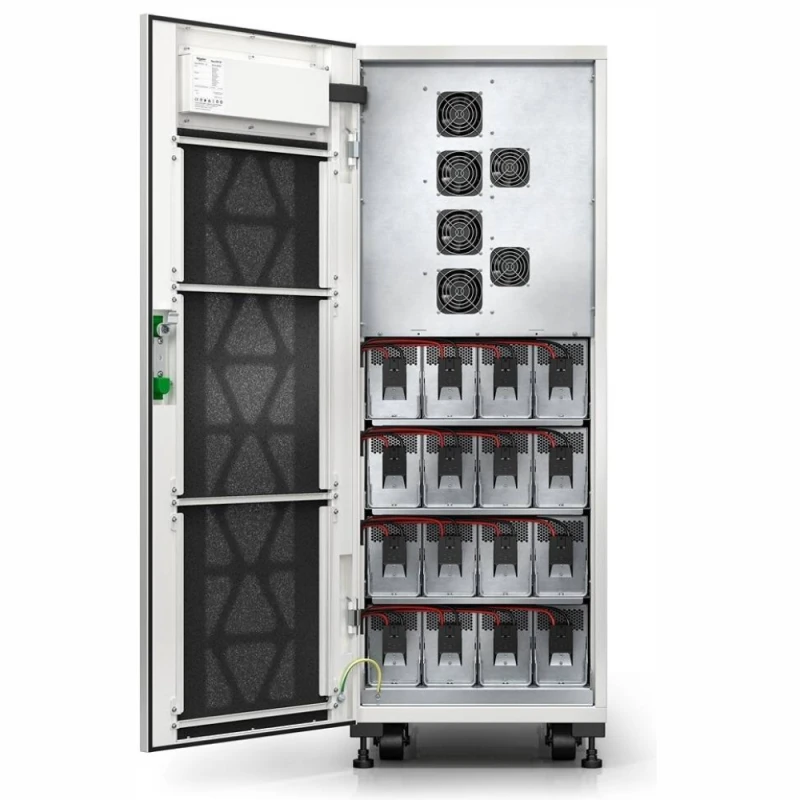

Overview Presentation Easy-to-install, easy-to-operate, easy-to-maintain, and easy-to-service 40 kVA, 400V 3-phase UPS. With advanced product features, competitive specifications, and robust electrical design, the Easy UPS 3S UPS makes business continuity easy for small and medium data centers and electrical rooms. Includes dust filter and conformance-coated boards for harsh environments, and 4 internal 7Ah modular battery strings. Main Main Input Voltage 400 V 3 phases Other Input Voltage 380 V 415 V Main Output Voltage 400 V 3 phases Other Output Voltage 380 V 415 V rated power in W 40 kW Rated power in VA 40 kVA Provided equipment Dust filter Installation guide Batteries & Runtime Efficiency View Efficiency Graph action_new_window Battery type VRLA Battery voltage 240 V Maximum short-circuit current 10 kA Number of battery filled slots 4 Number of battery free slots 0 Physical Colour White (RAL 9003) Height 140 cm Width 50 cm Depth 96.9 cm Product weight 590 kg USB compatible Yes Input Maximum input current 73 A Input harmonic distortion Less than 3 % for full load Load power factor 0.9 leading to 0.9 lagging Input Power Factor at Full Load 0.99 Input voltage limits 304...477 V Network frequency 45...65 Hz Output Maximum configurable power in VA 40 kVA Maximum configurable power in W 40 kW Output frequency 50 Hz sync to mains 60 Hz sync to mains Harmonic distortion Less than 3 % Output harmonic distortion < 3% linear load Output voltage tolerance +/- 1.5 % UPS type Double conversion online Additional information UPS weight does not include battery weight. Conformance Product certifications CE EAC RCM Environmental Ambient air temperature for operation 0…40 °C Relative humidity 0…95 % non-condensing Operating altitude 0...3333 ft Ambient air temperature for storage -15…40 °C Storage Relative Humidity 0…5 % non-condensing Storage altitude 0.00…15240.00 m Acoustic level 63 dBA Heat dissipation 1880 Btu/h IP degree of protection IP20 Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 164 cm Package 1 Width 111.4 cm Package 1 Length 68.3 cm Package 1 Weight 643 kg |
