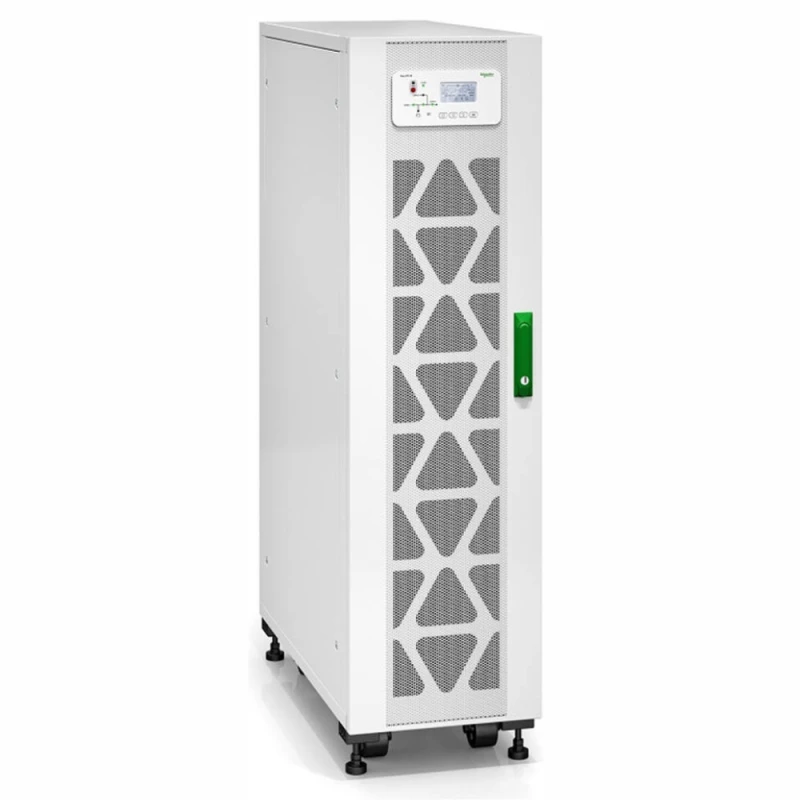

APC Easy UPS 3S E3SUPS15KHB2, 15 kVA, 400 V, 3-Phase, 2 Internal Battery Modules (Expandable to 3), 28A Input Current, VRLA Battery, Extended Runtime Options, White

Main Input Voltage

400 V 3 phases

Product or component type

Uninterruptible power supply (UPS)

Other Input Voltage

380 V

415 V

Main Output Voltage

400 V 3 phases

Other Output Voltage

380 V

415 V

Rated power in W

15 kW

Rated power in VA

15 kVA

Provided equipment

Dust filter

Installation guide

Range of product

Easy UPS 3S

Batteries & Runtime

Efficiency

View Efficiency Graph

Battery type

VRLA

Battery voltage

240 V

Maximum short-circuit current

10 kA

Number of battery filled slots

2

Number of battery free slots

1

Physical

Colour

White (RAL 9003)

Height

140 cm

Width

38 cm

Depth

92.8 cm

Product weight

436 kg

USB compatible

Yes

Input

Maximum input current

28 A

Input harmonic distortion

Less than 3 % for full load

Load power factor

0.9 leading to 0.9 lagging

Input Power Factor at Full Load

0.99

Input voltage limits

304...477 V

Network frequency

45...65 Hz

Output

Maximum configurable power in VA

15 kVA

Maximum configurable power in W

15 kW

Output frequency

50 Hz sync to mains

60 Hz sync to mains

Harmonic distortion

Less than 3 %

Output harmonic distortion

< 3% linear load

Output voltage tolerance

+/- 1.5 %

UPS type

Double conversion online

Additional information

UPS weight does not include battery weight.

Conformance

Product certifications

CE

EAC

RCM

Environmental

Ambient air temperature for operation

0…40 °C

Relative humidity

0…95 % non-condensing

Operating altitude

0...3333 ft

Ambient air temperature for storage

-15…40 °C

Storage Relative Humidity

0…95 % non-condensing

Storage altitude

0.0000000000…15240.0000000000 m

Acoustic level

60 dBA

Heat dissipation

852 W

IP degree of protection

IP20

Packing Units

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

164 cm

Package 1 Width

101.4 cm

Package 1 Length

56.3 cm

Package 1 Weight

481 kg

Contractual warranty

Warranty

1 year on-site repair or replace with factory authorized Start-Up
