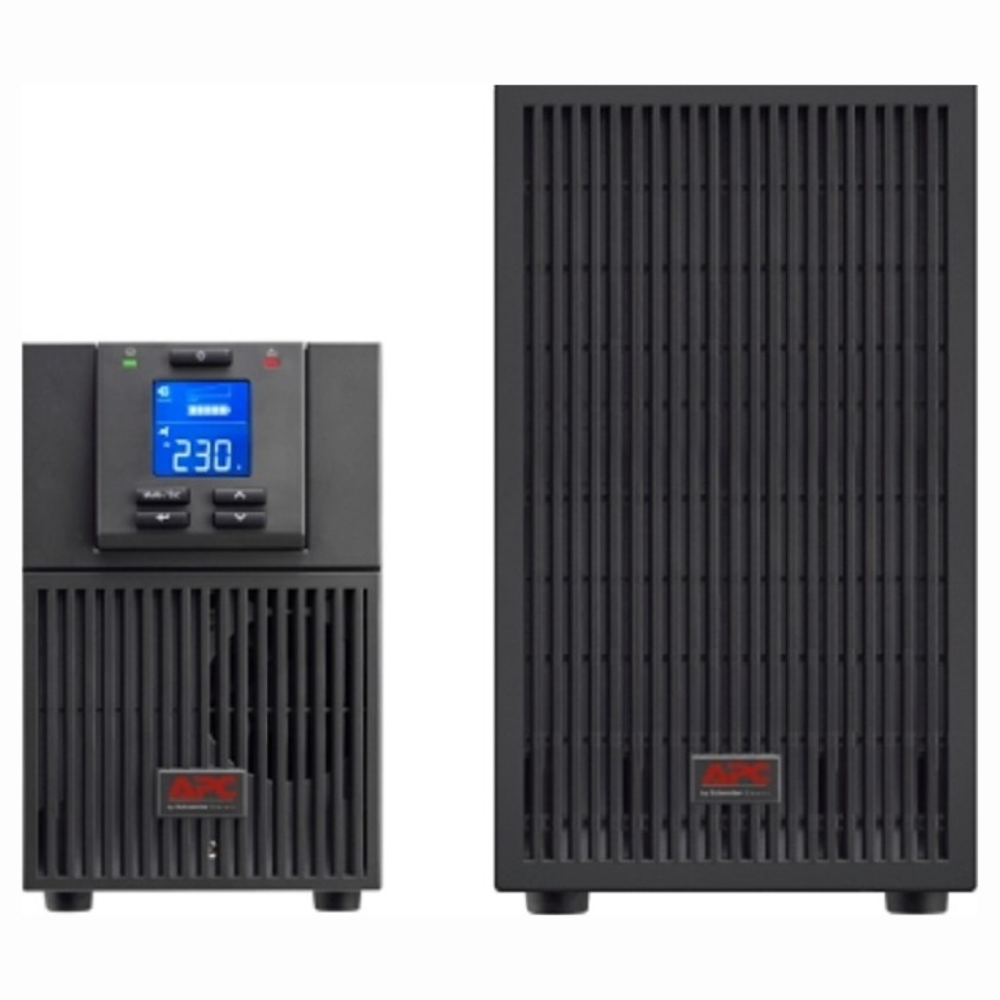

APC Easy UPS SRV2KIL, 2000VA/1600W, 230V, Online, Tower, External Battery Pack, Black

Main Input Voltage

230 V

Product or component type

Uninterruptible power supply (UPS)

Other Input Voltage

220 V

240 V

Main Output Voltage

230 V

Other Output Voltage

220 V

240 V

Rated power in W

1600 W

Rated power in VA

2000 VA

Input Connection Type

IEC 60320 C14

output connection type

4 IEC 60320 C13

Cable length

1.5 m

Number of cables

1

Provided equipment

1 IEC 60320 C13 to Schuko power cable

1 IEC 60320 C13 to C14 power cable

1 USB cable

1 RS-232 configuration cable

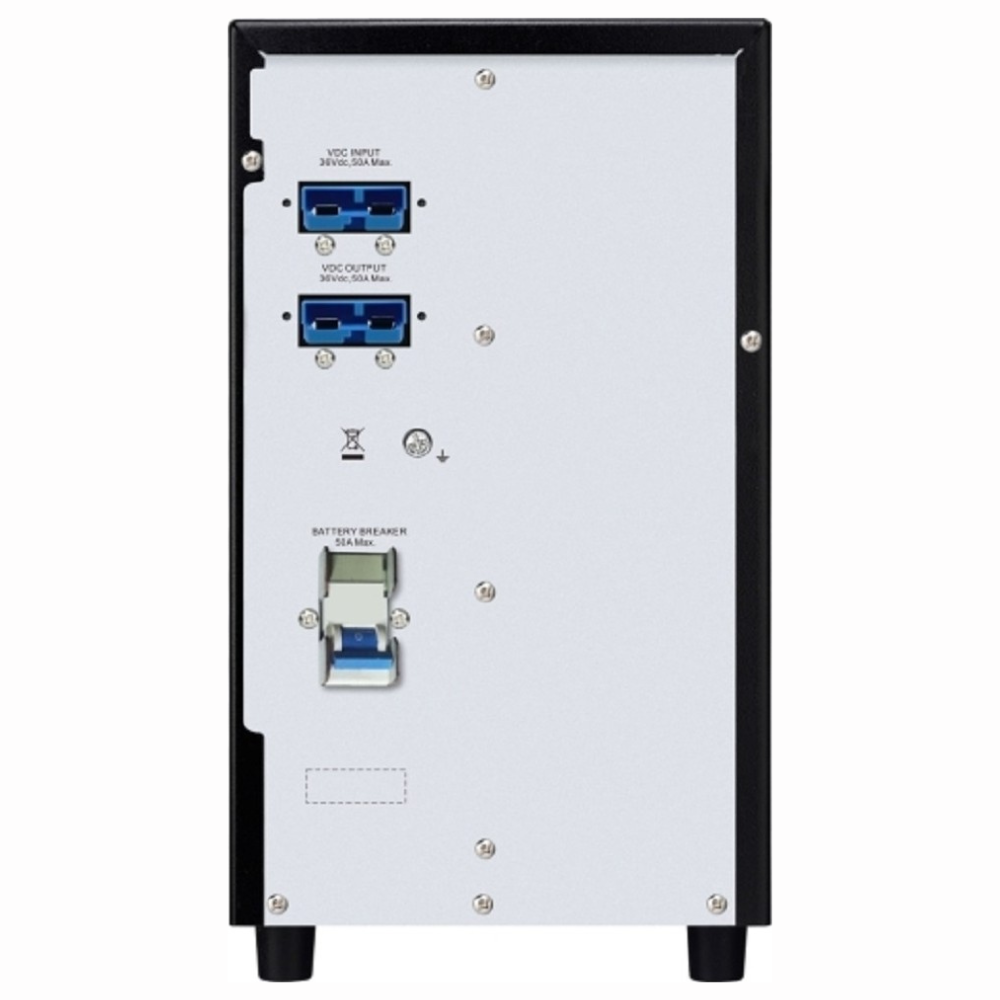

1 external battery pack

1 battery cable

user manual

Range of product

Easy UPS On-Line

Batteries & Runtime

Run Time

View Runtime Graph

Efficiency

View Efficiency Graph

Battery type

Lead-acid battery

Battery voltage

72 V

Extended runtime

1

Number of battery filled slots

0

Number of battery free slots

0

Battery recharge time

5.5 h

Battery life

3…5 year(s)

Battery charger power

350 W rated

General

Number of power module filled slots

0

Number of power module free slots

0

Redundant

No

Physical

Colour

Black (RAL 7010)

Height

33.6 cm

Width

33.5 cm

Depth

42.5 cm

Product weight

45.4 kg

Mounting location

Front

Mounting preference

No preference

Mounting mode

Not rack-mountable

USB compatible

Yes

Mounting position

Vertical

Input

Input voltage limits

110...285 V half load

160...280 V full load

Network frequency

40...70 Hz auto sensing

Output

Maximum configurable power in VA

2000 VA

Maximum configurable power in W

1600 W

Output frequency

50/60 Hz +/- 3 Hz sync to mains

Harmonic distortion

3 %

UPS type

Double conversion online

Wave type

Sine wave

Efficiency

88 % (full load)

Additional information

Configurable for 220 : 230 or 240 nominal output voltage

Bypass type

Internal bypass (automatic and manual)

Crest factor

3 : 1

Conformance

Product certifications

CE

UKCA

EAC

TISI

Standards

EN/IEC 62040-1:2019/A11:2021

EN/IEC 62040-2:2006/AC:2006

EN/IEC 62040-2:2018

Environmental

Ambient air temperature for operation

0…40 °C

Relative humidity

0…95 % non-condensing

Operating altitude

0...3000 m

Ambient air temperature for storage

-20…50 °C

Storage Relative Humidity

0…95 % non-condensing

Storage altitude

0…15000 m

Acoustic level

50 dBA

Heat dissipation

745 Btu/h

IP degree of protection

IP20

Communications & Management

Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Free slots

1

control panel

Multifunction LCD status and control console

Surge Protection and Filtering

Surge energy rate

600 J

Packing Units

Unit Type of Package 1

PCE

Number of Units in Package 1

2

Package 1 Height

46.5 cm

Package 1 Width

56 cm

Package 1 Length

56.5 cm

Package 1 Weight

49.3 kg

Contractual warranty

Warranty

2 years repair or replace
