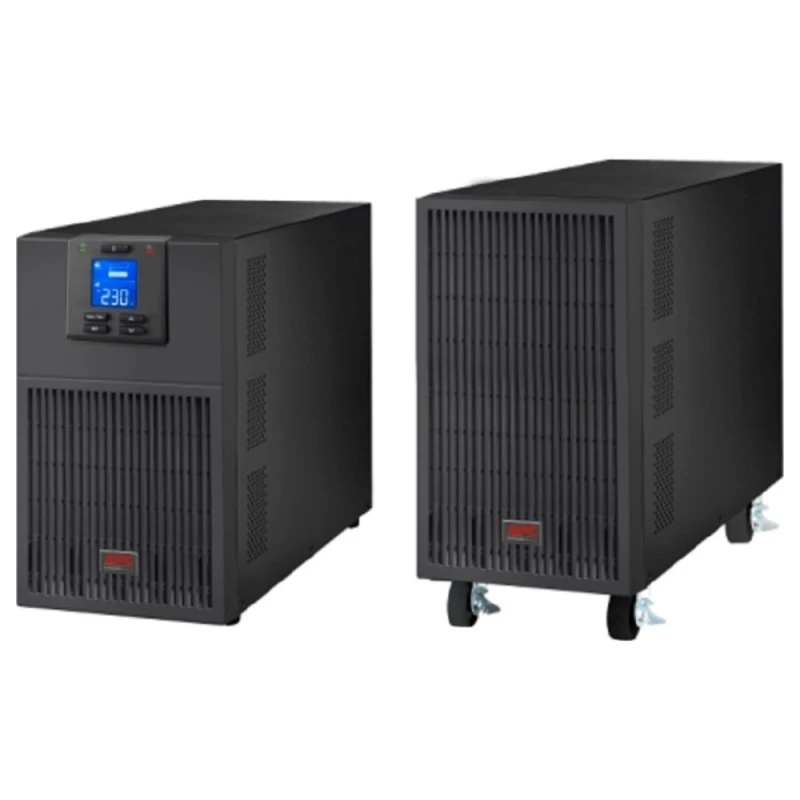

APC SRVS 10000VA Easy UPS, With External Battery Pack, 230V Input Voltage, 40-70 Hz Auto Sensing Frequency, 10000W Rated Power | SRV10KIL

Overview

Presentation

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

Lead time

Usually in Stock

Main

Run time for load

W

information_stroke

Min-max: 1000-10000 W

2min 32s

Max. Capacity Used

information_stroke

100 %

Main Input Voltage

230 V

Product or component type

Uninterruptible power supply (UPS)

Other Input Voltage

220 V

240 V

Main Output Voltage

230 V

Other Output Voltage

220 V

240 V

Rated power in W

10000 W

rated power in VA

10000 VA

Output connector type

Hard wire 3-wire (1P + N + E) 1

Provided equipment

1 USB cable

1 RS-232 configuration cable

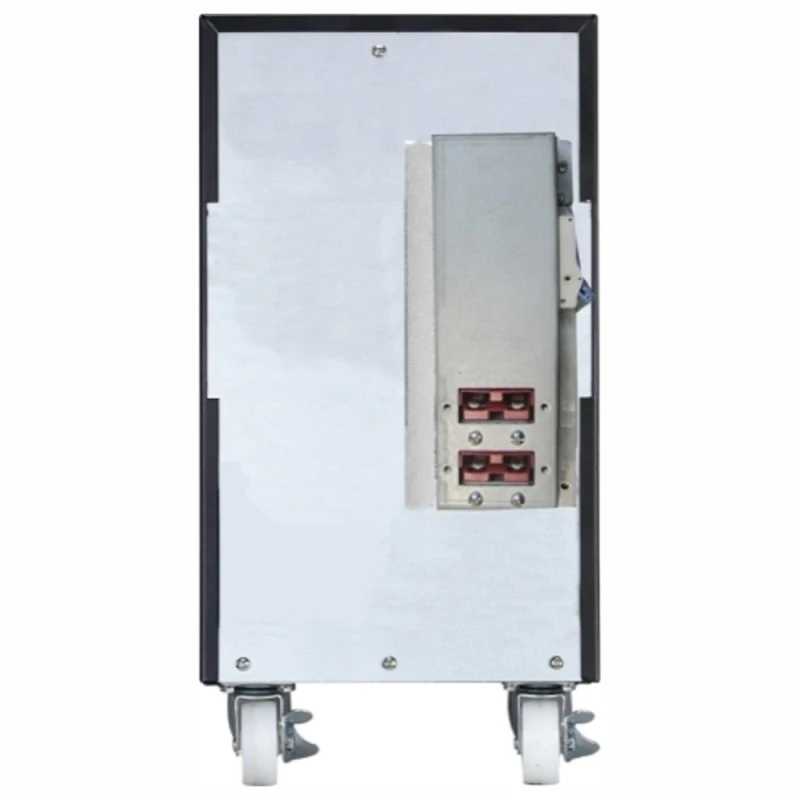

1 external battery pack

1 battery cable

user manual

Range of product

Easy UPS On-Line

Batteries & Runtime

Run Time

Efficiency

Battery type

Lead-acid battery

Battery voltage

240 V

Extended runtime

1

Number of battery filled slots

0

Number of battery free slots

0

Battery recharge time

5 h

Battery life

3…5 year(s)

Battery charger power

1170 W rated

General

Number of power module filled slots

0

Number of power module free slots

0

Redundant

No

Physical

Colour

Black (RAL 7010)

Height

36.8 cm

Width

38 cm

Depth

48.5 cm

Net weight

76.5 kg

Mounting location

Front

Mounting preference

No preference

Mounting mode

Not rack-mountable

USB compatible

Yes

Mounting position

Vertical

Input

Input voltage limits

110...300 V 60 % load

176...300 V full load

Number of input connectors

1 hard wire 3-wire (1P + N + E)

Network frequency

40...70 Hz auto sensing

Output

Maximum configurable power in VA

10000 VA

Maximum configurable power in W

10000 W

Output frequency

50/60 Hz +/- 3 Hz sync to mains

Harmonic distortion

1 %

UPS type

Double conversion online

Wave type

Sine wave

Efficiency

94 % (full load)

Additional information

Configurable for 220 : 230 or 240 nominal output voltage

Bypass type

Internal bypass (automatic and manual)

Crest factor

3 : 1

Conformance

Product certifications

CE

UKCA

EAC

TISI

Standards

EN/IEC 62040-1:2019/A11:2021

EN/IEC 62040-2:2006/AC:2006

EN/IEC 62040-2:2018

Environmental

Ambient air temperature for operation

0…40 °C

Relative humidity

0…95 % non-condensing

Operating altitude

0...3000 m

Ambient air temperature for storage

-15…60 °C

Storage Relative Humidity

0…95 % non-condensing

Storage altitude

0…15000 m

Acoustic level

58 dB

Heat dissipation

2128 Btu/h

IP degree of protection

IP20

Communications & Management

Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Emergency power off

Yes

Free slots

1

control panel

Multifunction LCD status and control console

Surge Protection and Filtering

Surge energy rate

600 J

Packing Units

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

46 cm

Package 1 Width

57 cm

Package 1 Length

58 cm

Package 1 Weight

82.5 kg
