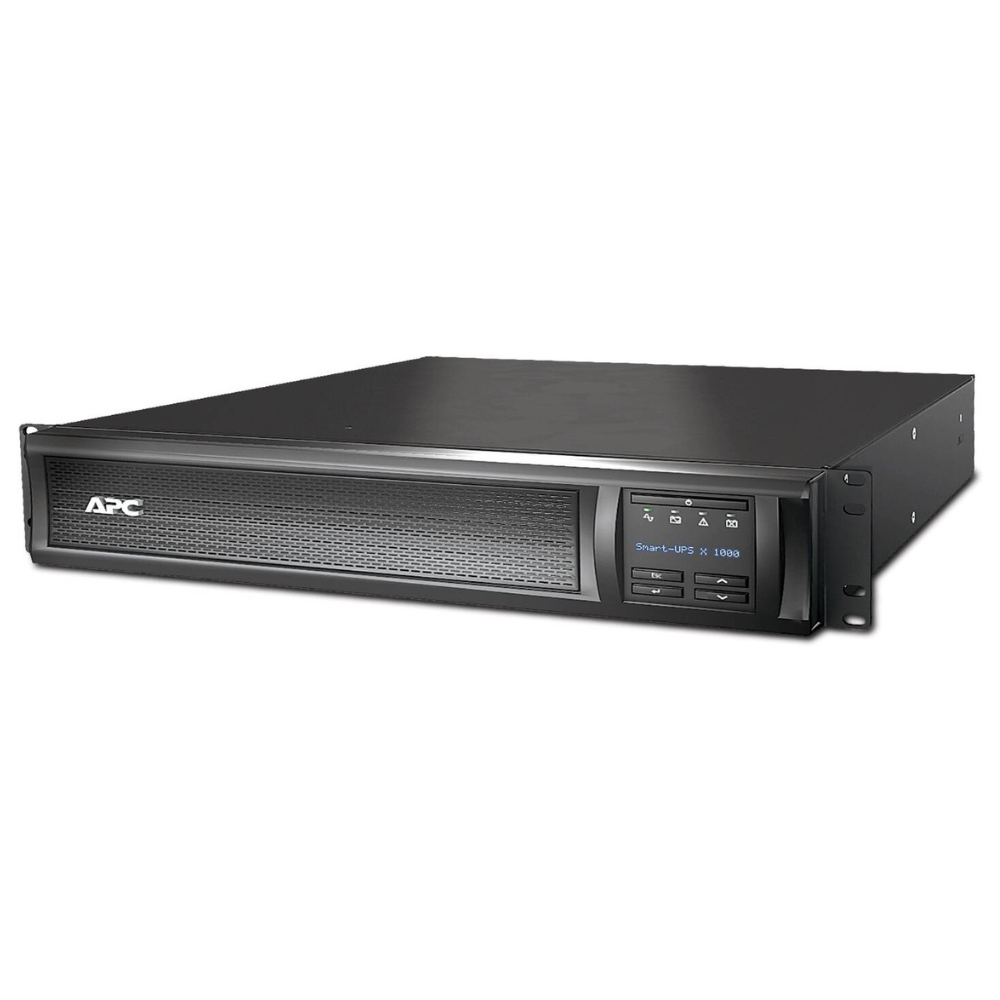

APC SMX1000I Smart-UPS X, 1000VA/800W, 230V, Line-Interactive, Pure Sine Wave, 2U Rack/Tower
APC

APC SMX1000I Smart-UPS X, 1000VA/800W, 230V, Line-Interactive, Pure Sine Wave, 2U Rack/Tower

SKU: 5943 Model: Smart UPS X Line Interactive 1000VA
AED3,070.00
In stock
  • Free delivery by Tomorrow, Fri, Oct 30
  • Bank transfer payment
  • 1 Year warranty
  • Free returns
Questions? Ask us on WhatsApp

The APC SMX1000I Smart-UPS X is a high-performance 1000VA/800W UPS featuring Line-Interactive technology and a pure sine wave output. With 230V input, it ensures stable power delivery and safeguards critical equipment from voltage fluctuations, surges, and outages. The versatile 2U form factor allows both rack and tower installation, making it ideal for IT environments, network closets, and small data centers. Expandable runtime options and SmartSlot support for network management cards make this UPS a scalable and intelligent power protection solution.


1000VA/800W line interactive pure sine wave 2U rack/tower UPS (rail kit SU032A sold separately)


Add up to 5 external battery packs (SMX48RMBP2U)


Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown


Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels


Ideal for servers, storage, networking & commercial applications

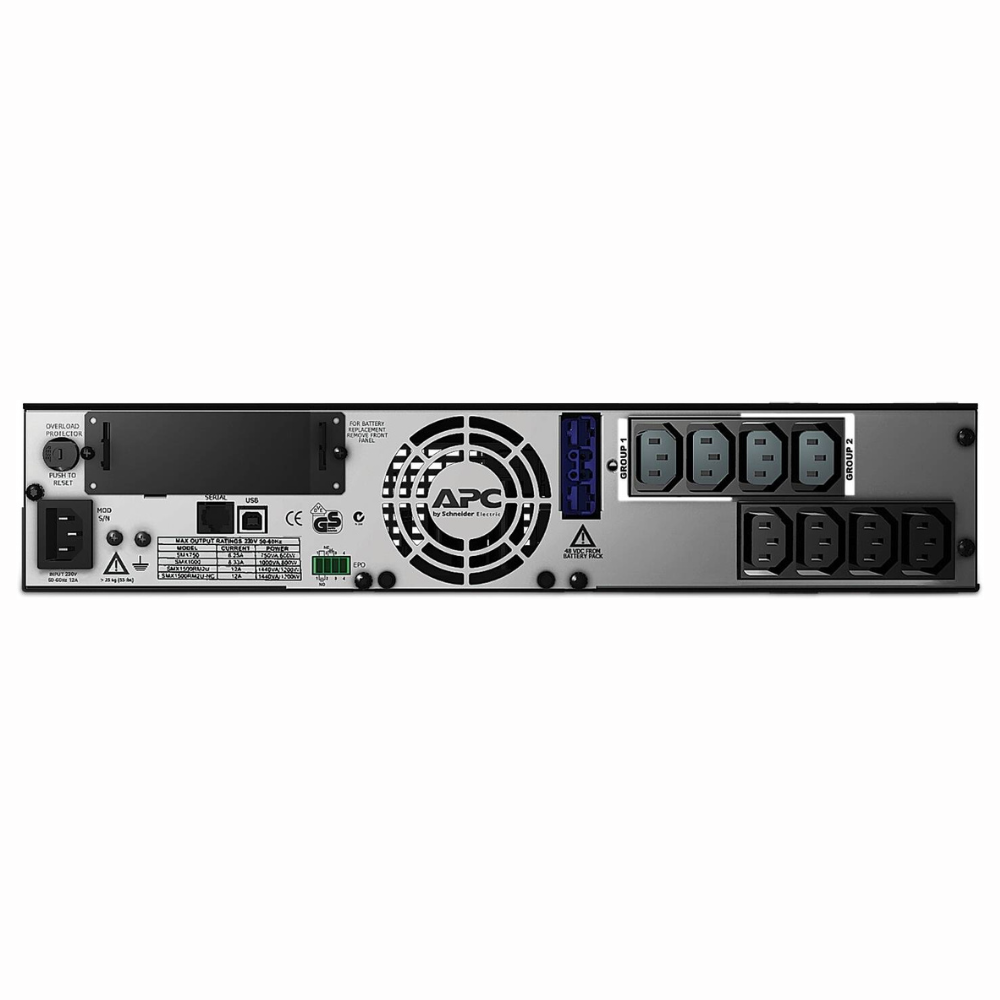

This product is part of the Smart-UPS range, an intelligent and efficient network power protection offer from entry-level to scalable runtime. This 1000VA/800W premium and reliable line-interactive UPS provides pure sine wave and scalable runtime for critical applications. The 2U rack/tower convertible SMX has an optional Network Management Card for network-based monitoring and PowerChute Business Edition for unattended shutdown. The UPS comes with extendable batteries (up to 10) for more runtime during prolonged outages. It comes with IEC 320 C14 input, 8x IEC 320 C13 outlets, and 2x IEC jumper cables. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. Its dimensions are 490mm (depth) x 89mm (height) x 432mm (width) and weighs 22.86kg. Ideal for server rooms, network closets, business VoIP, data storage, and network-attached storage (NAS) and small datacenters. It conforms to CE, VDE, EAC, RCM, and EN/IEC 62040-1/62040-2.

BrandAPC
ModelSmart UPS X Line Interactive 1000VA
Part numberSMX1000I
SKU5943
Warranty1 Year
Weight27.32 kg
Dimensions62 x 59 x 24.60 cm

Product or component type

Uninterruptible power supply (UPS)

Complementary

Communication port type

SmartSlot

Batteries & Runtime

Run Time


View Runtime Graph

Efficiency


View Efficiency Graph

Battery type

Lead-acid battery

Extended runtime

0

Number of battery filled slots

0

Number of battery free slots

0

Battery recharge time

3 h

Number of battery replacement quantity

1

Overcurrent protection

60 A

Battery life

3…5 year(s)

Replacement battery


APCRBC116


Battery charger power

99 W rated

General

Provided equipment

CD with software

Documentation CD

Installation guide

Rack mounting brackets

Removable support feet

Smart UPS signalling RS-232 cable

USB cable

Number of power module

0

Number of power module filled slots

0

Number of power module free slots

0

product web sub-family

Extended run

Redundant

No

Physical

Number of rack unit

2U

Cable length

1.8 m

Number of cables

1

Colour

Black

Height

8.9 cm

Width

43.2 cm

Depth

49 cm

Product weight

22.86 kg

Mounting preference

Lower

Mounting mode

Rack-mounted with kit

Two post mountable

1

USB compatible

No

Input

Main Input Voltage

230 V

Input Connection Type

IEC 320 C14

Input voltage limits

151...302 V adjustable

160...286 V

Network frequency

50/60 Hz +/- 3 Hz auto-sensing

Output

Main Output Voltage

230 V

Rated power in W

800 W

Rated power in VA

1000 VA

output connection type

8 IEC 320 C13

2 IEC Jumpers

Harmonic distortion

Less than 5 %

Maximum configurable power in VA

1000 VA

Maximum configurable power in W

800 W

UPS type

Line interactive

Wave type

Sine wave

Output frequency

50/60 Hz +/- 3 Hz sync to mains

Conformance

Product certifications

CE

CSA

EAC

RCM

UK PSTI

Standards

EN/IEC 62040-1:2019/A11:2021

EN/IEC 62040-2:2006/AC:2006

EN/IEC 62040-2:2018

Environmental

Acoustic level

40 dBA

Heat dissipation

82 Btu/h

Operating altitude

0...10000 ft

Ambient air temperature for operation

0…45 °C

Ambient air temperature for storage

-15…45 °C

Storage altitude

0.0000000000…15240.0000000000 m

Relative humidity

0…95 %

Storage Relative Humidity

0…95 %

Communications & Management

control panel

Multifunction LCD status and control console

Emergency power off

Yes

Free slots

1

Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

Surge energy rate

600 J

Noise suppression

Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449

Packing Units

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

26.000 cm

Package 1 Width

59.000 cm

Package 1 Length

63.000 cm

Package 1 Weight

25.094 kg

Unit Type of Package 2

P12

Number of Units in Package 2

2

Package 2 Height

90.000 cm

Package 2 Width

80.000 cm

Package 2 Length

120.000 cm

Package 2 Weight

62.188 kg

Contractual warranty

Warranty

3 years repair or replace (excluding battery) and 2 years for battery
