Columbus
3,199.00
Inclusive of VAT
Sold By: PC7
Availability: In Stock
Condition: New
Delivery To: Columbus
Free Delivery
Delivered by: Delivery not available in United States
| Weight: | 20.70 kg |
| Dimensions: | 70 x 55 x 21.80 cm |
|

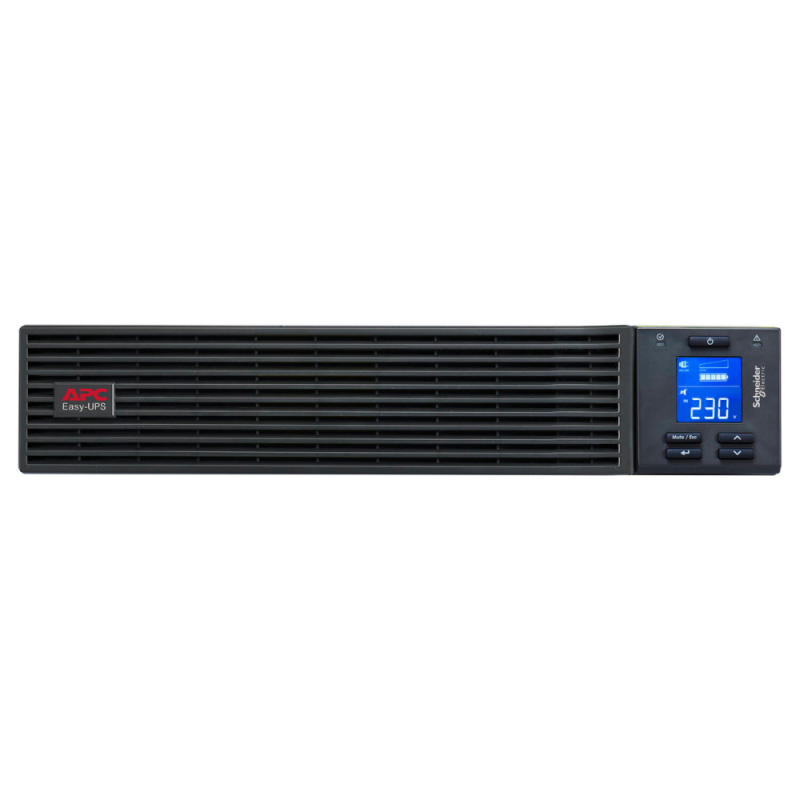

Main Input Voltage 230 V Product or component type Uninterruptible power supply (UPS) Other Input Voltage 220 V 240 V Main Output Voltage 230 V Other Output Voltage 220 V 240 V Rated power in W 1600 W Rated power in VA 2000 VA Input Connection Type IEC 60320 C14 output connection type 4 IEC 60320 C13 Number of rack unit 2U Cable length 1.50 m Number of cables 1 Provided equipment 1 IEC 60320 C13 to Schuko power cable 1 IEC 60320 C13 to C14 power cable 1 USB cable 1 RS-232 configuration cable 1 rack mounting brackets 1 user manual Range of product Easy UPS On-Line Batteries & Runtime Run Time View Runtime Graph Efficiency View Efficiency Graph Battery type Lead-acid battery Battery voltage 48 V Extended runtime 0 Number of battery filled slots 0 Number of battery free slots 0 Battery recharge time 4 h Battery life 3…5 year(s) Replacement battery APCRBCV201 Battery charger power 70 W rated General Max runtime 4 min Number of power module filled slots 0 Number of power module free slots 0 Redundant No Physical Colour Black (RAL 7010) Height 8.6 cm Width 43.7 cm Depth 46.2 cm Product weight 18.2 kg Mounting location Front Mounting preference Lower Mounting mode Rack-mounted with kit USB compatible Yes Mounting position Horizontal Input Input voltage limits 110...285 V half load 160...280 V full load Network frequency 40...70 Hz auto sensing Output Maximum configurable power in VA 2000 VA Maximum configurable power in W 1600 W Output frequency 50/60 Hz +/- 3 Hz sync to mains Harmonic distortion 3 % UPS type Double conversion online Wave type Sine wave Efficiency 88 % (full load) Additional information Configurable for 220 : 230 or 240 nominal output voltage Bypass type Internal bypass (automatic and manual) Crest factor 3 : 1 Conformance Product certifications CE EAC TISI Standards EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 Environmental Ambient air temperature for operation 0…40 °C Relative humidity 0…95 % non-condensing Operating altitude 0...3000 m Ambient air temperature for storage -20…50 °C Storage Relative Humidity 0…95 % non-condensing Storage altitude 0…15000 m Acoustic level 50 dBA Heat dissipation 745 Btu/h IP degree of protection IP20 Communications & Management Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm Free slots 1 control panel Multifunction LCD status and control console Surge Protection and Filtering Surge energy rate 600 J Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 21.8 cm Package 1 Width 70 cm Package 1 Length 55 cm Package 1 Weight 20.7 kg Contractual warranty Warranty 2 years repair or replace |
3,199.00
No reviews yet for this product.
