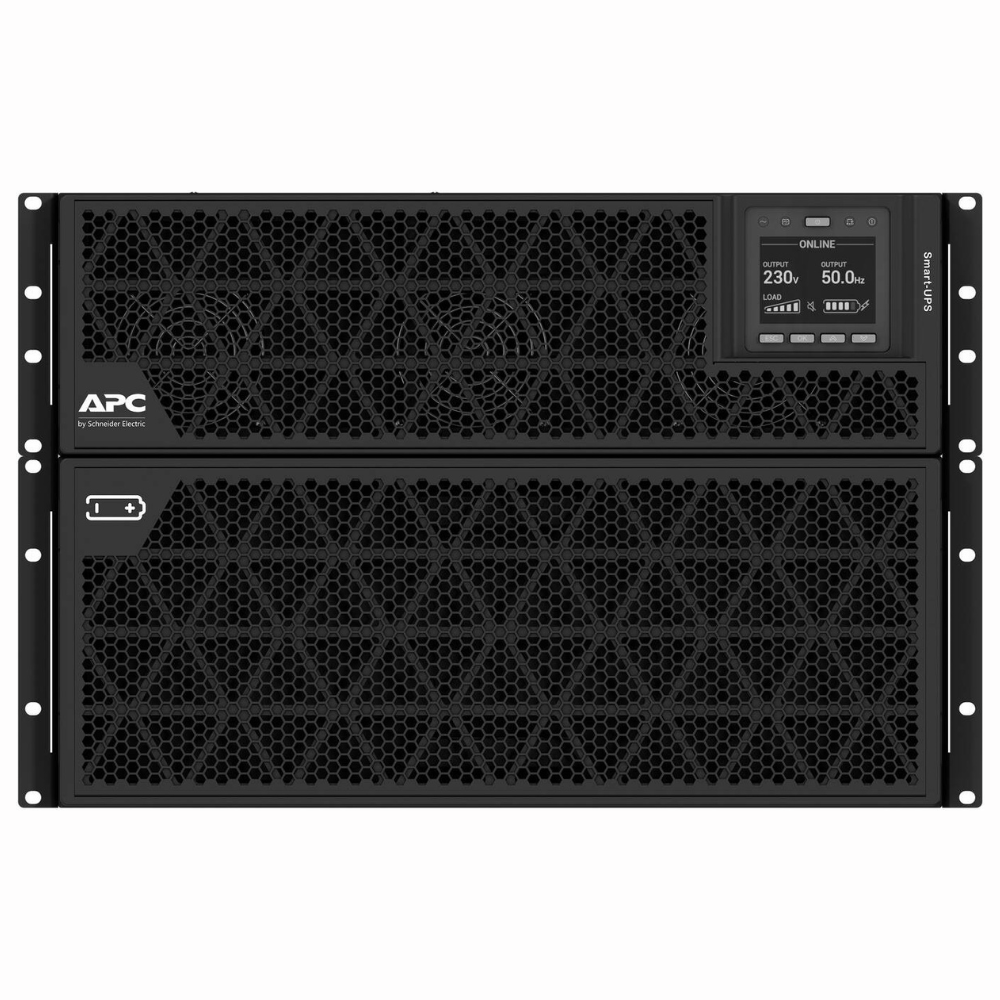

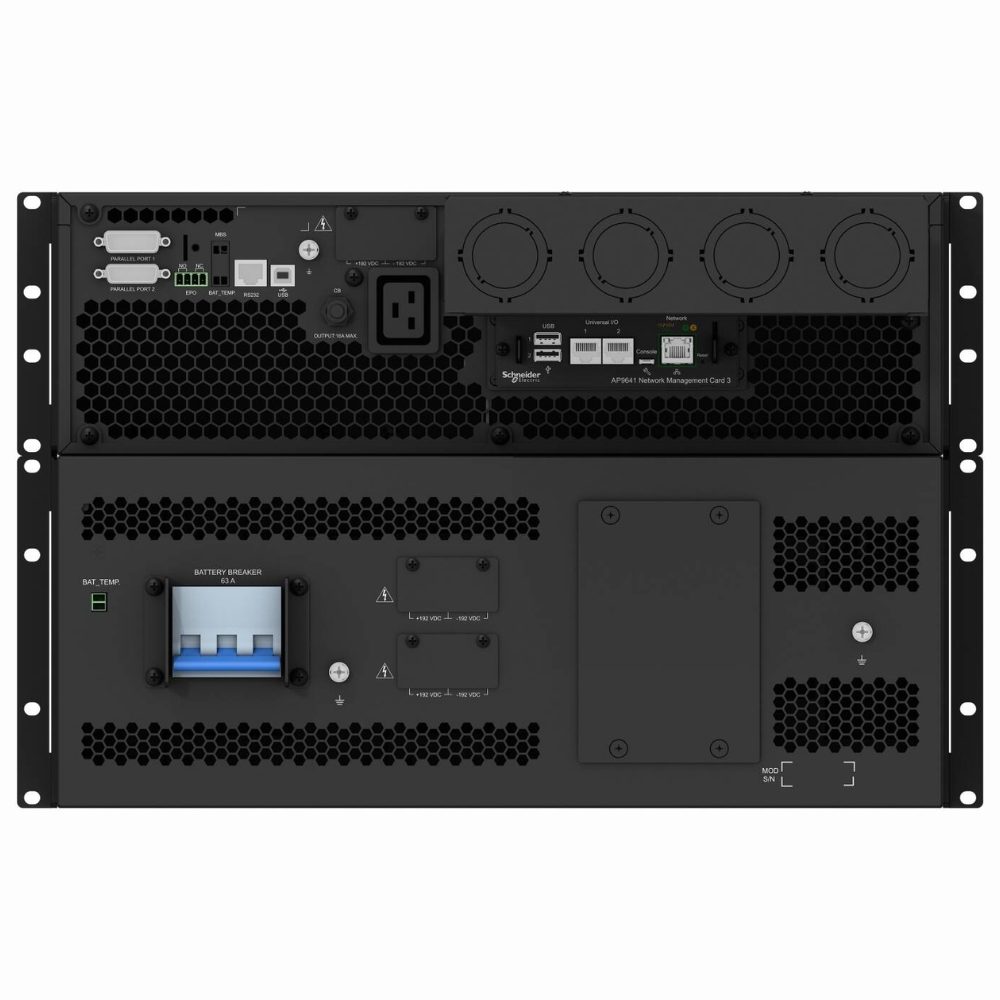

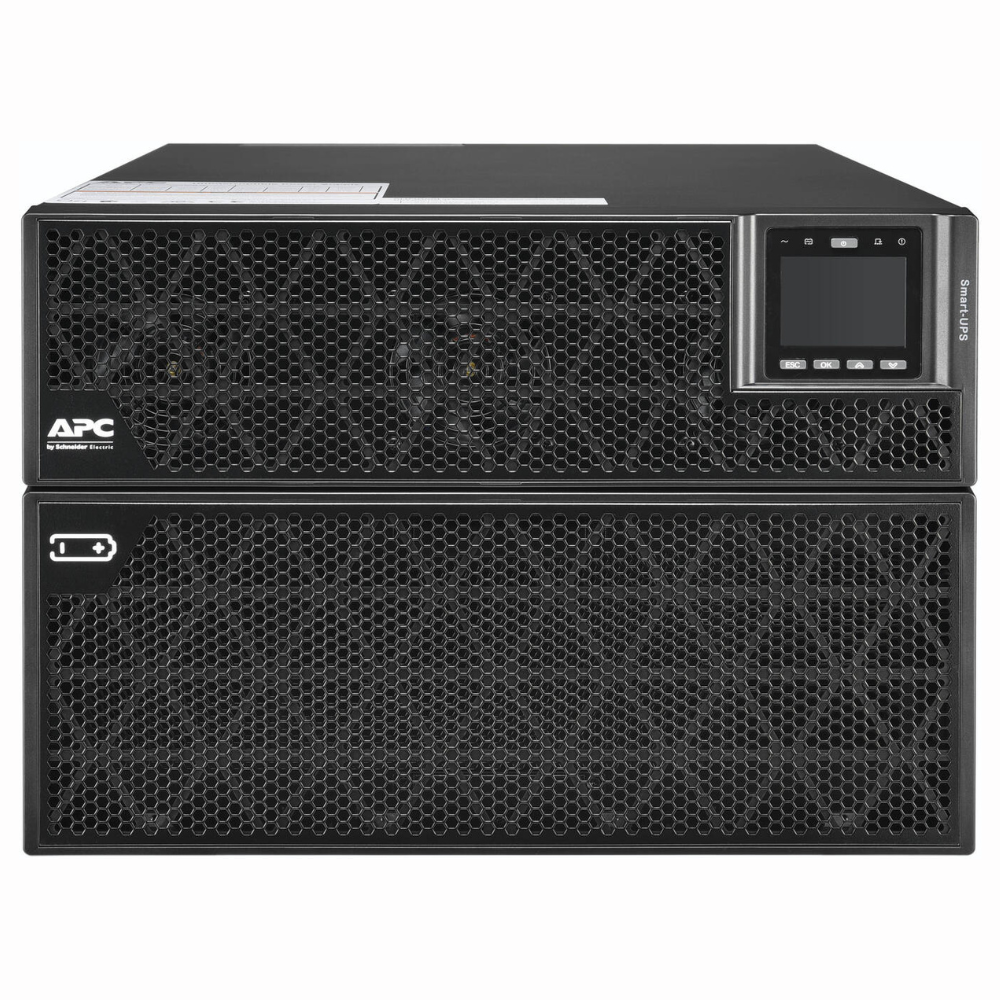

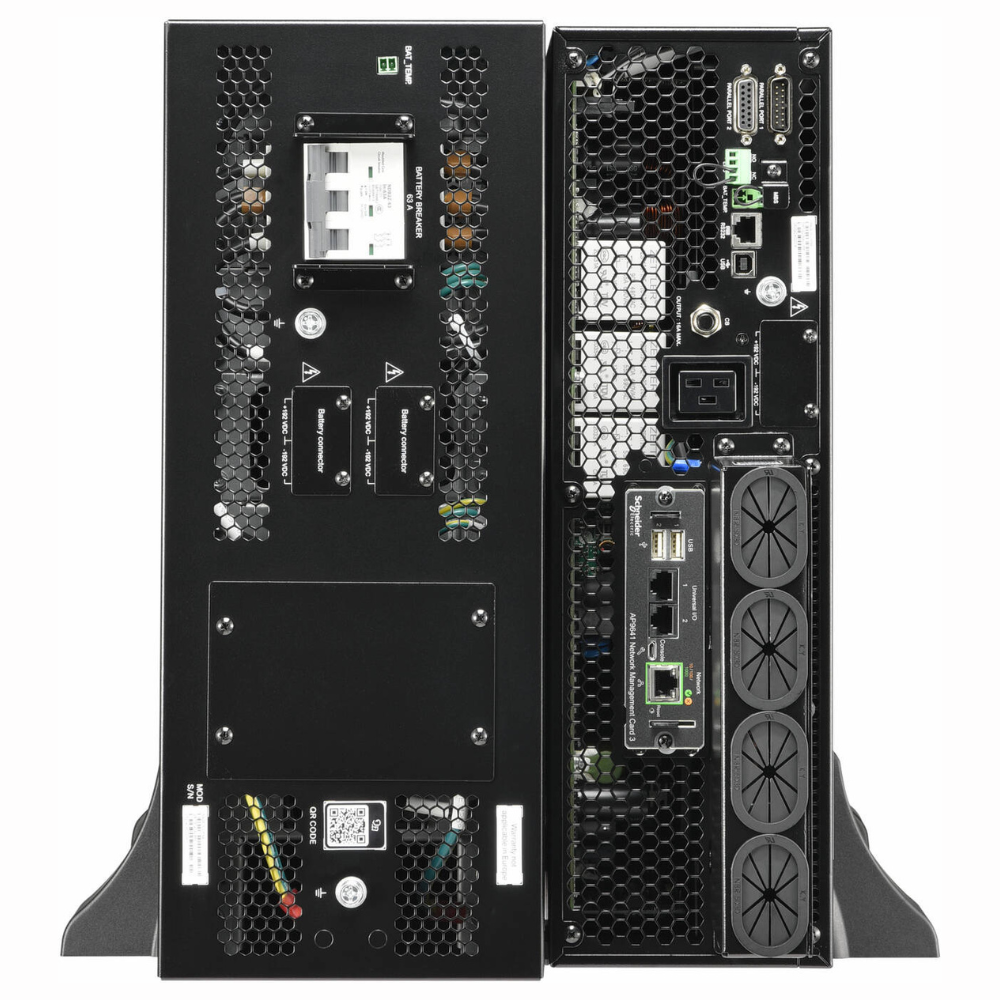

APC SRTG20KXLI Smart-UPS RT, 20kVA/20kW, 230V/380-415V, Rack/Tower, On-Line UPS, Hardwired Input
APC

APC SRTG20KXLI Smart-UPS RT, 20kVA/20kW, 230V/380-415V, Rack/Tower, On-Line UPS, Hardwired Input

SKU: 6965 Model: APC Smart UPS On Line 20kVA
AED40,940.00
In stock
  • Free delivery by Tomorrow, Fri, Oct 30
  • Bank transfer payment
  • 1 Year warranty
  • Free returns
Questions? Ask us on WhatsApp

The APC SRTG20KXLI Smart-UPS RT provides robust 20kVA/20kW power capacity with flexible input voltage ranging from 230V to 380-415V. Featuring double-conversion On-Line UPS technology, this unit ensures continuous, clean, and reliable power for critical IT infrastructure. Designed for rackmount or tower installation, it supports hardwired input connections (5-wire 3P+N+E and 3-wire 1P+N+E) to accommodate various power distribution systems. Equipped with a network management card and multiple communication interfaces (RS232, RJ45, USB-B), it offers advanced monitoring and control capabilities. Ideal for data centers, enterprise servers, and other mission-critical applications requiring maximum uptime and power quality.


Double Conversion Online UPS: Provides high-density, true double-conversion online power protection for critical applications, ensuring clean and uninterrupted power.

Scalable Runtime: Capable of supporting loads from 15 - 20kVA with the option to configure multiple battery packs for extended runtime needs.

High Efficiency: Achieves up to 94% efficiency, reducing energy consumption and operational costs.

Flexible Input and Output Voltage: Supports a range of input voltages (380-415 V 3 phases, 230 V) and output voltages (380-415 V 3 phases, 230 V 1 phase), making it adaptable to various power environments.

Advanced Battery Management: Features a lead-acid battery with a typical recharge time of 4 hours and a lifespan of 3-5 years, ensuring reliable battery performance.

Comprehensive Monitoring and Management: Includes a network management card for environmental monitoring, USB connectivity, and alarms for critical events such as battery status and overload.

Compact, efficient and flexible power protection for business applications.


Ideal for a range of applications, from network and server rooms to branch offices and secure power uses, the new APC Smart-UPS RT On-Line provides high-density, double-conversion online power protection, scalable runtime, and affordability without sacrificing quality.

Smart-UPS On-Line is capable of supporting loads from 15 - 20kVA in a flexible, compact rack/tower convertible form. When business systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with multiple battery packs to meet aggressive runtime demands.

Smart-UPS RT On-Line is available at a competitive price, providing refreshed features and value to customers with demanding power conditions.

That’s Certainty in a Connected World.


BrandAPC
ModelAPC Smart UPS On Line 20kVA
Part numberSRTG20KXLI
SKU6965
Warranty1 Year
Weight142.50 kg
Dimensions30 x 44 x 70 cm

General

Product or Component Type

Uninterruptible Power Supply (UPS)

UPS Type

Double conversion online

Colour

Black (RAL 9005)

Power

Main Input Voltage

380...415 V 3 phases, 230 V

Other Input Voltages

220...240 V

Main Output Voltage

380...415 V 3 phases, 230 V 1 phase

Other Output Voltages

230 V

Rated Power

20000 W / 20000 VA

Maximum Configurable Power

20000 W / 20000 VA

Run Time

View Runtime Graph

Efficiency

View Efficiency Graph

Batteries & Runtime

Battery Type

Lead-acid battery

Number of Battery Filled Slots

0

Number of Battery Free Slots

0

Battery Recharge Time

4 hours

Number of Battery Replacement Quantity

2

Battery Voltage

+/- 192 V

Battery Charger Power

2160 W rated

Battery Life

3…5 years

Replacement Battery

APCRBC172

Extended Runtime

1

Physical

Height

30.6 cm

Width

44.0 cm

Depth

70.0 cm

Net Weight

142.5 kg

Mounting Location

Front

Mounting Preference

Lower

Mounting Mode

Rack-mounted

Mounting Position

Horizontal

USB Compatible

Yes

Two Post Mountable

No

Number of Rack Units

7U

Input



Network Frequency

40...70 Hz auto-sensing

Number of Input Connectors

1 hard wire 5 wire (3P + N + E), 1 hard wire 3-wire (1P + N + E)

Input Voltage Limits

160...285 V full load

Maximum Input Current

87 A

Switching Current Capacity

125 A

Input Harmonic Distortion

Less than 5 % for full load

Input Current

87 A

Load Power Factor

From 0.9 leading to 1 lagging

Output



Output Connector Type

Hard wire 5 wire (3P + N + E) 1, Hard wire 3-wire (1P + N + E) 1, IEC connector 3-wire (1P + N + E) 1

Maximum Configurable Power

20000 VA / 20000 W

Output Frequency

50/60 Hz +/- 4 Hz sync to mains

Wave Type

Sine wave

Output Overload Operation

60 seconds at 125% and 30 seconds at 150%

Efficiency

94 %

Harmonic Distortion

Less than 5 %

Crest Factor

3:1

Bypass Type

Internal bypass (automatic and manual)

Additional Information

Configurable for 380: 400 or 415 V 3 Phase nominal output voltage

Conformance



Product Certifications

CE, UKCA, TISI

Standards

EN/IEC 62040-1:2019/A11:2021, EN/IEC 60204-2

Environmental



Operating Temperature

0…40 °C

Relative Humidity

0…95 % non-condensing

Operating Altitude

0...3000 m

Storage Temperature

-15…45 °C

Storage Relative Humidity

0…95 % non-condensing

Storage Altitude

0…15000 m

Acoustic Level

58 dBA

Heat Dissipation

3821 Btu/h

IP Degree of Protection

IP20

Communications & Management



Free Slots

0

Preinstalled Device

Network management card 3 with environmental monitoring

Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Emergency Power Off

Yes

Surge Protection and Filtering



Surge Energy Rate

600 J

Noise Suppression

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Packing Units



Unit Type of Package 1

PCE

Number of Units in Package 1

1

Provided Equipment

1 x USB cable, 1 x rack mounting brackets, 1 x stabilization/wall mounting feet, 1 x installation manual, 1 x C13-C14 power cord
