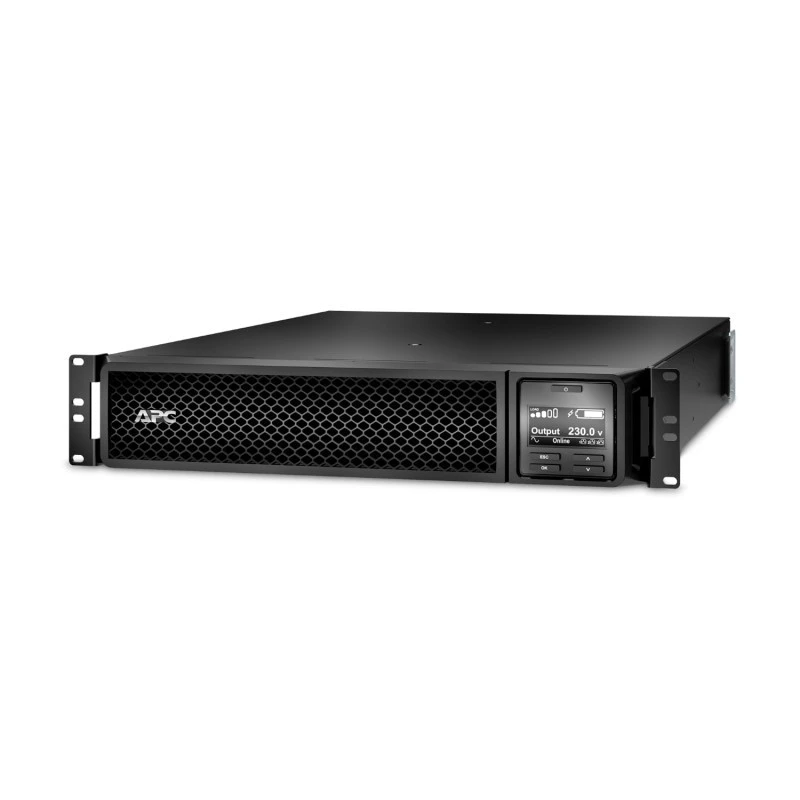

APC Smart-UPS SRT3000RMXLI, 3000VA/2700W, 230V, Online UPS, Pure Sine Wave, Rackmount 2U

Main Input Voltage

230 V

Product or component type

Uninterruptible power supply (UPS)

Other Input Voltage

220 V

240 V

Main Output Voltage

230 V

Other Output Voltage

220 V

240 V

Rated power in W

2700 W

Rated power in VA

3000 VA

Input Connection Type

BS1363A British

IEC 60320 C20

Schuko CEE 7 / EU1-16P

output connection type

8 IEC 60320 C13

2 IEC Jumpers

2 IEC 60320 C19

Number of rack unit

2U

Cable length

2.4 m

Number of cables

1

Provided equipment

CD with software

Documentation CD

Installation guide

Rack mounting brackets

Rack mounting support rails

USB cable

Warranty card

Range of product

Smart-UPS On-Line

Batteries & Runtime

Run Time

View Runtime Graph

Efficiency

View Efficiency Graph

Battery type

Lead-acid battery

Battery voltage

96 V

Extended runtime

1

Number of battery filled slots

1

Battery recharge time

3 h

Number of battery replacement quantity

1

Battery life

3…5 year(s)

Replacement battery

APCRBC152

Battery charger power

168 W rated

General

Number of power module filled slots

0

Number of power module free slots

0

product web sub-family

High density

Redundant

No

UPS type

Double conversion online

Physical

Colour

Black

Height

8.5 cm

Width

43.2 cm

Depth

63.5 cm

Product weight

31.3 kg

Mounting location

Front

Mounting preference

Lower

Mounting mode

Rack-mounted

Two post mountable

0

USB compatible

Yes

Mounting position

Horizontal

Input

Input voltage limits

100...275 V adjustable (half load)

Network frequency

40...70 Hz auto-sensing

Output

Bypass type

Internal bypass (automatic and manual)

Crest factor

3 : 1

Harmonic distortion

Less than 2 %

Maximum configurable power in VA

3000 VA

Maximum configurable power in W

2700 W

Wave type

Sine wave

Output frequency

50/60 Hz +/- 3 Hz sync to mains

Additional information

Configurable for 220 : 230 or 240 nominal output voltage

Conformance

Product certifications

CE

EAC

RCM

VDE

UK PSTI

Marking

CE Mark

Standards

EN/IEC 62040-1:2019/A11:2021

EN/IEC 62040-2:2006/AC:2006

EN/IEC 62040-2:2018

Environmental

Acoustic level

55 dBA

Heat dissipation

703 Btu/h

Operating altitude

0...10000 ft

Ambient air temperature for operation

0…40 °C

Ambient air temperature for storage

-15…45 °C

Storage altitude

0.0000000000…15240.0000000000 m

IP degree of protection

IP20

Relative humidity

0…95 % non-condensing

Storage Relative Humidity

0…95 % non-condensing

Communications & Management

Emergency power off

Yes

Free slots

1

Alarm

Audible and visible alarms : prioritized by severity

Surge Protection and Filtering

Surge energy rate

340 J

Packing Units

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

24.600 cm

Package 1 Width

59.900 cm

Package 1 Length

87.100 cm

Package 1 Weight

39.910 kg

Contractual warranty

Warranty

3 years repair or replace (excluding battery) and 2 years for battery
