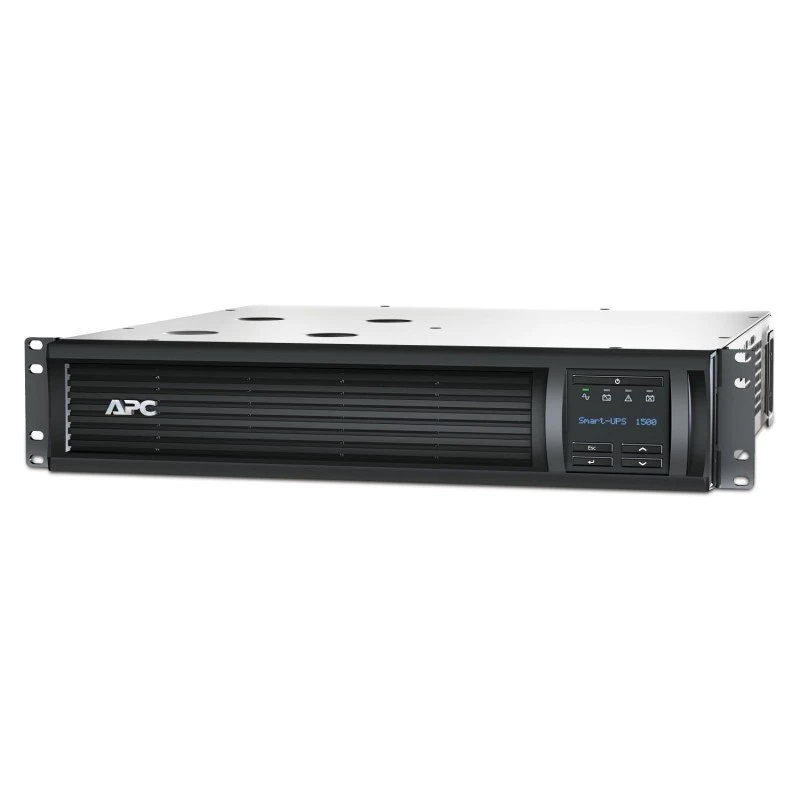

APC Smart-UPS SMT1500RMI2UC – 1500VA Rackmount UPS, 1000W, 2U, Line-Interactive, LCD, AVR, 4x IEC C13, SmartConnect, 230V

Product or component type

Uninterruptible power supply (UPS)

Complementary

Communication port type

SmartConnect Ethernet port

SmartSlot

Software package

SmartConnect software for remote power monitoring feature availability varies by terms of use

Batteries & Runtime

Run Time

View Runtime Graph

Efficiency

View Efficiency Graph

Battery type

Lead-acid battery

Additional information

Configurable for 220 : 230 or 240 nominal output voltage

Extended runtime

0

Number of battery filled slots

0

Number of battery free slots

0

Battery recharge time

3 h

Number of battery replacement quantity

1

Battery life

3…5 year(s)

Replacement battery

APCRBC159

Battery charger power

144 W rated

General

Provided equipment

Installation guide

Rack mounting support rails

USB cable

Number of power module

0

Number of power module filled slots

0

Number of power module free slots

0

product web sub-family

Cloud-enabled monitoring

Redundant

No

Physical

Number of rack unit

2U

Colour

Black

Height

8.6 cm

Width

43.2 cm

Depth

47.7 cm

Product weight

26.1 kg

Mounting location

Front

Mounting preference

Lower

Mounting mode

Rack-mounted

Two post mountable

0

USB compatible

Yes

Input

Main Input Voltage

230 V

Other Input Voltage

220 V

240 V

Input Connection Type

IEC 320 C14

Input voltage limits

151...302 V adjustable

160...286 V

Network frequency

50/60 Hz +/- 3 Hz auto-sensing

Output

Main Output Voltage

230 V

Other Output Voltage

220 V

240 V

Rated power in W

1000 W

Rated power in VA

1500 VA

output connection type

4 IEC 320 C13

2 IEC Jumpers C13

Harmonic distortion

Less than 5 %

Maximum configurable power in VA

1500 VA

Maximum configurable power in W

1000 W

Transfer time

6 ms typical : 10 ms maximum

UPS type

Line interactive

Wave type

Sine wave

Output frequency

50/60 Hz +/- 3 Hz sync to mains

Conformance

Product certifications

CE

EAC

RCM

TÜV

VDE

UK PSTI

Standards

EN/IEC 62040-1:2019/A11:2021

EN/IEC 62040-2:2006/AC:2006

EN/IEC 62040-2:2018

Environmental

Acoustic level

46 dBA

Heat dissipation

90 Btu/h

Operating altitude

0...10000 ft

Ambient air temperature for operation

0…40 °C

Ambient air temperature for storage

-15…45 °C

Storage altitude

0.0000000000…15240.0000000000 m

Relative humidity

0…95 %

Storage Relative Humidity

0…95 %

Communications & Management

control panel

Multifunction LCD status and control console

Emergency power off

Optional

Free slots

1

Communication port support

SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use

Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

Surge Protection and Filtering

Surge energy rate

459 J

Noise suppression

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Packing Units

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

25.095 cm

Package 1 Width

59.385 cm

Package 1 Length

60.325 cm

Package 1 Weight

38.240 kg

Contractual warranty

Warranty

3 years repair or replace (excluding battery) and 2 years for battery

Show more specifications
