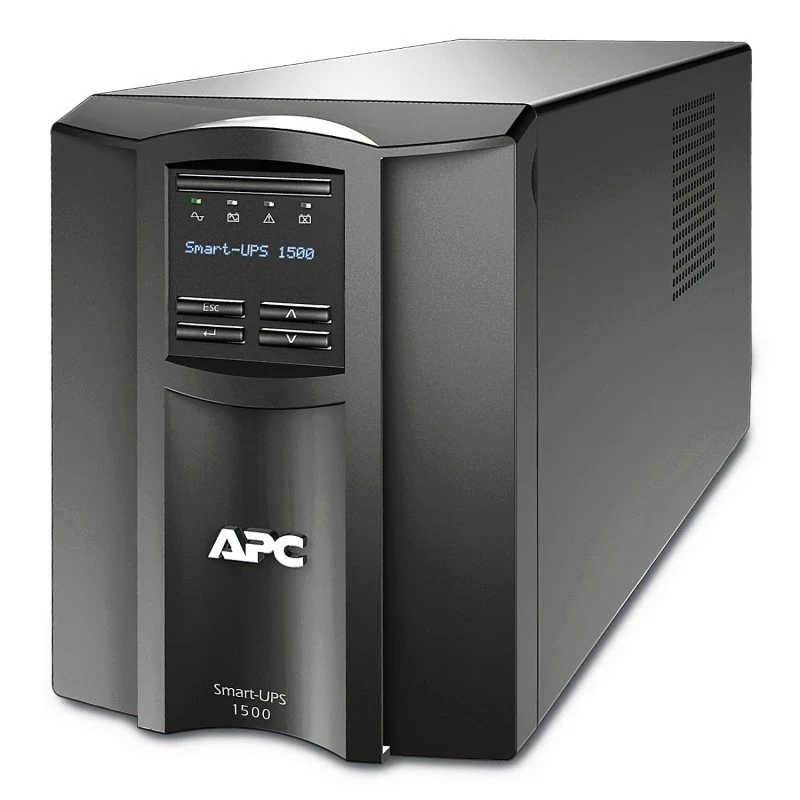

APC Smart-UPS SMT1500IC – 1500VA UPS, 1000W, Line-Interactive, LCD, AVR, 8x IEC C13, SmartConnect, Tower, 230V

Product or component type

Uninterruptible power supply (UPS)

Complementary

Communication port type

SmartConnect Ethernet port

SmartSlot

Software package

SmartConnect software for remote power monitoring feature availability varies by terms of use

Batteries & Runtime

Run Time

View Runtime Graph

Efficiency

View Efficiency Graph

Battery type

Lead-acid battery

Additional information

Configurable for 220 : 230 or 240 nominal output voltage

Extended runtime

0

Number of battery filled slots

0

Number of battery free slots

0

Battery recharge time

3 h

Number of battery replacement quantity

1

Battery life

3…5 year(s)

Replacement battery

RBC7

Battery charger power

136 W rated

General

Provided equipment

Installation guide

USB cable

Number of power module

0

Number of power module filled slots

0

Number of power module free slots

0

product web sub-family

Cloud-enabled monitoring

Redundant

No

Physical

Cable length

1.8 m

Number of cables

1

Colour

Black

Height

21.9 cm

Width

17.1 cm

Depth

43.9 cm

Product weight

24.09 kg

Mounting location

Front

Mounting preference

No preference

Mounting mode

Not rack-mountable

Two post mountable

0

USB compatible

No

Input

Main Input Voltage

230 V

Other Input Voltage

220 V

240 V

Input Connection Type

IEC 320 C14

Input voltage limits

151...302 V adjustable

160...286 V

Network frequency

50/60 Hz +/- 3 Hz auto-sensing

Output

Main Output Voltage

230 V

Other Output Voltage

220 V

240 V

Rated power in W

1000 W

Rated power in VA

1500 VA

output connection type

8 IEC 320 C13

2 IEC Jumpers

Harmonic distortion

Less than 5 %

Maximum configurable power in VA

1500 VA

Maximum configurable power in W

1000 W

Transfer time

6 ms typical : 10 ms maximum

UPS type

Line interactive

Wave type

Sine wave

Output frequency

50/60 Hz +/- 3 Hz sync to mains

Conformance

Product certifications

CE

EAC

RCM

VDE

UK PSTI

Standards

EN/IEC 62040-1:2019/A11:2021

EN/IEC 62040-2:2006/AC:2006

EN/IEC 62040-2:2018

Environmental

Acoustic level

45 dBA

Heat dissipation

135 Btu/h

Operating altitude

0...10000 ft

Ambient air temperature for operation

0…40 °C

Ambient air temperature for storage

-15…45 °C

Storage altitude

0.0000000000…15240.0000000000 m

Relative humidity

0…95 %

Storage Relative Humidity

0…95 %

Communications & Management

control panel

Multifunction LCD status and control console

Free slots

1

Communication port support

SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use

Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

Surge energy rate

459 J

Noise suppression

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Packing Units

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

32.800 cm

Package 1 Width

32.500 cm

Package 1 Length

59.000 cm

Package 1 Weight

26.718 kg

Unit Type of Package 2

P12

Number of Units in Package 2

12

Package 2 Height

112.500 cm

Package 2 Width

80.000 cm

Package 2 Length

120.000 cm

Package 2 Weight

332.616 kg

Contractual warranty

Warranty

3 years repair or replace (excluding battery) and 2 years for battery
