Asus ROG Strix GeForce RTX 3070 White Edition Graphic card, PCI, ARGB, 7680 x 4320, 8GB GDDR6, OpenGL??4.6, 256-bit | 90YV0FR9-M0NA00

ROG-STRIX-RTX3070-O8G-WHITE

ROG Strix GeForce RTX™ 3070 White Edition with a white color scheme and chart-topping thermal performance.

1. NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPU, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
2. 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
3. 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. Now with support for up to 8K resolution, these cores deliver a massive boost in game performance and all-new AI capabilities.
4. OC edition: Boost clock 1935 MHz (OC mode)/1905 MHz (Gaming mode)
5. A limited white edition for themed gaming rigs.
6. Axial-tech fan design has been tuned up with more fan blades and a reversed rotational direction for the center fan.
7. 2.9-slot design expands cooling surface area compared to last gen for more thermal headroom than ever before.
8. Super Alloy Power II includes premium alloy chokes, solid polymer capacitors, and an array of high-current power stages.
9. GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring

ROG STRIX

GeForce RTX^™ 3070 White Edition

Design

White Edition

The shroud, fans, metal accents, and backplate are carefully color matched to give the Strix an aesthetic tailored for ice-white builds.

* Images for Illustration only

1.
2.
3.
4.

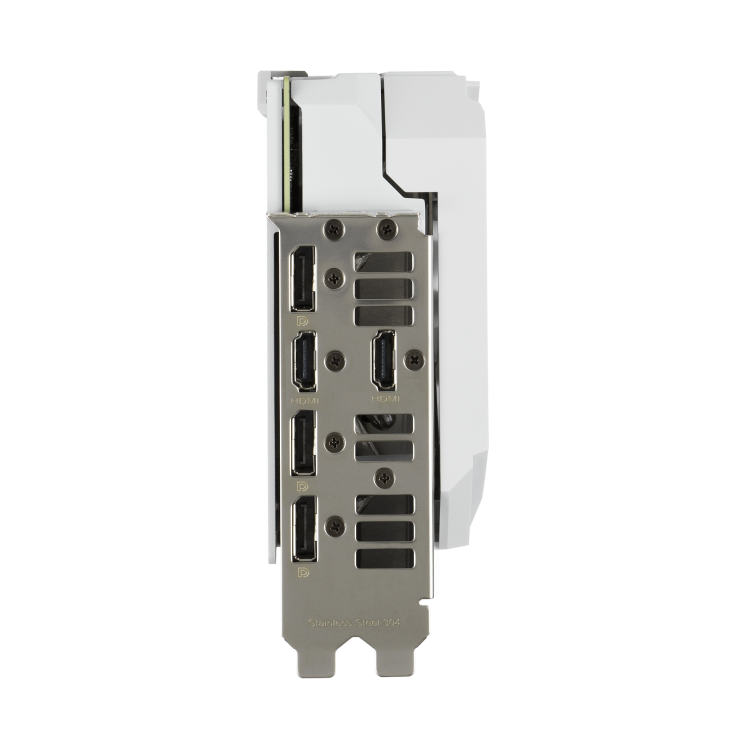

5. Stainless Steel I/O Bracket
6. Dual BIOS
7. GPU Bracket
8. Vented Backplate

Design

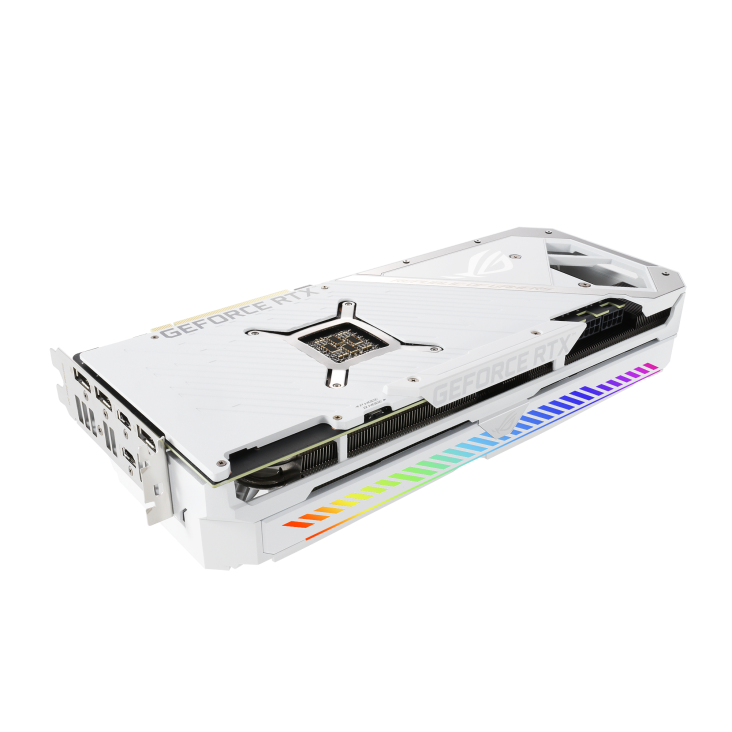

It’s Cooler Out Back

Flipping the card around reveals more design improvements. A wide backplate vent and shortened PCB allows hot air to escape towards chassis exhaust fans instead of being recycled by the GPU’s circulating cooler design. A GPU bracket provides extra stability to the critical connection between die and heat spreader. The I/O bracket is made from stainless steel to protect ports and provide a more secure mount. A conveniently placed Dual Bios switch allows quick selection between “performance” and “quiet” mode for basic customization of the card’s default behavior without software.

1.  Reinforced Frame
2. Reinforced Frame
3. Reinforced Frame

Design

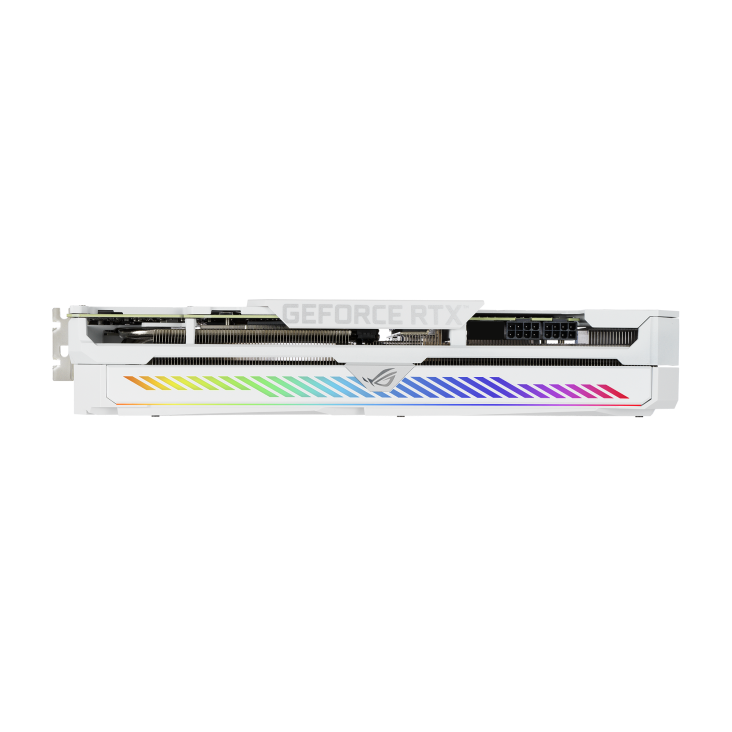

Functional Front

Careful attention has been paid to the front of the GPU, as it’s the most visible part of the card in typical configurations. An addressable RGB element can be customized with Armoury Crate to create a uniform look along with other ROG components. To fulfill the power demands of the GeForce RTX 3070, two 8-pin power connectors are present, along with an onboard circuit that monitors PSU rail voltage. The circuit is fast enough to catch any transients that result in the rail voltage dropping too low. If that happens, a red LED will light up to indicate a power supply issue. The Strix’s reinforced metal frame is also visible here, adding a literal layer of durability.

Choose Color

By GPU Temperature

1. Low point : 40℃
2. High point : 60℃

Select Mode

Static

Breathing

Strobing

Rainbow

Color cycle

Starry night

Smart

Dark

software

GPU Tweak II

The ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.
