Superior WiFi 6 Speeds: Delivers dual band speeds of up to 3 Gbps powered by the latest WiFi 6 technology.1
Higher Network Efficiency: Enjoy faster speeds on more devices with less lag with OFDMA and MU-MIMO.
160 MHz Bandwidth Channel: Double the data at peak transmission times on a single stream with HE160.2
Long-Range Coverage: Dedicated high-power amplifier and professional antennas with an IP67 weatherproof enclosure.
Omada Mesh Technology: Enables wireless connectivity between access points for extended range and flexible deployment.3
Stay Smooth with Seamless Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points.3
PoE Powered: : Supports both 802.3at PoE+ and Passive PoE (adapter included) power supply for flexible installation.
Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or the Omada app.3
AX3000 WiFi 6 Speed
2402 Mbps on 5 GHz + 574 Mbps on 2.4 GHz*1
160 MHz Channel
Double the data at peak transmission times on a single stream with HE160*2
High-Security WiFi 6
WAP3 encryption, Captive Portal (SMS, Voucher, and more), and 802.1x authentication*3
Long-Range Coverage
Professional Smart Antenna technology and dedicated high-power amplifier
Omada Mesh Technology
Flexible wireless deployment without additional cabling*3
Easy and Flexible Installation
Supports both 802.3at PoE+ and Passive PoE (adapter included) for flexible installation
Seamless Roaming
Uninterrupted streaming when moving between APs*3
IP67 Waterproof & Dustproof
Resistant to lightning, dust ingress, shock, vibration, and moisture
Centralized Cloud Management
Omada SDN integration manages the whole network locally or from the cloud
Ideal for Small, Medium, and Large Business Outdoor WiFi Coverage
Outdoor WiFi for Business Scenarios
Lightning-Fast AX3000 WiFi 6 Speeds
New-era business Wi-Fi 6 with speeds up to 2976 Mbps brings more than twice the speed of Wi-Fi 5.*1 Every application feels more fluid with drastically improved Wi-Fi speeds.*2
| Weight: | 0.50 kg |
| Dimensions: | 30x20x10 cm |
|

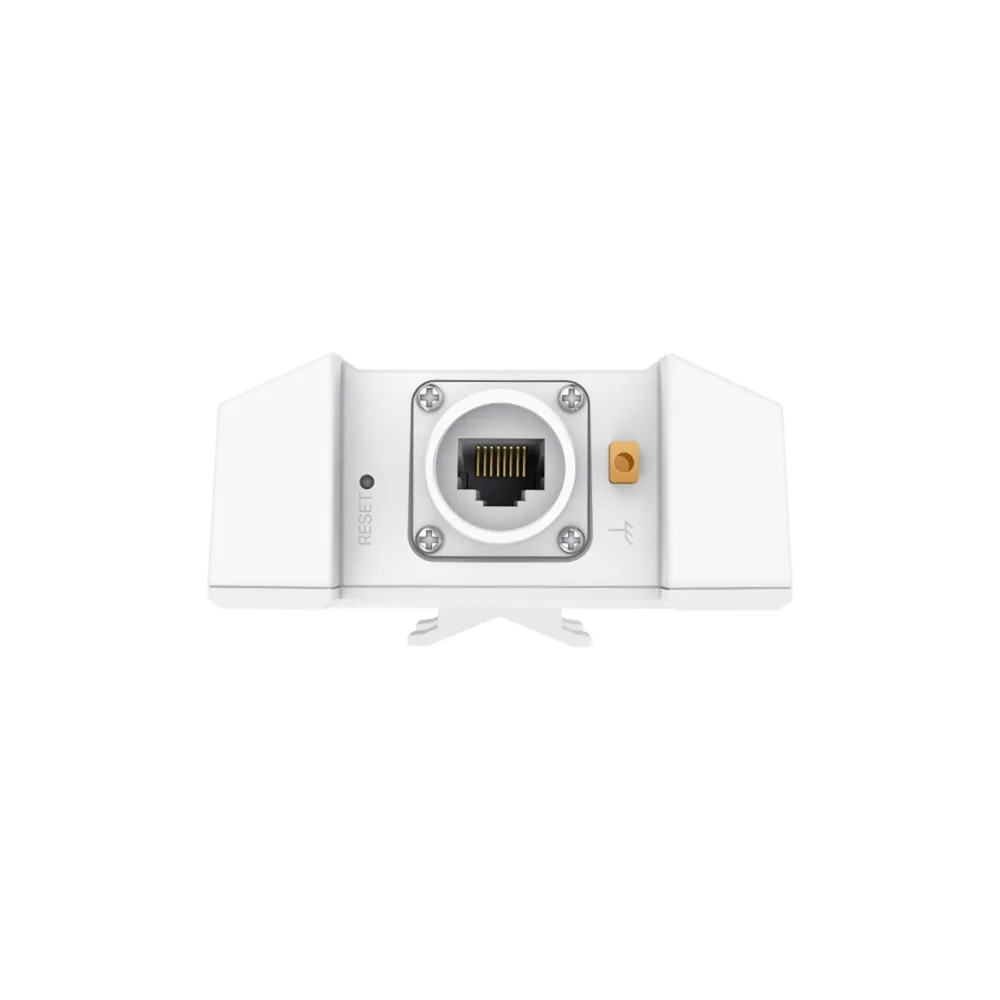

Interface 1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE) Button Reset Power Supply • 802.3at PoE • 48V Passive PoE (PoE Adapter Included) Max. Power Consumption • EU: 12.5W (802.3at PoE or Passive PoE) • US: 14.7W (802.3at PoE or Passive PoE) Dimensions ( W x D x H ) • 280.4×106.5×56.8 mm (without antenna & mounting kit) Antenna • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi Weatherproof Enclosure IP67 Mounting Pole/Wall Mounting (Kits included) WIRELESS FEATURES Concurrent Clients 250+6 Wireless Standards IEEE 802.11ax/ac/n/g/b/a Frequency 2.4 GHz, 5 GHz Signal Rate • 802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80) • 802.11ac: 6.5 Mbps to 1083.3 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80) • 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40) • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps • 802.11b: 1, 2, 5.5, 11 Mbps • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps Wireless Functions • 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • MU-MIMO • Omada Mesh3 • Seamless Roaming3 • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client Wireless Security • Captive Portal Authentication3 • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise Transmission Power • CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP) • FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz) Management Features Omada App Yes Centralized Management • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller Cloud Access Yes, through • Omada Cloud-Based Controller • OC300 • OC200 • Omada Software Controller Email Alerts Yes Management MAC Access Control Yes SNMP v1, v2c System Logging Local/Remote Syslog Yes SSH Yes Web-based Management Yes L3 Management Yes Multi-site Management Yes Management VLAN Yes Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller OTHERS Certification CE, FCC, RoHS Package Content • Access Point EAP650-Outdoor • Passive PoE Adapter • Power Cord • Mounting Kits • Installation Guide System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux Environment • Operating Temperature: -30–70 ℃ (-22–158 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
