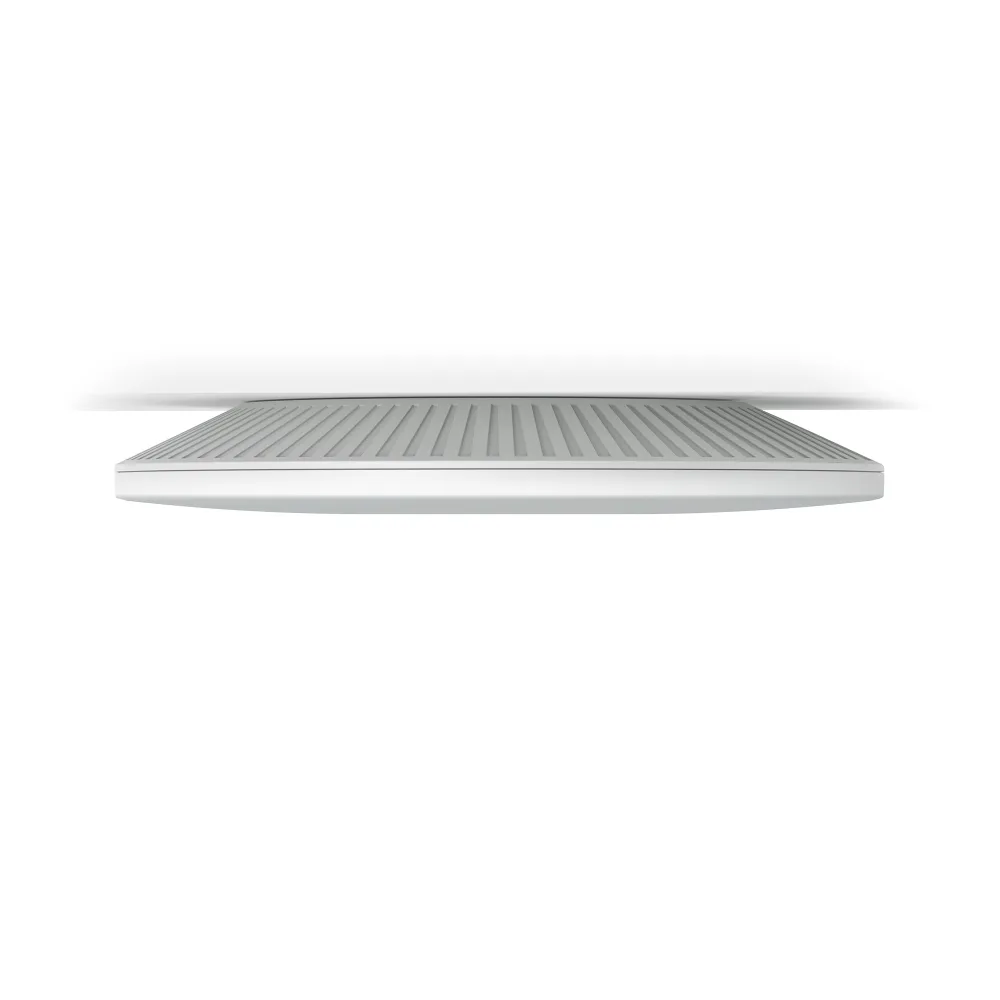

TP-Link EAP670 AX5400 Ceiling Mount WiFi 6 Access Point, Centralized Cloud Management, 160 MHz Channel, Seamless Roaming, Omada Mesh

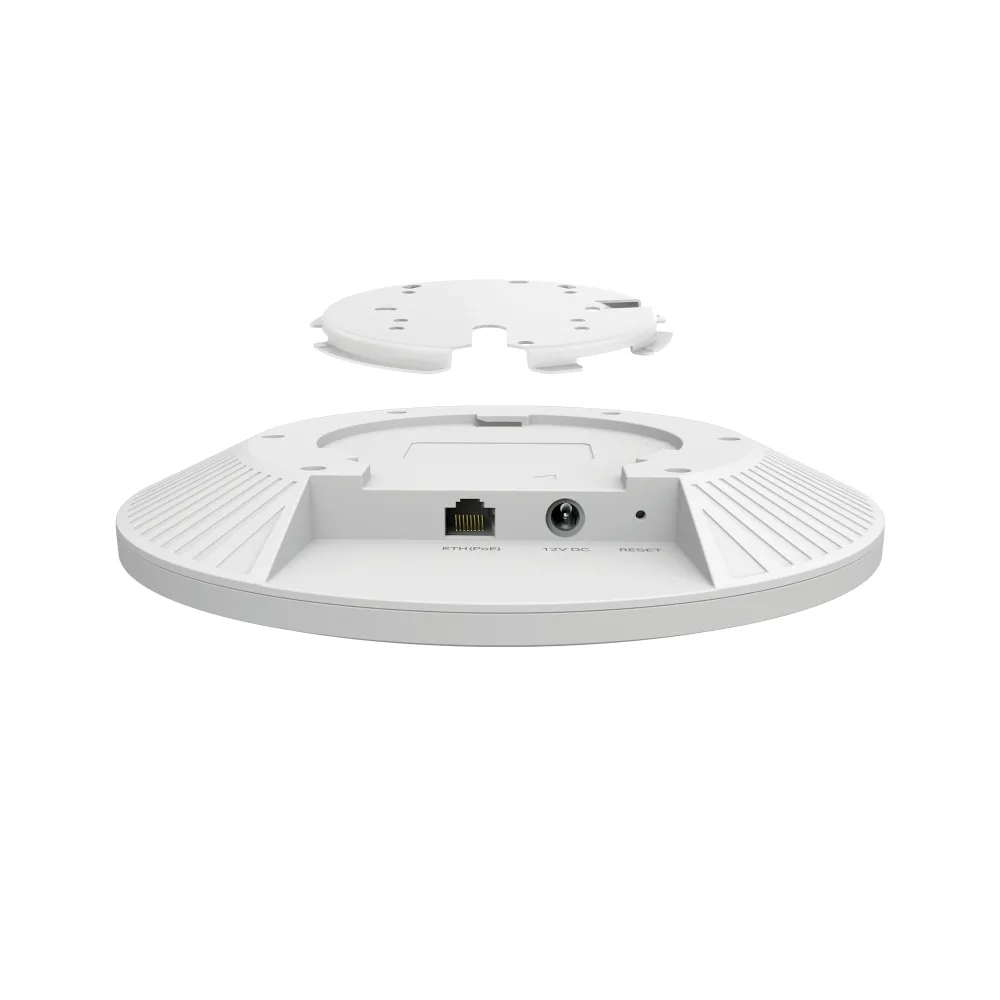

Interface

1× 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)

Button

Reset

Power Supply

• 802.3at PoE

• 12 V / 1.5 A DC (Power Adapter included)

Max. Power Consumption

• EU: 18.1 W

• US: 19.8 W

Dimensions ( W x D x H )

9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)

Antenna

Internal Omni

• 2.4 GHz: 2× 4 dBi

• 5 GHz: 4× 5 dBi

Mounting

Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

Concurrent Clients

250+**

Wireless Standards

IEEE 802.11ax/ac/n/g/b/a

Frequency

2.4 GHz and 5 GHz

Signal Rate

• 5 GHz: Up to 4804 Mbps

• 2.4 GHz: Up to 574 Mbps

Wireless Functions

• 1024-QAM

• 4× Longer OFDM Symbol

• OFDMA

• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS(WMM)

• MU-MIMO

• HE160 (160 MHz Bandwidth)‡

• Seamless Roaming §

• Omada Mesh§

• Band Steering

• Load Balance

• Airtime Fairness

• Beamforming

• Rate Limit

• Reboot Schedule

• Wireless Schedule

• Wireless Statistics based on SSID/AP/Client

Wireless Security

• Captive Portal Authentication§

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• SSID to VLAN Mapping

• Rogue AP Detection

• 802.1X Support

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power

• CE:

<20 dBm(2.4 GHz, EIRP)

<23 dBm(5 GHz, , band1 & band2, EIRP)

<30 dBm(5 GHz, , band3, EIRP)

• FCC:

<25 dBm (2.4 GHz)

<28 dBm (5 GHz)

Management Features

Omada App

Yes

Centralized Management

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

• Omada Cloud-Based Controller

Cloud Access

Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Email Alerts

Yes

LED ON/OFF Control

Yes

Management MAC Access Control

Yes

SNMP

v1, v2c, v3

System Logging Local/Remote Syslog

Local/Remote Syslog

SSH

Yes

Web-based Management

HTTP/HTTPS

L3 Management

Yes

Multi-site Management

Yes

Management VLAN

Yes

Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS

Certification

CE, FCC, RoHS

Package Content

• EAP670

• Power Adapter

• Ceiling/Wall Mounting Kits

• Installation Guide

System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
