Columbus
16,249.00
Inclusive of VAT
Sold By: PC7
Availability: In Stock
Condition: New
Delivery To: Columbus
Free Delivery
Delivered by: Delivery not available in United States

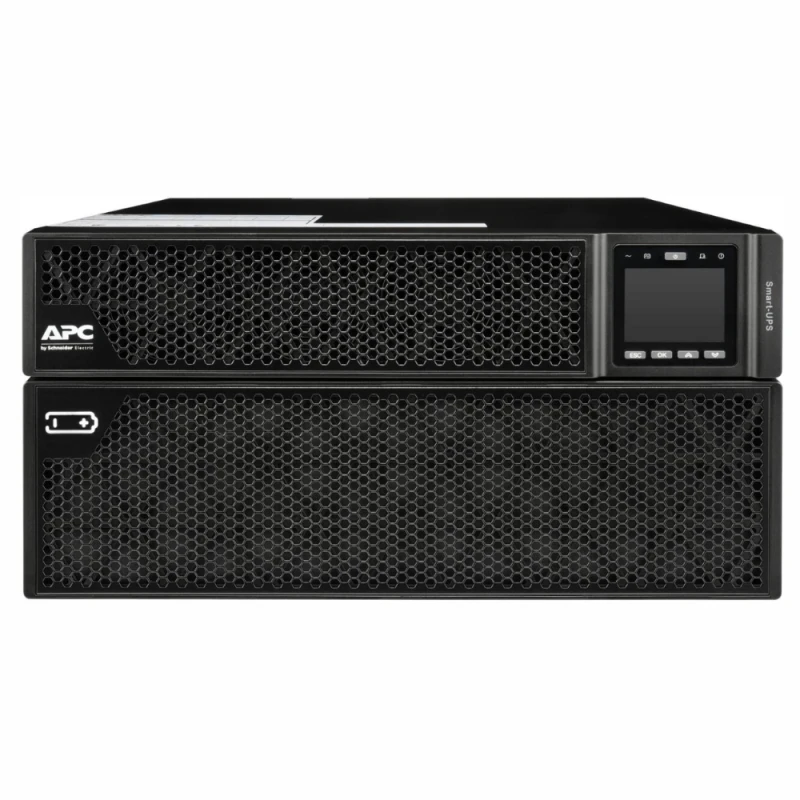

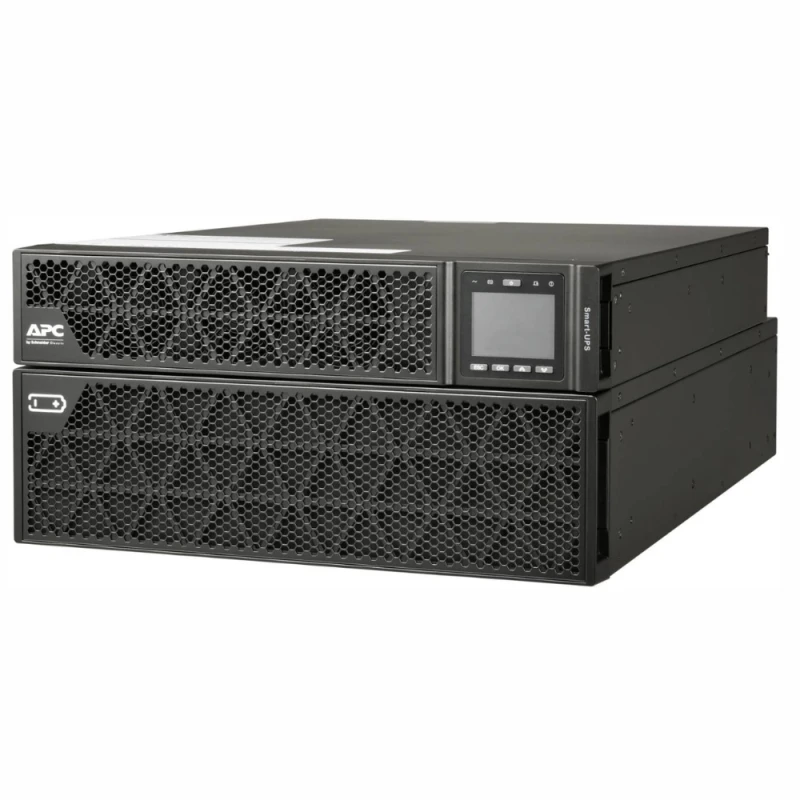

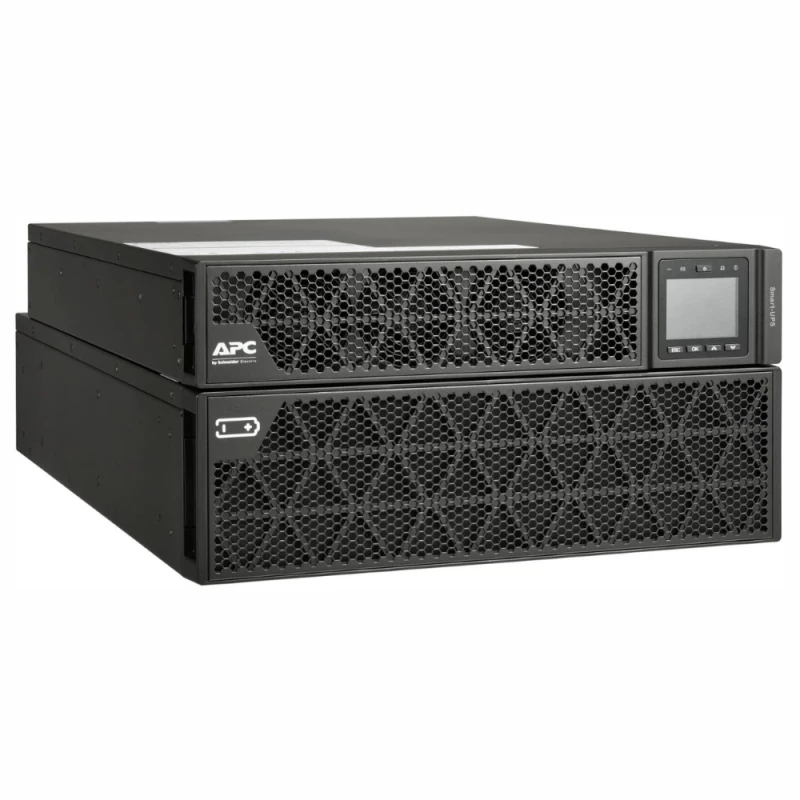

The APC Smart-UPS RT SRTG10KXLI provides 10 kVA/10 kW power with 230V input and output. It features a lead-acid battery, 2x IEC C13 + 1x IEC C19 outlets, 431W charger, and 1 extended runtime. Designed for high availability, it includes an LCD display, hot-swappable batteries, and a SmartSlot for optional network management.
10kVA/10kW double-conversion on-line pure sine wave rack/tower UPS
Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications

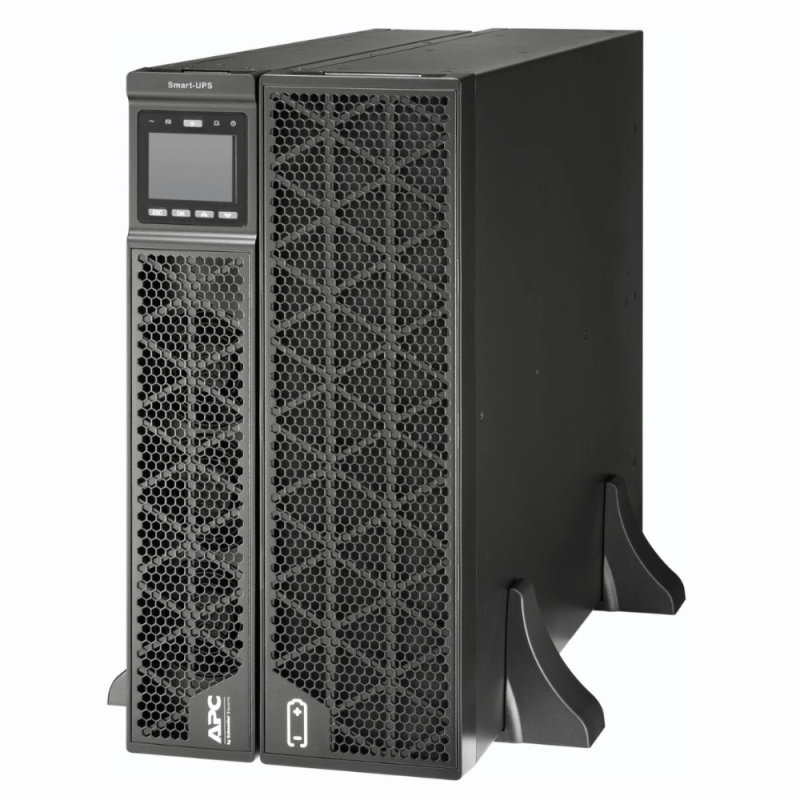

Rack/tower convertible (SRTGRK1 rail kit sold separately)
1-Year Secure Network Management Card subscription included
Add up to 4 external battery packs (SRTG192XLBP4) for extended runtime
| Weight: | 103.00 kg |
| Dimensions: | 79 x 59 x 41 cm |
|
Other Input Voltage 220 V 240 V Main Output Voltage 230 V Other Output Voltage 220 V 240 V Rated power in W 10000 W Rated power in VA 10000 VA output connection type 2 IEC 60320 C13 1 IEC 60320 C19 Output connector type Hard wire 3-wire (H N + E) 1 Number of rack unit 5U Provided equipment 1 x USB cable 1 x RJ45 cable 2 x rack mounting brackets 2 x stabilization/wall mounting feet 2 x installation manual 1 x C13-C14 power cord 1 x external battery pack 1 x battery cable Range of product Smart-UPS On-Line Batteries & Runtime Run Time View Runtime Graph Efficiency View Efficiency Graph Battery type Lead-acid battery Battery voltage +/- 96 V Extended runtime 1 Number of battery filled slots 0 Number of battery free slots 0 Battery recharge time 4 h Number of battery replacement quantity 2 Battery life 3…5 year(s) Replacement battery APCRBC174 Battery charger power 431 W rated General Number of power module filled slots 0 Number of power module free slots 0 Redundant No UPS type Double conversion online Physical Colour Black (RAL 9005) Height 21.7 cm Width 44 cm Depth 68 cm Product weight 101.5 kg Mounting preference No preference Mounting mode Rack-mounted with kit Two post mountable 0 USB compatible Yes Mounting position Horizontal Input Maximum input current 30 A Max short time withstand current 40 kA Input voltage limits 160...285 V full load 100...285 V half load Number of input connectors 1 hard wire 3-wire (1P + N + E) Network frequency 40...70 Hz auto-sensing Output Bypass type Internal bypass (automatic and manual) Crest factor 3 : 1 Harmonic distortion Less than 2 % Maximum configurable power in VA 10000 VA Maximum configurable power in W 10000 W Wave type Sine wave Efficiency 93.5 % Output frequency 50/60 Hz +/- 4 Hz sync to mains Additional information Configurable for 220 : 230 or 240 nominal output voltage Conformance Product certifications CE UKCA TISI Standards EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 Environmental Acoustic level 55 dBA Heat dissipation 2217.98 Btu/h Operating altitude 0...3000 m Ambient air temperature for operation 0…40 °C Ambient air temperature for storage -15…45 °C Storage altitude 0…15000 m IP degree of protection IP20 Relative humidity 0…95 % non-condensing Storage Relative Humidity 0…95 % non-condensing Communications & Management Emergency power off Yes Preinstalled device Network management card 3 with environmental monitoring Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm Surge Protection and Filtering Surge energy rate 600 J Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 68.5 cm Package 1 Width 59.4 cm Package 1 Length 79.4 cm Package 1 Weight 124.5 kg Contractual warranty Warranty 3 years repair or replace (excluding battery) and 2 years for battery |
