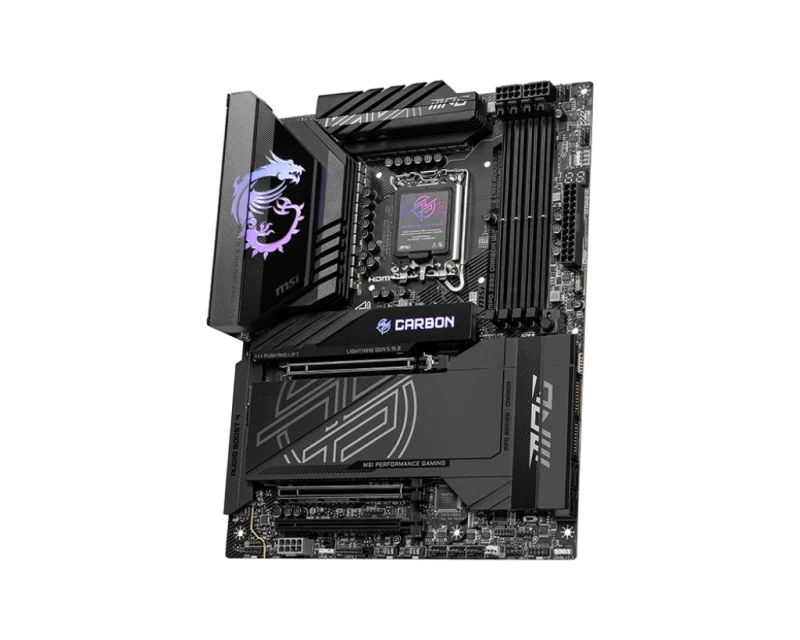

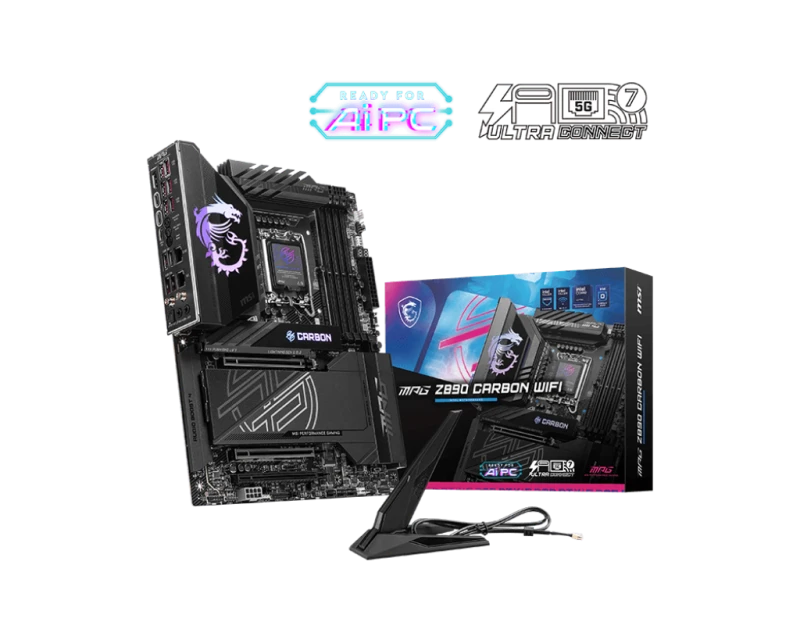

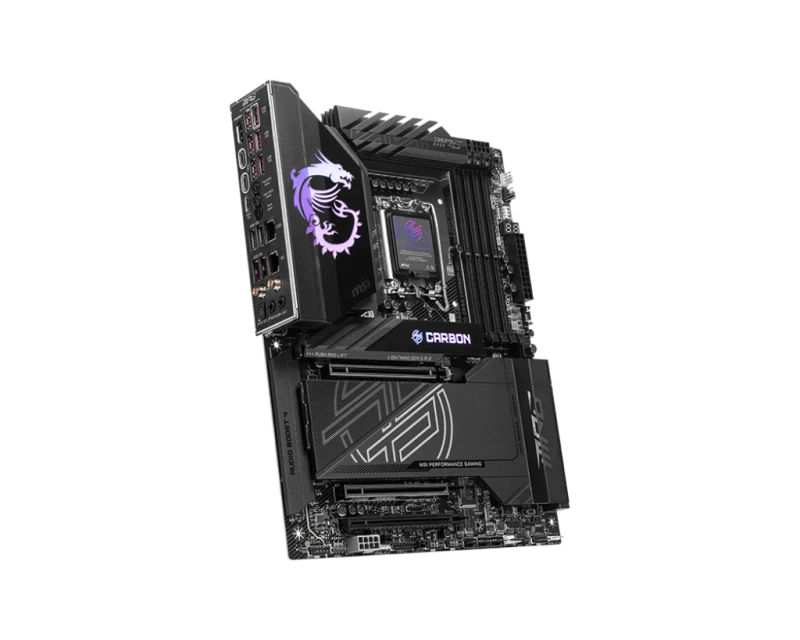

MSI MPG Z890 CARBON WIFI, LGA 1851, 4x DDR5 UDIMM, Max 256GB, Up to 9200 MT/s | 911-7E17-001

(0 Reviews)

SKU: 6195

Category: Motherboards

Brand: MSI

Warranty: Reliable Quality, Backed by a 1 Year Warranty

Add to Wishlist
AED 2,299.00

Sold By: PC7

Availability: In Stock

Condition: New

Delivery To: Dublin

Free Delivery

Delivered by: Delivery not available in United States

  • Description
  • Product Reviews
  • Specifications

MSI MPG Z890 CARBON WIFI, LGA 1851, 4x DDR5 UDIMM, Max 256GB, Up to 9200 MT/s | 911-7E17-001


MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.


  1. Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
  2. Supports DDR5 Memory, up to 9200+ MT/s (OC)
  3. Ultra Performance: Direct 20+1+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
  4. Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  5. EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
  6. Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
  7. Ultra Connect: Thunderbolt™ 4 and Intel® Killer™ 5G LAN + 2.5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  8. Audio Boost 4: Reward your ears with studio grade sound quality for the most immersive gaming experience


Customer Reviews

Write A Review

No reviews yet for this product.

Add a Review

General

Weight: 2.00 kg
Dimensions: 30x30x5 cm

Specifications

Chipset INTEL Z890 CPU Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851 Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Max. overclocking frequency • 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s Supports Intel POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory Supports CUDIMM
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https Onboard Graphics 1x HDMI™
Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort
ThundeboltTM 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
• PCI_E1 supports BIOS adjustment to x8+x4+x4* • PCI_E2 supports BIOS adjustment to x4+x4*
Audio Realtek® ALC1220P Codec 7.1-Channel USB High Defination Audio
Supports S/PDIF output Storage 5x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices 4x SATA 6G
*Please refer to the manual for M.2 SSD heatsink restrictions. RAID •Supports RAID 0, RAID 1, RAID 5 and Raid 10 for SATA storage devices
•Supports RAID 0, RAID 1, RAID 5 and Raid 10 for M.2 NVMe storage devices Onboard Thunderbolt 2x Thunderbolt4 ports (Rear)
Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display
USB 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front)
10x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front) *USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1
LAN 1x Intel® Killer™ E5000B 5G LAN 1x Intel® I226V 2.5G LAN
Internal IO 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan 1x Combo Fan (Pump_Sys Fan)
5x System Fan 1x EZ Conn-header (JAF_2)
2x Front Panel (JFP) 1x Chassis Intrusion (JCI)
1x Water Flow connector 1x Front Audio (JAUD)
1x Thermal Sensor connectors(T_SEN) 3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports 4x USB 5Gbps Type A ports
