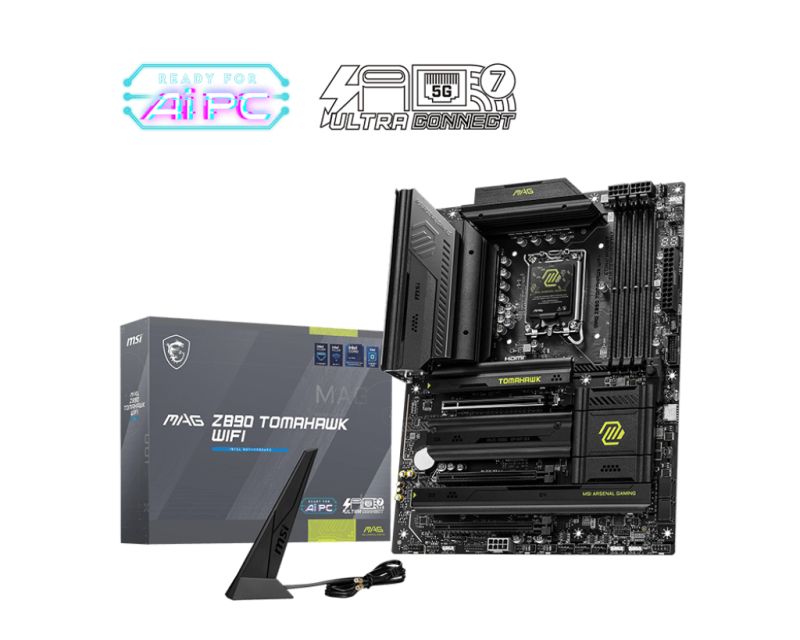

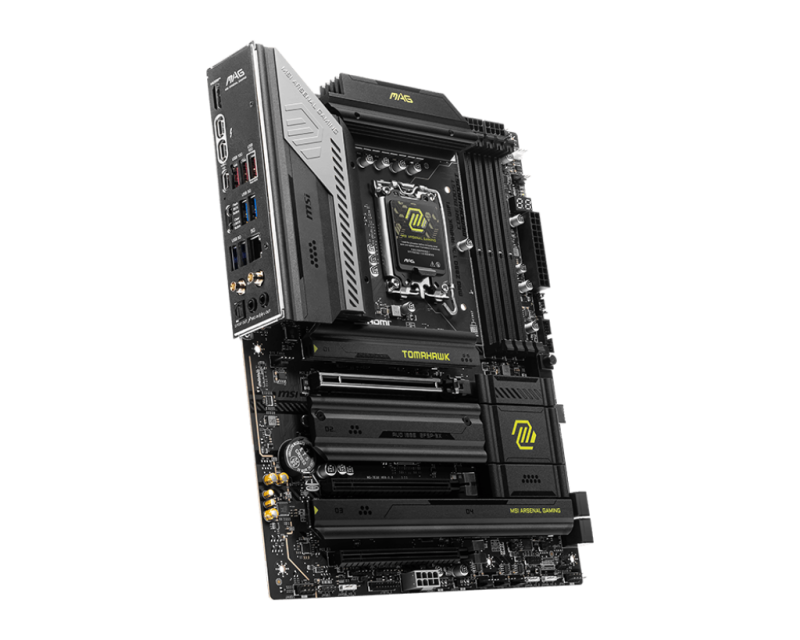

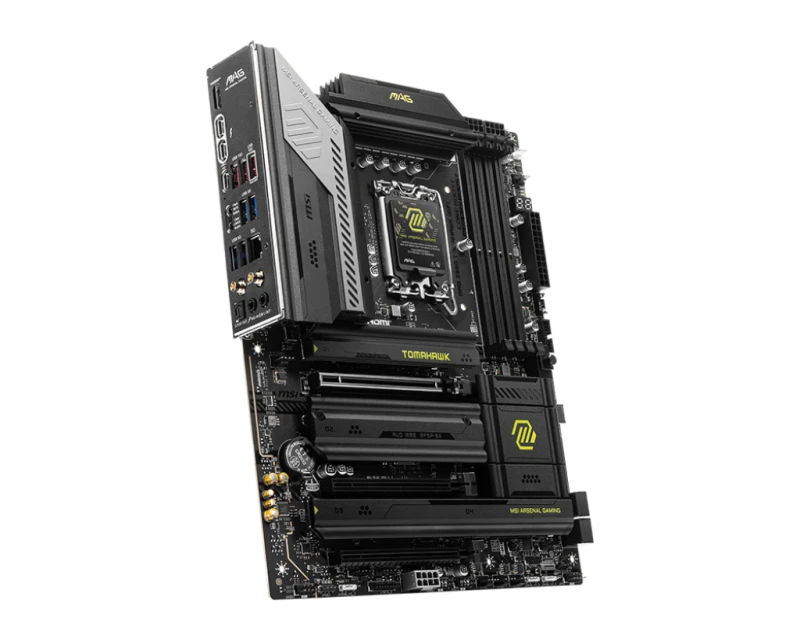

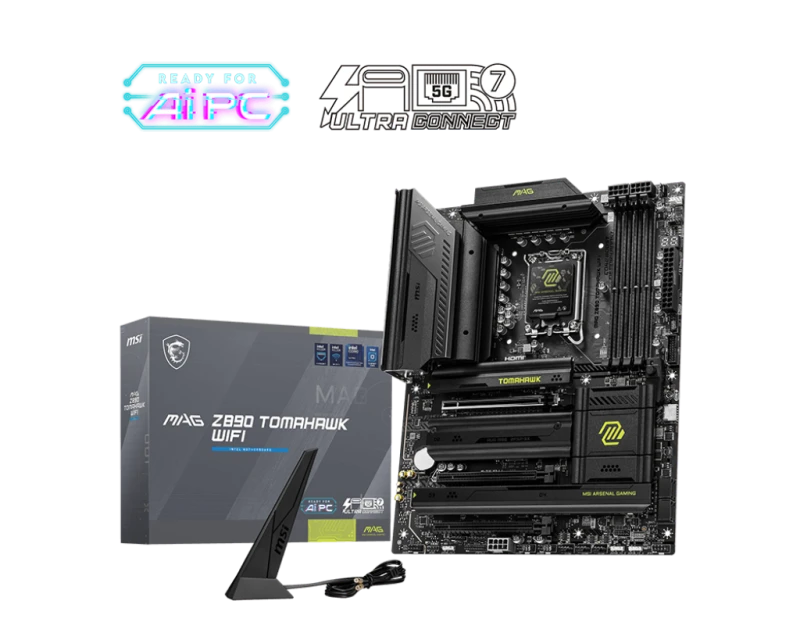

MAG Z890 TOMAHAWK WIFI Gaming Motherboard, LGA 1851, 4x DDR5 UDIMM, Max 256GB, Support Up to 9200 MT/s | 911-7E32-003
MAG Z890 TOMAHAWK WIFI Gaming Motherboard, LGA 1851, 4x DDR5 UDIMM, Max 256GB, Support Up to 9200 MT/s | 911-7E32-003
MAG Z890 TOMAHAWK WIFI Gaming Motherboard, LGA 1851, 4x DDR5 UDIMM, Max 256GB, Support Up to 9200 MT/s | 911-7E32-003
MAG Z890 TOMAHAWK WIFI Gaming Motherboard, LGA 1851, 4x DDR5 UDIMM, Max 256GB, Support Up to 9200 MT/s | 911-7E32-003
Thumbnail
Thumbnail
Thumbnail
Thumbnail
‹
›

MAG Z890 TOMAHAWK WIFI Gaming Motherboard, LGA 1851, 4x DDR5 UDIMM, Max 256GB, Support Up to 9200 MT/s | 911-7E32-003

(0 Reviews)

SKU: 5387

Category: Motherboards

Brand: MSI

Warranty: Reliable Quality, Backed by a 1 Year Warranty

Add to Wishlist
AED 1,490.00

Sold By: PC7

Availability: In Stock

Condition: New

Delivery To: Dublin

Free Delivery

Delivered by: Delivery not available in United States

  • Description
  • Product Reviews
  • Specifications

MAG Z890 TOMAHAWK WIFI Gaming Motherboard, LGA 1851, 4x DDR5 UDIMM, Max 256GB, Support Up to 9200 MT/s | 911-7E32-003

MAG Z890 TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with Killer Wi-Fi 7 solution and 5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for the battlefield of Intel Core Ultra processors.

MAG Z890 Tomahawke Wifi

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.


Cooling Overview

z870 Tomahawak cooling overview

Extended Heatsink
  1. Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
Double-sided M.2 Shield Frozr
  1. Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
  1. The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
  1. High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Enlarged Chipset Heatsink
  1. The enlarged heatsink is designed to


Customer Reviews

Write A Review

No reviews yet for this product.

Add a Review

General

Weight: 1.00 kg
Dimensions: 30x30x5 cm

Specifications

Chipset INTEL Z890 CPU Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851 Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Max. overclocking frequency • 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory Supports CUDIMM
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https Onboard Graphics 1x HDMI™
Support HDMI™ 2.1 with FRL, maximum resolution of 4K 120Hz* 2x Type-C DisplayPort
Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio Realtek® ALC1220P Codec 7.1-Channel High Definition Audio
Supports S/PDIF output Storage 4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G *Please refer to the manual for M.2 SSD heatsink restrictions.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Onboard Thunderbolt 2x Thunderbolt4 ports (Rear) Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display USB 4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front) *USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1
LAN Intel® Killer™ E5000 5Gbps LAN Internal IO 1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan
1x Combo Fan (Pump_Sys Fan) 6x System Fan
1x EZ Conn-header (JAF_2) 2x Front Panel (JFP)
1x Chassis Intrusion (JCI) 1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports
2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan. LED FEATURE 4x EZ Debug LED
