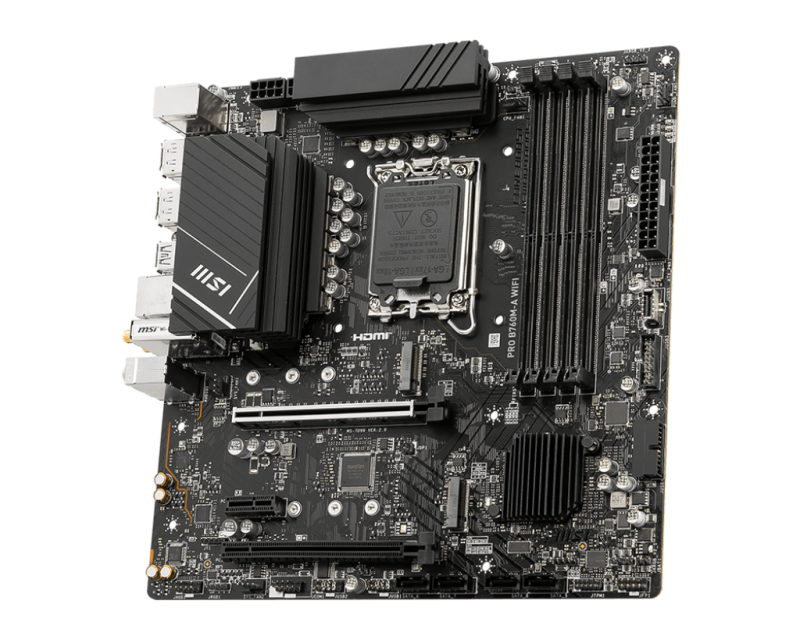

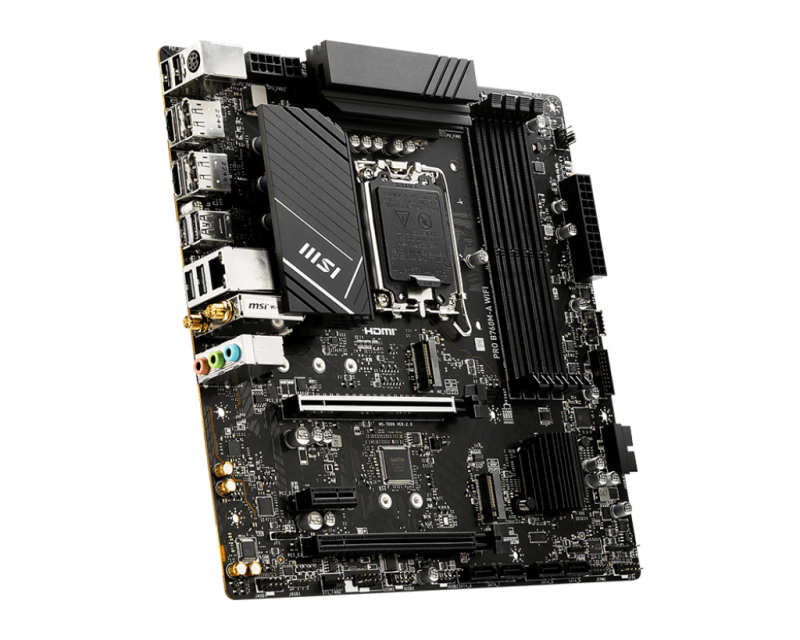

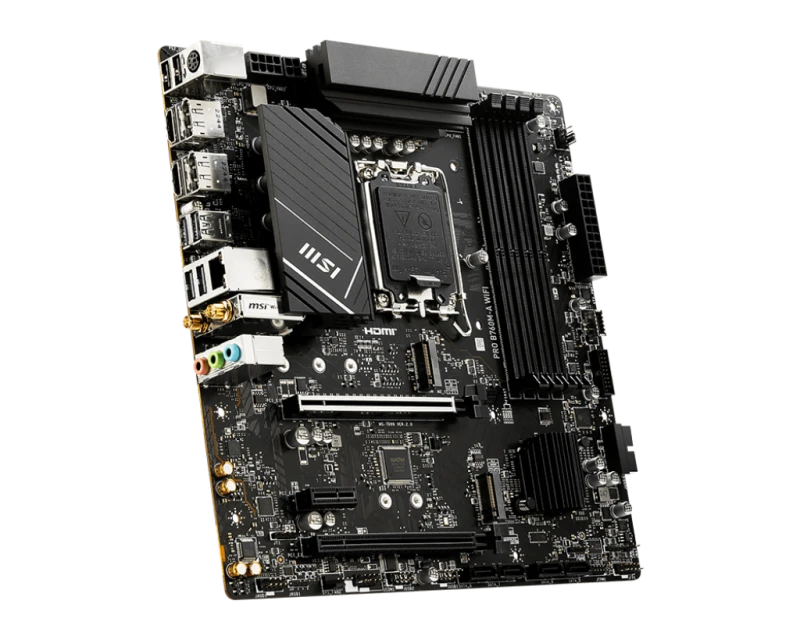

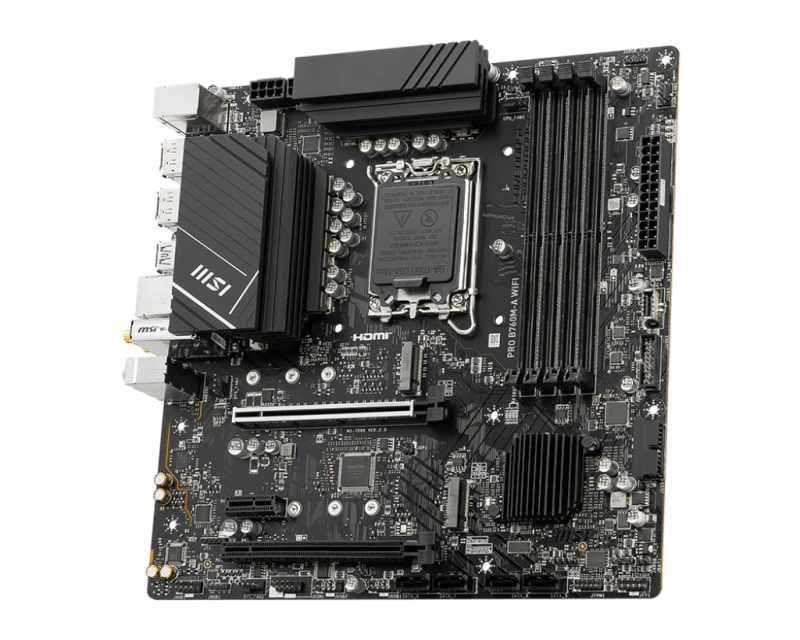

MSI PRO B760M-A WIFI Motherboard, LGA 1700, 4x DDR5, Max 256GB, 2x PCI-E x16 slot, 2x M.2, Intel® Wi-Fi 6E

PRO B760M-A WIFI

1. Support Intel^® Core™ 14th/ 13th/ 12th Gen Processors, Intel^® Pentium^® Gold and Celeron^® Processors for LGA 1700 socket
2. Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
3. Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
4. Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK and additional choke thermal pads are built for high performance system and non-stop gaming experience
5. High Quality PCB: 6-layer PCB made by 2oz thickened copper
6. Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
7. Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
8. 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
9. AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

BUSINESS ELEGANCE

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

EXCLUSIVE FEATURES

Extended Heatsink

2.5G Network Solution

Latest Wi-Fi 6E

Memory Boost

Lightning Gen 4

HARDWARE

Hardware

1. cooling
2. power solution
3. Diy Friendly
4. cooling overview
5. Fully Fan Control
6. Water Cooling

Cooling Overview

Extended Heatsink

1. Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

Heavy Plated VRM Heatsink

1. The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad

1. High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.

Chipset Heatsink

1. The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

CONTROL IN ONE CLICK

FROZR AI COOLING

AUTO DETECT YOUR FAN

1. 1

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.

OPTIMIZED FOR WATER COOLING

Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

— TESTED TO WORK BEST WITH —

1. STRUCTURE
2. PCB DESIGN

12+1+1 POWER DESIGN

Unleash and sustain the maximum performance with a VRM design built with a total of 12+1+1 power design. Combining dual power connectors and exclusive Core Boost technology, MSI PRO Series motherboards are ready to sustain heavy daily work.

12PHASE

CORE POWER DRPS / P-PAK

1PHASE

AUX

POWER

1PHASE

GT

POWER

1. 1

DIGITALL POWER DESIGN

A fully digital power design allows for faster and undistorted current delivery to the CPU at pin-point precision.

DOUBLE POWER CONNECTORS

The 8-pin and 4-pin connectors deliver adequate power even for an overclocked multi-core CPU.

CORE BOOST

Premium layout not only support the multi-core CPU, also create the perfect conditions for your CPU overclocking.

OPTIMIZED PCB SOLUTION

The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

1. 6 PCB layers
2. 2oz Thickened Copper
3. DRIVER UTILITY INSTALLER
4. MORE FOR DIY FRIENDLY

Once connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks. Learn more

*Please ensure to connect the internet, or the Driver Utility Installer won’t launch automatically.

WINDOWS 11 CERTIFIED

XL CLIP

EZ DEBUG LED

keep out zone

Double Esd Protection

With MSI you benefit from great compatibility and a worry-free user experience when using Microsoft Windows 11. With a true dedication to performance, our R&D team has made sure everything works as intended when using the latest version of Microsoft Windows on any MSI product.

The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer.

Onboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again.

MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.

* Please ensure to remove the unnecessary mounting stand-off when installing the motherboard into the case.

Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.

PERFORMANCE

Performance

1. Expansion
2. memory
3. Bios & software
4. LIGHTNING GEN 4 PCI-E
5. STORAGE
6. USB

Lightning Gen 4 PCI-e with Steel Armor

LIGHTNING GEN 4 PCI-E

Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.

REINFORCED,

HEAVY SOLDERED CONNECTIONS

Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

FAST AND FUTURE-READY STORAGE

MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

2x

 64 Gbps

4x

 6 Gbps

USB FRONT TYPE-C

MSI PRO motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.

1. DDR5

LATEST DDR5 MEMORY WITH SMT SLOT

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MSI PRO Series motherboards are ready to deliver the world class memory performance.

The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.

1. CLICK BIOS 5
2. MSI CENTER
3. AIDA64
4. System Safety
5. RESIZABLE BAR

Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!

EZ-mode

Advanced mode

XMP

1. Choose from a preset XMP profile and automatically overclock compatible DDR memory.

VMD (Volume Management Device)

1. Enable direct control and management of NVMe SSDs from the PCIe bus without additional hardware adaptors.

M-FLASH

1. Conveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.

HARDWARE MONITOR

1. Get immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage.

MEMORY TRY IT

1. Get extreme speed out of your system memory and get more performance.

SEARCH & FAVORITES

1. A permanent search & favorite option in the top right corner moves you through the BIOS menus quickly.

MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

Mystic Light

True Color

User Scenario

Hardware Monitoring

Profile Setting

Fan Center

System Diagnosis

Create your own colorful masterpiece with ease. Splash any color you want with just a few clicks!

Optimized monitor’s brightness and color in several modes for different situation, you can also customize by yourself.

One click for setting your computer, even customize own profile as your preference.

Get immediate access to your critical hardware information in real-time.

Tune select motherboard settings in the OC Setting menu, where options to boost core performance and optimize system cooling are presented in an intuitive interface.

Assume complete control of your fans with Fan Center. Set up to four CPU temperature targets and the motherboard will adjust fan speeds automatically.

Restore and backup your MSI storage devices in one click to provide stable system usage, you can even monitor the storage status to prevent system crash or data missing.

Exclusive UI of AIDA64 Extreme

MSI motherboards provide 60 days free trial of AIDA64 Extreme - MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.

System Safety

All MSI PRO series motherboards have SECURITY function in BIOS to protect every private files for no matter business or daily use.

Secure Boot

Secure boot is a security standard to make sure that a device boots using only software that is trusted. When the PC starts, the firmware checks the signature of each piece of boot software, including UEFI firmware drivers, EFI applications, and the operating system. The PC boots while the signatures are valid.

Resizable BAR (Re-Size BAR) is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve performance.

Connectivity

Connectivity

1. audio
2. mystic light
3. networking
4. Audio Boost

Audio boost

1. HIGH DEFINITION AUDIO PROCESSOR
2. HIGH QUALITY AUDIO CAPACITORS
3. HIGH QUALITY AUDIO JACKS
4. ISOLATED AUDIO SIGNAL
5. DE-POP PROTECTION

1. Synchronize

EXTEND YOUR RGB EXPERIENCE WITH EASE

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

1. A-RAINBOW V2
2. RGB
3. AMBIENT LINK

Supports 5V Addressable RGB devices. Compatible with ARGB Gen2 / Gen1 devices.

*Gen2 device only supports 7 RGB themes

Supports 12V RGB devices.

Synchronize lighting theme with compatible lighting devices.

1. 2.5G Lan & Wi-Fi 6E

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI's premium network solution provides incredible data transfer speed for demanding users.

1. Wi-Fi 6E
2. Bluetooth 5.3
3. 2.5G LAN
