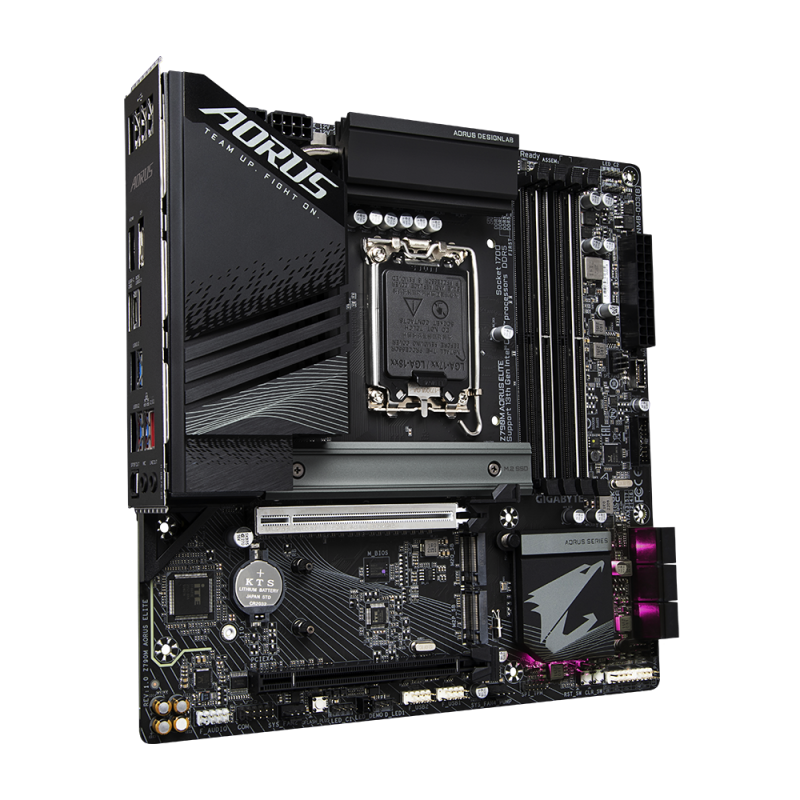

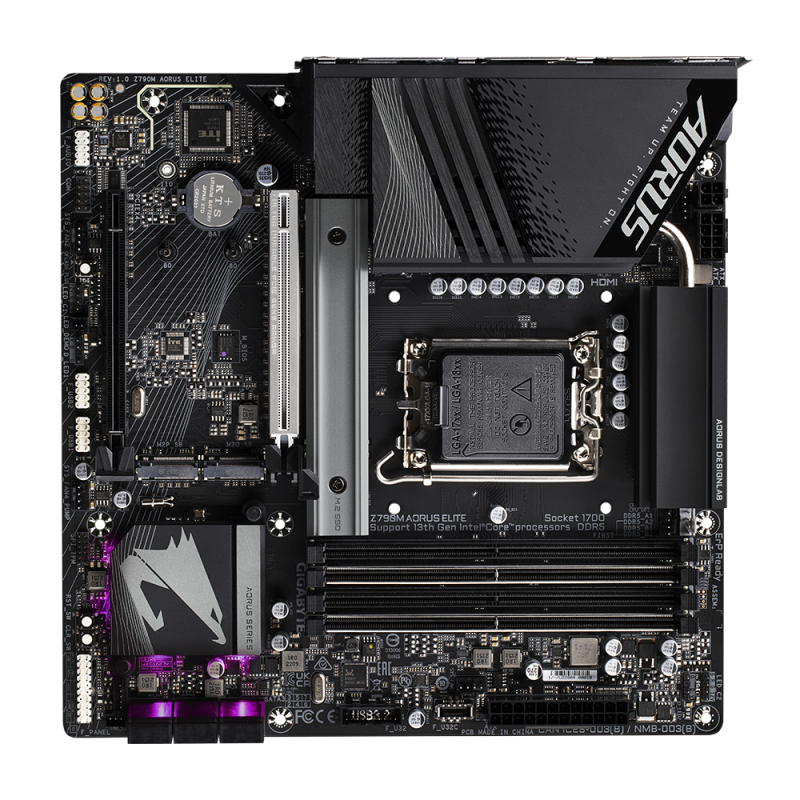

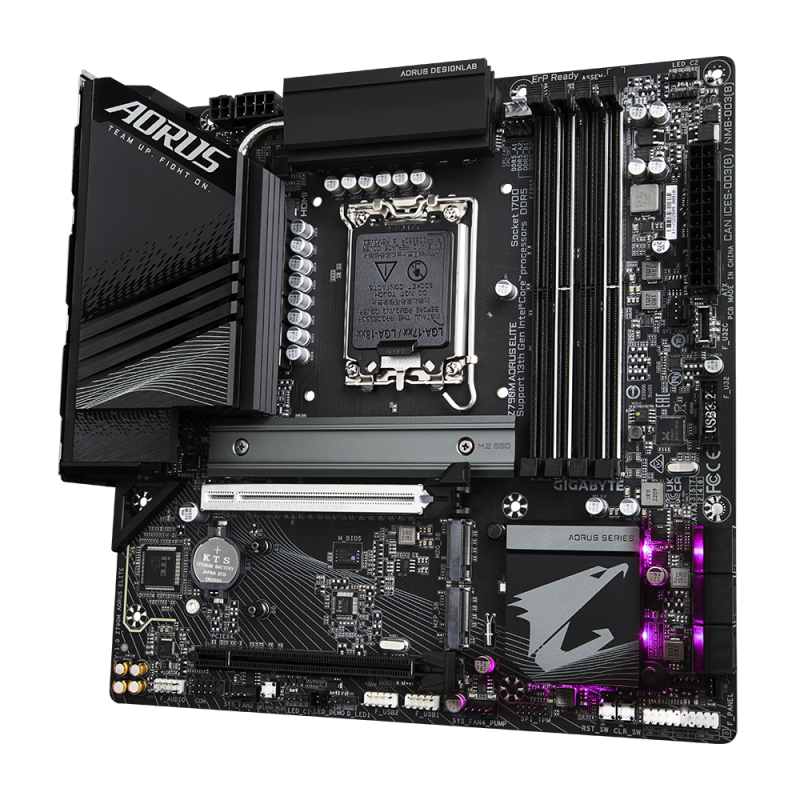

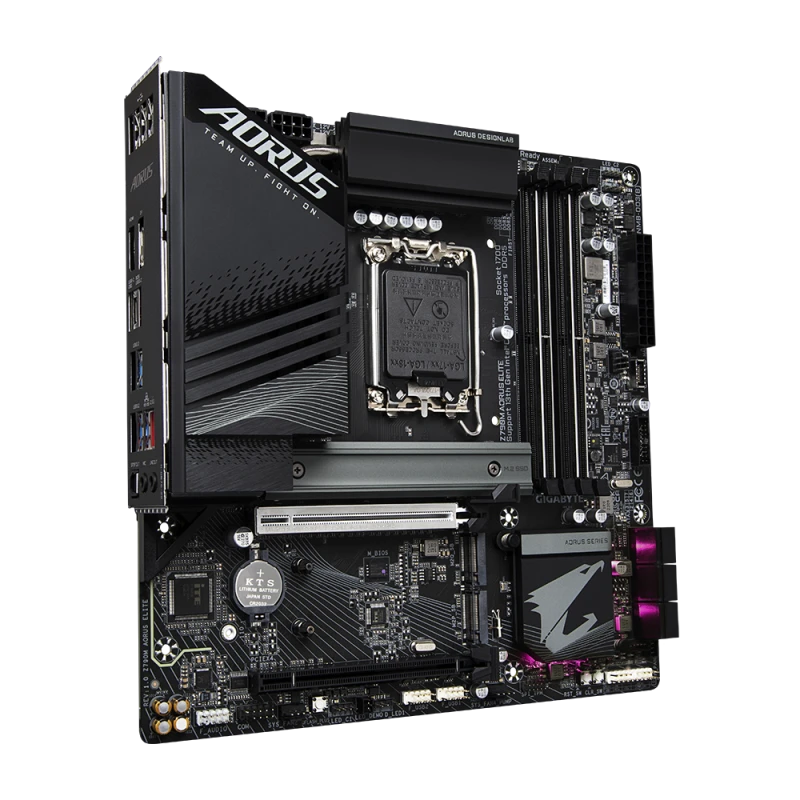

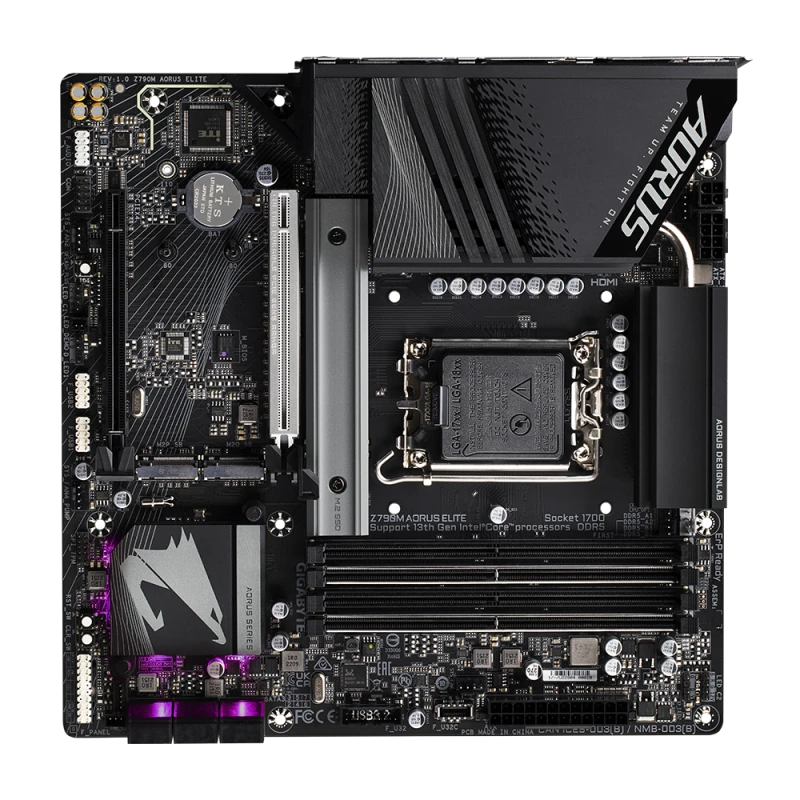

GIGABYTE Z790M AORUS ELITE LGA1700 mATX Motherboard | Z790M-AORUS-ELITE
| Weight: | 1.50 kg |
| Dimensions: | 30x30x10 cm |
| LGA1700 socket | L3 cache varies with CPU |
| (Please refer "CPU Support List" for more information.) | Chipset |
| Intel® Z790 Express Chipset | Memory |
| Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules | 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory |
| Dual channel memory architecture | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | Support for Extreme Memory Profile (XMP) memory modules |
| (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) | Onboard Graphics |
| Integrated Graphics Processor-Intel® HD Graphics support | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| * Support for HDMI 2.1 version and HDCP 2.3. | ** Support native HDMI 2.1 TMDS compatible ports. |
| 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 | * Support for DisplayPort 1.2 version and HDCP 2.3 |
| (Graphics specifications may vary depending on CPU support.) | Audio |
| Realtek® ALC1200 CODEC | High Definition Audio |
| 2/4/5.1/7.1-channel | * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Support for S/PDIF Out | LAN |
| Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | Expansion Slots |
| CPU | 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
| Chipset | 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support |
| Support for AMD CrossFire™ technology | Storage Interface |
| 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) | 6 x SATA 6Gb/s connectors |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header | 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel |
| Chipset+2 USB 2.0 Hubs | 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | 1 x 4-pin ATX 12V power connector |
| 1 x CPU fan header | 1 x water cooling CPU fan header |
| 3 x system fan headers | 1 x system fan/water cooling pump header |
| 2 x addressable LED strip headers | 2 x RGB LED strip headers |
| 3 x M.2 Socket 3 connectors | 6 x SATA 6Gb/s connectors |
| 1 x front panel header | 1 x front panel audio header |
| 1 x USB Type-C® header, with USB 3.2 Gen 2 support | 1 x USB 3.2 Gen 1 header |
| 2 x USB 2.0/1.1 headers | 2 x Thunderbolt™ add-in card connectors |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | 1 x serial port header |
| 1 x reset button | 1 x Q-Flash Plus button |
| 1 x Clear CMOS button | 1 x reset jumper |

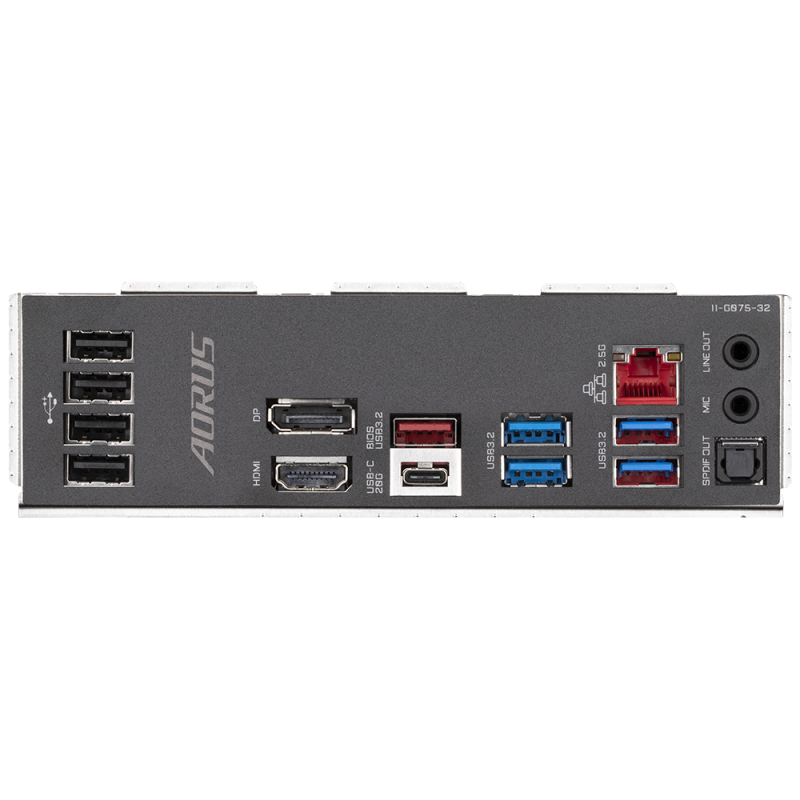

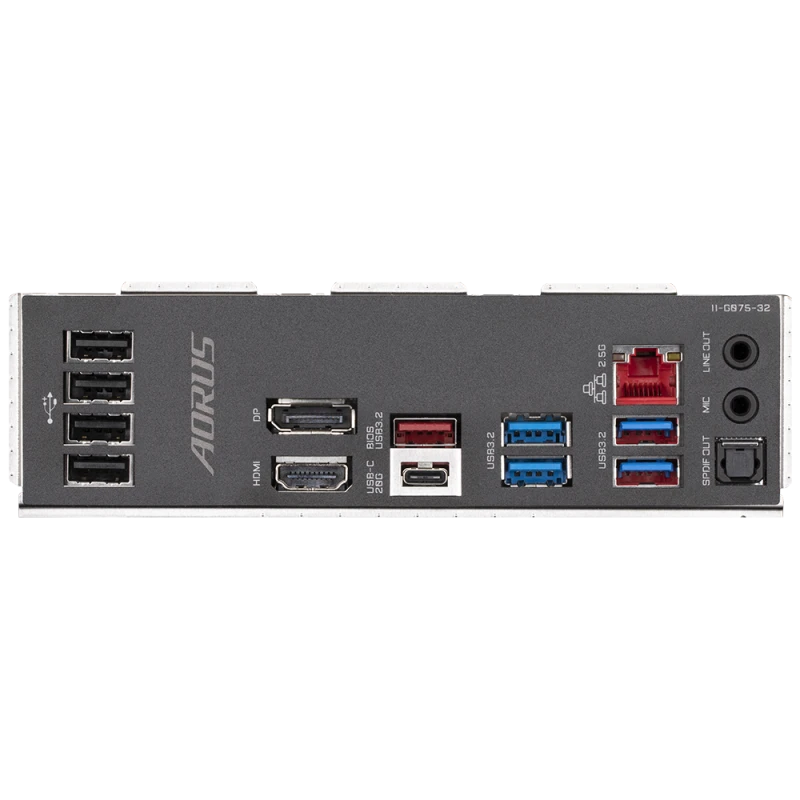

| Back Panel Connectors | 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support |
| 1 x USB 3.2 Gen 2 Type-A port (red) | 4 x USB 3.2 Gen 1 ports |
| 4 x USB 2.0/1.1 ports | 1 x HDMI 2.0 port |
| 1 x DisplayPort | 1 x RJ-45 port |
| 1 x optical S/PDIF Out connector | 2 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | Fan speed detection |
| Water cooling flow rate detection | Fan fail warning |
| Fan speed control | * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) |
| * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | Support for Q-Flash |
| Support for Q-Flash Plus | Support for Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) |
| LAN bandwidth management software | Operating System |
| Support for Windows 11 64-bit | Support for Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
