CPU

CPU Model

Intel Xeon D-1531

CPU Quantity

1

CPU Core

6

CPU Architecture

64-bit

CPU Frequency

2.2 (base) / 2.7 (turbo) GHz

Hardware Encryption Engine

Memory

System Memory

8 GB DDR4 ECC UDIMM

Memory Module Pre-installed

8 GB (8 GB x 1)

Total Memory Slots

4

Maximum Memory Capacity

64 GB (16 GB x 4)

Notes

Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.

For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.

Storage

Drive Bays

12

Maximum Drive Bays with Expansion Unit

36 (RX1217 x 2)

Drive Type (See all supported drives)

3.5" SATA HDD

2.5" SATA SSD

Hot Swappable Drive*

Notes

Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.

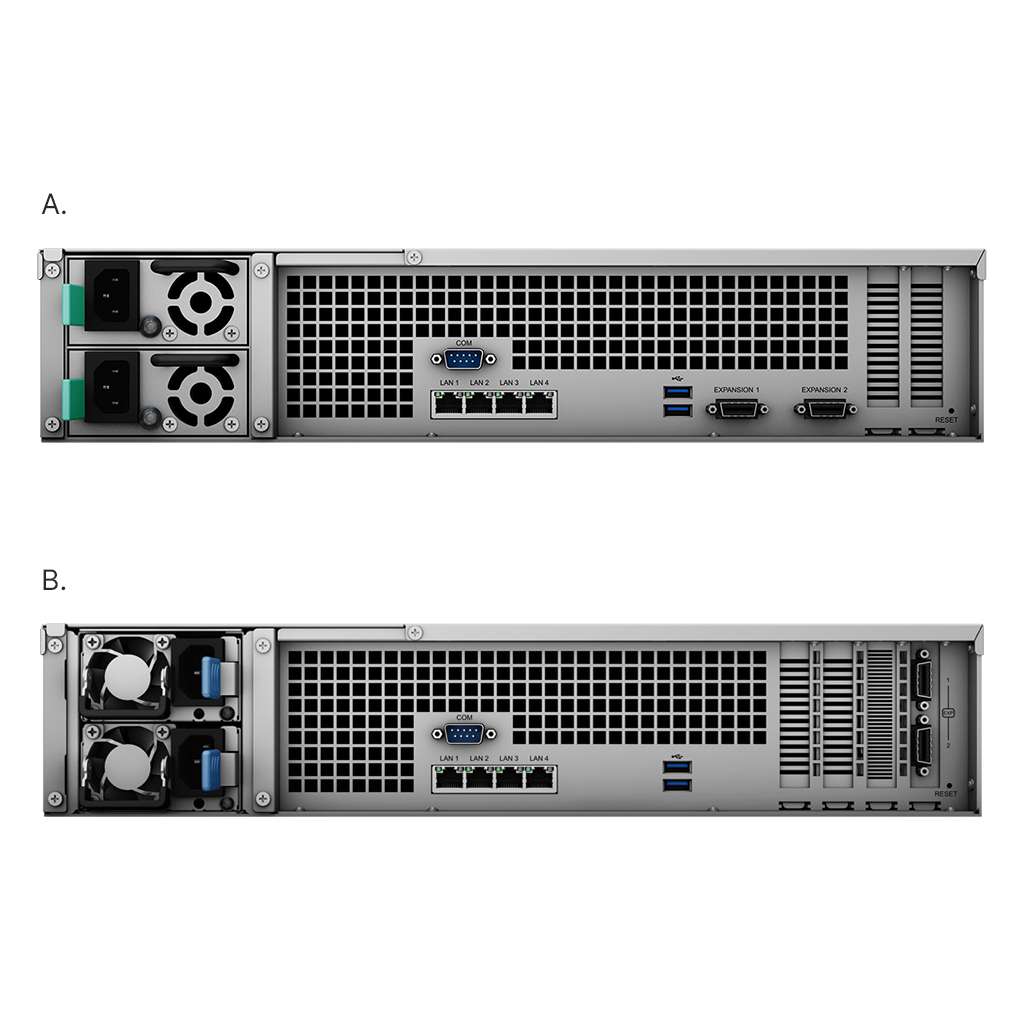

External Ports

RJ-45 1GbE LAN Port

4

USB 3.2 Gen 1 Port

2

Expansion Port

2

Expansion Port Type

Infiniband

PCIe

PCIe Expansion

2 x Gen3 x8 slots (x8 link)

Appearance

Form Factor (RU)

2U

Size (Height x Width x Depth)

88 mm x 482 mm x 724 mm

Weight

14.5 kg

Rack Installation Support*

4-post 19" rack (Synology Rail Kit - RKS-02)

Notes

The rail kit is sold separately

Others

System Fan

80 mm x 80 mm x 4 pcs

Fan Speed Mode

Full-Speed Mode

Cool Mode

Quiet Mode

Easy Replacement System Fan

Power Recovery

Noise Level*

50.2 dB(A)

Scheduled Power On / Off

Wake on LAN / WAN

Power Supply Unit / Adapter

500 watts

550 watts*

Redundant Power Supply

AC Input Power Voltage

100 V to 240 V AC

Power Frequency

50/60 Hz, Single Phase

Power Consumption*

140.01 watts (Access)

65.94 watts (HDD Hibernation)

British Thermal Unit

477.43 BTU/hr (Access)

224.86 BTU/hr (HDD Hibernation)

Notes

For more information on how power consumption is measured, refer to this article.

Power supply specifications vary by hardware revision. A 500 W PSU is used in devices with serial numbers containing SYR (5th to 7th digits), while a 550 W PSU is in devices with UTR and VR2 serial numbers. For more information, refer to the Product Change Notice.

Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

Operating Temperature

0°C to 35°C (32°F to 95°F)

Storage Temperature

-20°C to 60°C (-5°F to 140°F)

Relative Humidity

5% to 95% RH
