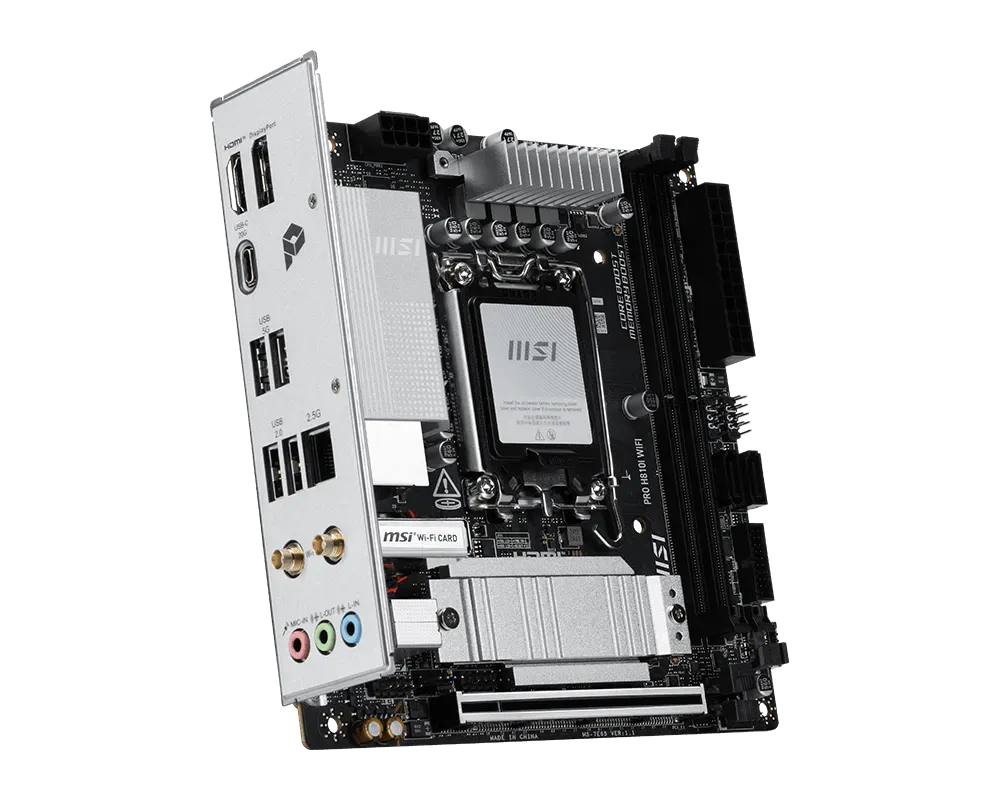

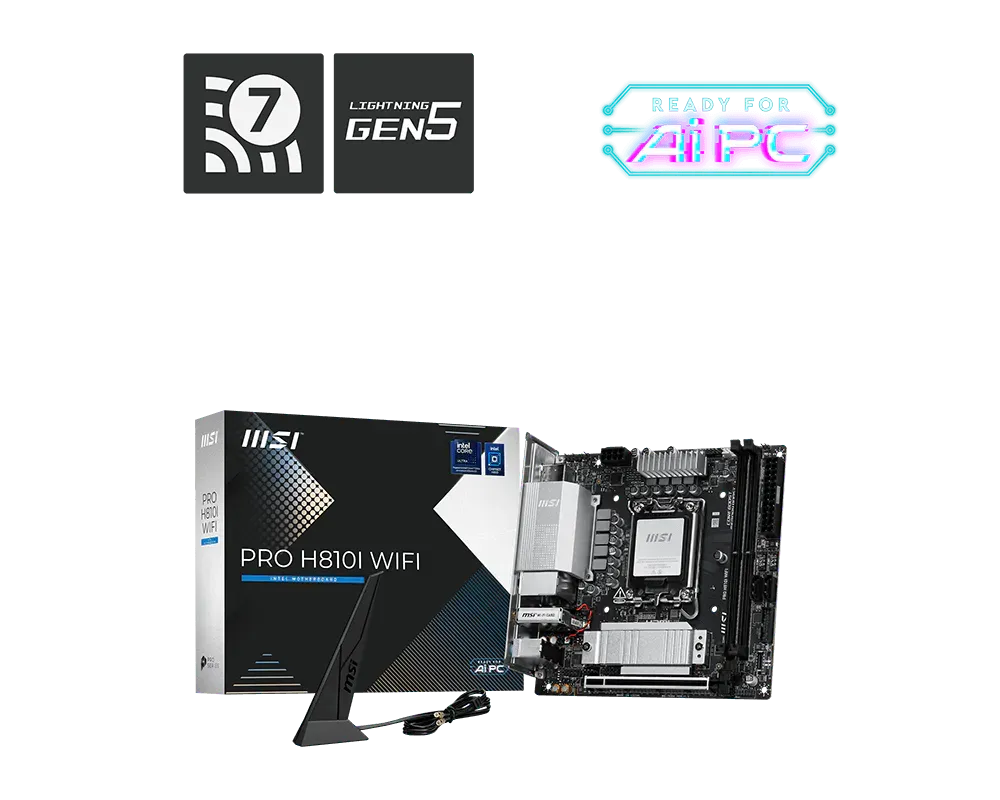

MSI PRO H810I WiFi Intel Core Ultra LGA1851 Mini-ITX Motherboard, DDR5 Dual Slot, PCIe 5.0 Gen5, WiFi

Model & Form Factor

MSI PRO H810I WIFI | Mini-ITX (170 x 170 mm)

Chipset & CPU Socket

Intel® H810 | LGA 1851 (Supports Intel® Core™ Ultra Processors - Series 2)

Memory (RAM)

2x DDR5 UDIMM (Max 128GB) | Up to 6400 MT/s

Supports Intel® XMP 3.0 & CUDIMM

Expansion Slots

1x PCIe 5.0 x16 (From CPU)

Storage Configuration

1x M.2 PCIe 4.0 x4 (From Chipset, supports 2280)

2x SATA 6G

Networking & Wireless

Intel® I226 2.5Gbps LAN

Wi-Fi 7 (up to 2.9Gbps) & Bluetooth® 5.4

Video Outputs

1x HDMI 2.1 (4K@60Hz) | 1x DisplayPort 1.4 (4K@60Hz)

USB Ports (Rear Panel)

1x USB-C (20Gbps) | 2x USB-A (5Gbps) | 2x USB 2.0

Internal USB Headers

1x USB-C (10Gbps) | 2x USB-A (5Gbps) | 4x USB 2.0

Audio Interface

Realtek® ALC897 Codec (7.1-Channel HD Audio)

Internal Headers / Misc

EZ Debug LED (x4) | EZ Memory Detection LED | 1x Addressable V2 RGB header | 3x Fan Headers (1x CPU, 1x Pump/Sys, 1x System)
