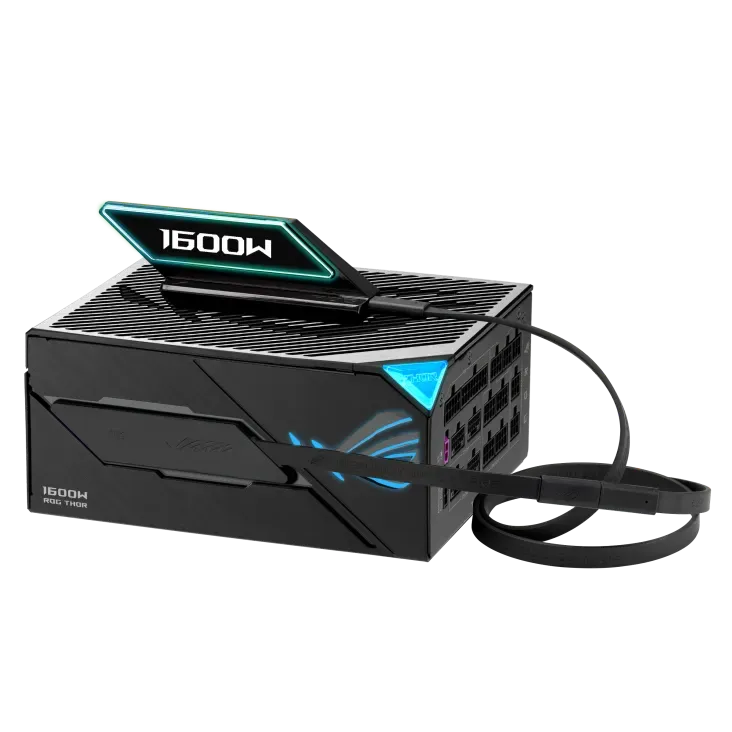

ASUS ROG THOR 1600W Titanium III EVO ATX 3.1 Power Supply, PCIe 5.1, GaN MOSFET, Magnetic OLED Display, 80+ Titanium, Black | 90YE00VB-B0NA00
SKU: 82792
In stock
- Free delivery by Tomorrow, Tue, Nov 17
- Bank transfer payment
- 1 year warranty
- Free returns
Intel Form Factor
ATX12V
PFC Type
Active PFC
ATX Standard
ATX 3.1
80 PLUS Efficiency
80Plus Titanium
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
30A 25A 133.3A 0.3A 3A
Combined Load
125W 125W 1600W 3.6W 15W
Total Output
1600W

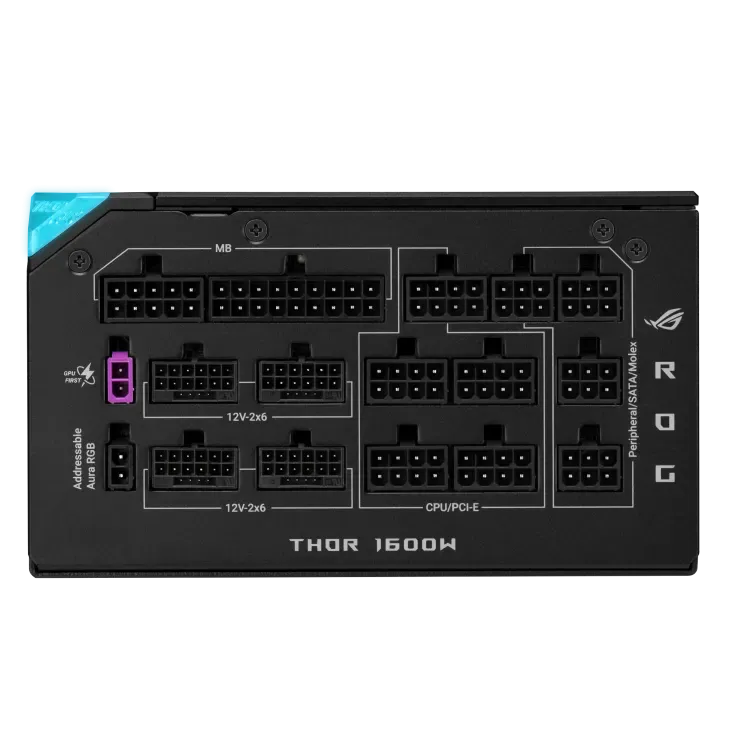

Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 3
PCI-E 6+2-pin x 3
PCI-E 16-pin x 2 (12V-2x6/ROG EQUALIZER)
SATA x 9
PERIPHERAL x 3
CPU 4+4-pin x 3
PCI-E 6+2-pin x 3
PCI-E 16-pin x 2 (12V-2x6/ROG EQUALIZER)
SATA x 9
PERIPHERAL x 3
Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 3 (1000mm)
ROG EQUALIZER 12V-2x6 PCI-E Cable with GPU-First x1 (750mm)
ROG EQUALIZER 12V-2x6 PCI-E Cable x1 (750mm)
PCI-E Cable 1-to-1 x 3 (750mm)
SATA Cable 1-to-3 x 3 (400+120+120mm)
Peripheral 1-to-3 x 1 (400+150+150mm)
Addressable RGB Cable x 1 (800mm)
ROG OLED stand x 1
ROG sticker x 1
ROG cable tie x 6
Chassis Screws Package x 1
Cable Tie x 12
User Manual x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 3 (1000mm)
ROG EQUALIZER 12V-2x6 PCI-E Cable with GPU-First x1 (750mm)
ROG EQUALIZER 12V-2x6 PCI-E Cable x1 (750mm)
PCI-E Cable 1-to-1 x 3 (750mm)
SATA Cable 1-to-3 x 3 (400+120+120mm)
Peripheral 1-to-3 x 1 (400+150+150mm)
Addressable RGB Cable x 1 (800mm)
ROG OLED stand x 1
ROG sticker x 1
ROG cable tie x 6
Chassis Screws Package x 1
Cable Tie x 12
User Manual x 1
Dimensions
190 x 150 x 86 mm
Weight
2.5 kg (single PSU)
AURA SYNC
Yes
MTBF
>120,000 hrs @ 25°C
0dB Fan Button
Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
| Brand | Asus |
|---|---|
| SKU | 82792 |
| Warranty | 1 year |
| Wattage | 1600 |
