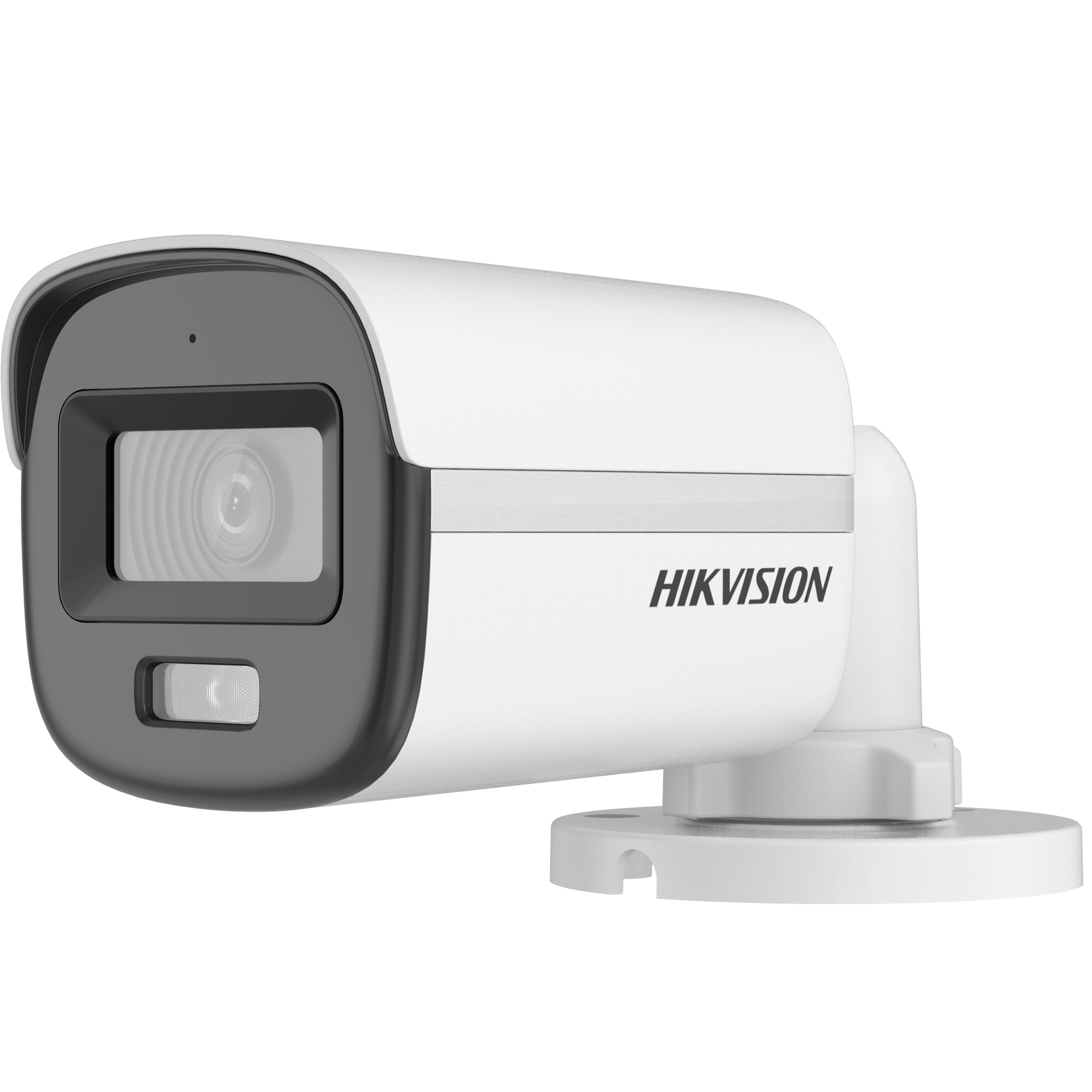

Hikvision DS-2CE10KF0T-LPFS 3K ColorVu Bullet CCTV Camera, Hybrid Light, Built-in Mic, IP67, 2.8mm/3.6mm Lens

Camera

Image Sensor3K CMOS

Signal SystemPAL/NTSC

Resolution2960 (H) × 1665 (V)

Frame Rate

TVI: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps

AHD: 5 MP @20 fps, 4 MP @25 fps/30 fps

CVI: 4 MP @25 fps/30 fps

CVBS: PAL/NTSC

Min. Illumination0.001 Lux @(F1.0, AGC ON), 0 Lux with white light

Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s

Lens2.8 mm, 3.6 mm fixed focal lens

Field of View

2.8 mm, horizontal FOV: 105°, vertical FOV: 60°, diagonal FOV: 143°

3.6 mm, horizontal FOV: 80°, vertical FOV: 50°, diagonal FOV: 112°

Lens MountM12

Light AlarmSolid Light Alarm (White Light)

Day & NightICR

WDR (Wide Dynamic Range)Digital WDR

Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

Microphone

Pickup DistanceIn a radius of up to 5 m

Amount1

Illuminator

Supplement Light TypeSmart,IR,White Light

Supplement Light RangeIR: Up to 20 m,White Light: Up to 20 m


Day/Night ModeAuto/Color

White LightAuto/Off

Image ModeSTD/HIGH-SAT/HIGHLIGHT

AGCYes

White BalanceAuto/Outdoor/Global/Manual

AE (Auto Exposure) ModeHLS;DWDR;BLC;HLC;Global

Noise Reduction2D DNR

LanguageEnglish

FunctionSmart IR;Brightness;Sharpness;AGC;Anti-Banding

Interface

Video OutputSwitchable TVI/AHD/CVI/CVBS

Audio InBuilt-in mic

General

Power12 VDC ± 25%, max.3.9 W,*You are recommended to use one power adapter to supply the power for one camera.

Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing)

Protection LevelIP67

MaterialPlastic

CommunicationHIKVISION-C

Dimension161.1 mm × 70 mm × 70 mm (6.34" × 2.76" × 2.76")

WeightApprox. 230 g (0.51 lb.)
