posiflex PS-3616-G2 Touchscreen Point of Sale POS Terminal 15.6″ PCAP Multi-TOUCH TFT Screen, ELKHART LAKE JK6412 CPU, 8GB DDR4 RAM, 128GB M.2 SSD, WITH PSU 12V/60W, W/O SPEAKER, GEN 7 BASE, W/O MSR, NO OS, BLACK,
posiflex PS-3616-G2 Touchscreen Point of Sale POS Terminal 15.6″ PCAP Multi-TOUCH TFT Screen, ELKHART LAKE JK6412 CPU, 8GB DDR4 RAM, 128GB M.2 SSD, WITH PSU 12V/60W, W/O SPEAKER, GEN 7 BASE, W/O MSR, NO OS, BLACK,
posiflex PS-3616-G2 Touchscreen Point of Sale POS Terminal 15.6″ PCAP Multi-TOUCH TFT Screen, ELKHART LAKE JK6412 CPU, 8GB DDR4 RAM, 128GB M.2 SSD, WITH PSU 12V/60W, W/O SPEAKER, GEN 7 BASE, W/O MSR, NO OS, BLACK,
Thumbnail
Thumbnail
Thumbnail
‹
›

posiflex PS-3616-G2 Touchscreen Point of Sale POS Terminal 15.6″ PCAP Multi-TOUCH TFT Screen, ELKHART LAKE JK6412 CPU, 8GB DDR4 RAM, 128GB M.2 SSD, WITH PSU 12V/60W, W/O SPEAKER, GEN 7 BASE, W/O MSR, NO OS, BLACK,

(0 Reviews)

SKU: 6555

Category: POS Machine

Brand: posiflex

Warranty: Reliable Quality, Backed by a 1 Year Warranty

Add to Wishlist
AED 2,930.00

Sold By: PC7

Availability: In Stock

Condition: New

Delivery To: Dublin

Free Delivery

Delivered by: Delivery not available in United States

  • Description
  • Product Reviews
  • Specifications

posiflex PS-3616-G2 Touchscreen Point of Sale POS Terminal 15.6″ PCAP Multi-TOUCH TFT Screen, ELKHART LAKE JK6412 CPU, 8GB DDR4 RAM, 128GB M.2 SSD, WITH PSU 12V/60W, W/O SPEAKER, GEN 7 BASE, W/O MSR, NO OS, BLACK,

PS-3616-G2 Overview




Intelligently Designed

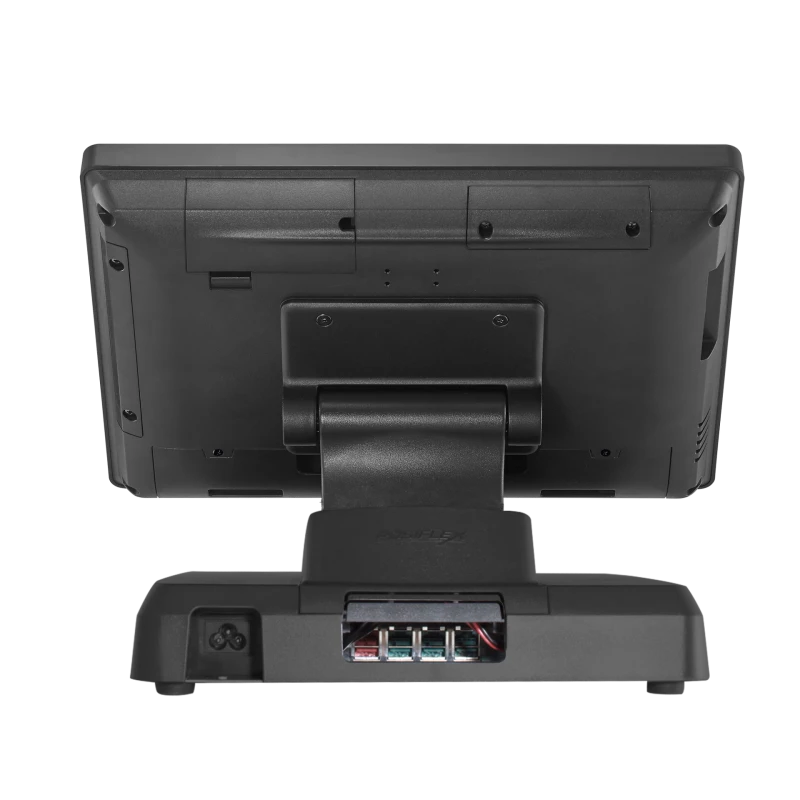

Equipped with an adjustable base, PS-3616-G2 enables the ultimate flexibility for space-limited environments.


Expanded Capability

By separating a full set of ports into the top of the terminal, PS-3616-G2 provides extensive connections, easy accessibility, and reliable peripheral cabling.


Reliable

Built with a 15.6" PCAP wide touchscreen display and powered by Intel® Elkhart Lake processor, PS-3616-G2 is designed to run today's demanding POS applications.


Customer Reviews

Write A Review

No reviews yet for this product.

Add a Review

General

Weight: 5.00 kg
Dimensions: 38 x 26x 30 cm

Specifications

System-Configuration PS-3616-G2
Processor Intel Elkhart Lake Celeron J6412, up to 2.60 GHz, 1.5M Cache
System Memory DDR4 SO-DIMM x 1, max. 32GB
Storage Device M.2 connector x 1 (support SATA signal only)
RAID Function N/A
Intel vPro Support N/A
TPM TPM 2.0
Power Supply 12V/60W
OS Support Windows 10 IoT LTSC
OS Support Windows 11 IoT LTSC
Display & Touch
Display & Touch LCD 15.6" TFT LCD
Resolution 1366 x 768
Touch True-flat PCAP touch with multi-touch support (IP65 on front panel)
I/O Expansion
Serial Port DB9 x 3 + RJ50 x 1, 5V/12V support on all COM ports
Parallel Port via optional conversion cable through service window
Standard USB Port USB 3.0 x 2+ USB 2.0 x 3
PoweredUSB Port Optional 24V x 1 + 12V x 3 via GEN8 base
OTG USB N/A
LAN Port 10/100/1000 Mb x 1
Display Port VGA x 1 (12V support for Posiflex monitors)
CR Port RJ11 x 1, control 2 CR via optional Y-cable, support 24V cash drawer
PS2 Port via optional conversion cable through service window
UPS Port N/A
Audio Buzzer x 1; Optional internal 2W speaker x 1
Expansion Slot M.2 slot x 1
Dimension
Dimension Dimension (W x D x H in mm) 372 x 252.7 x 291.4
Weight (N. W. in kg) 4.7
Environmental
Environmental Operating Condition 0°C - 40°C, 20%RH - 90%RH
Storage Condition -20°C - 70°C, 10%RH - 90%RH Built-In Options
WiFi module M.2 WiFi/BT module
Camera Module N/A
Printer Module N/A
AG Glass N/A
Attachment Options
POS Monitor Non-touch TFT USB LCD Line Display 2 x 20 rear-mount VFD customer line display;
2 x 20 rear-mount LCD customer line display; 7" color LCD graphical line display
External UPS Pack for RT Series N/A Attachment MSR; iButton; Rotatable 2D Scanner; RFID; Fingerprint Sensor; Keypad
