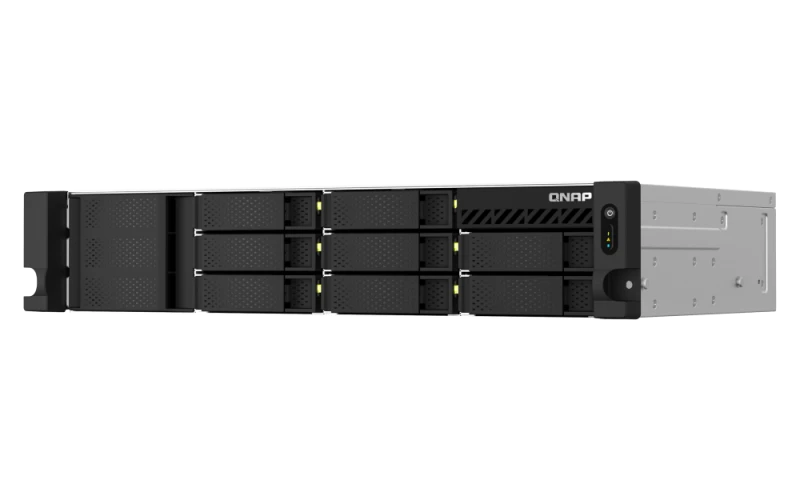

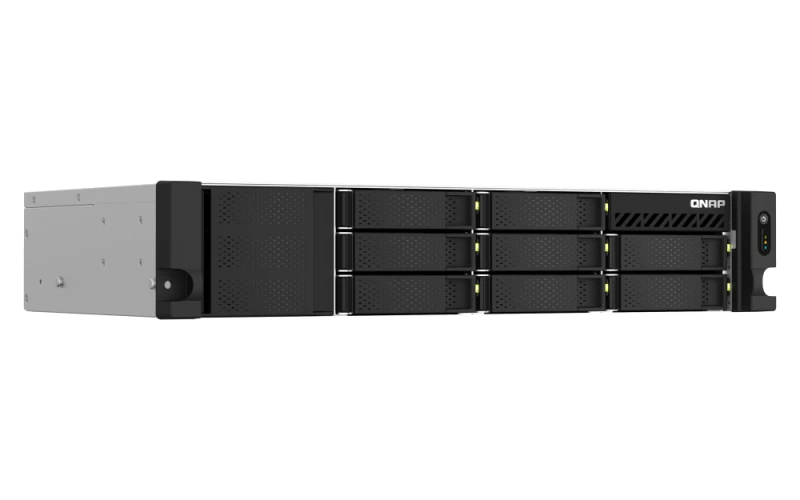

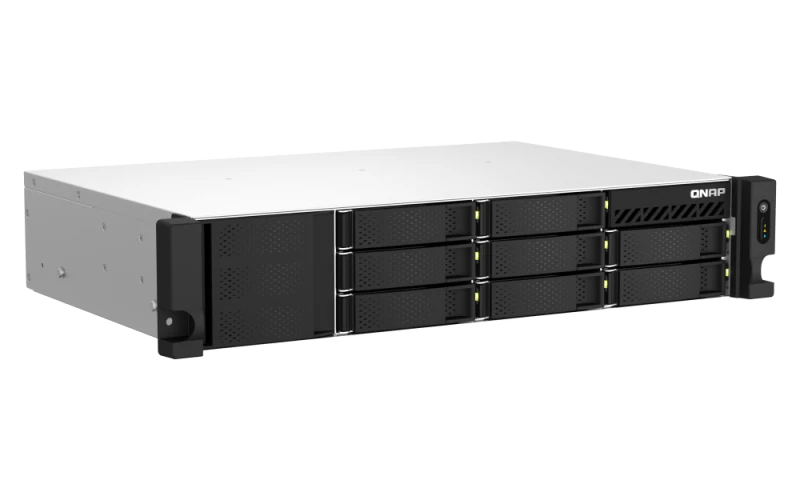

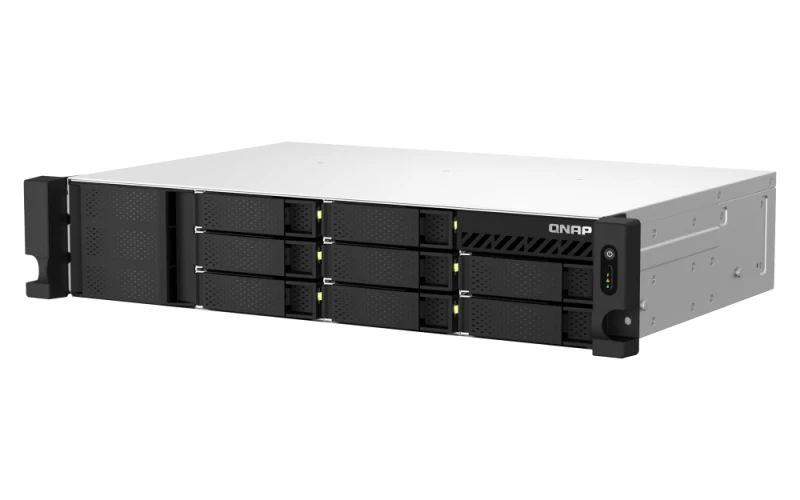

The TS-864eU-RP is powered by Intel® Celeron® N5095 quad-core processor (burst up to 2.9 GHz). The space-efficient short depth design makes it easy to install in small media cabinets or places with a lot of cabling. With expandable storage capacity and feature-rich apps, the TS-864eU-RP surpasses the previous generation.
The TS-864eU-RP uses the QTS operating system by default. You will be able to switch to using the QuTS hero operating system. QuTS hero provides benefits such as ZFS data integrity and WORM technology to prevent data tampering. (Switching to QuTS hero is supported starting from QTS 5.2.2.)
Users can purchase the optional RAIL-S01 short rail kit to deploy the TS-864eU-RP in a 19-inch rack following the ANSI/EIA-RS-310-D standard.
2.5GbE connectivity
Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE ports.
HDMI™ Output
Supports 4K media playback and real-time transcoding.
PCIe expandability
One PCIe slots allow for installing 2.5/5/10GbE adapters, QM2 cards, or USB 3.2 Gen 2 (10Gbps) expansion cards.
USB interface
Two USB 3.2 Gen 2 10Gbps ports for faster data transfer.
Backup and data recovery
Protects PC/Macs, virtual machines, software containers, cloud data, and SaaS services.
Hybrid cloud applications
Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS.
Quad-core Processor, burst up to 2.9 GHz with Memory Upgradable to 8 GB
The TS-864eU-RP is powered by Intel® Celeron® N5095 quad-core processor (burst up to 2.9 GHz) with 4 GB DDR4 memory which is upgradable up to 16 GB. With Intel® AES-NI encryption engine, the TS-x64eU provides unmatched encryption performance with AES-256 bit encryption acceleration, boosting system performance while ensuring the safety of sensitive business data stored in the NAS.
Build a High-Speed 2.5GbE Network Environment
QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.
A fast 2.5GbE NAS
A QNAP NAS featuring one or more 2.5GbE ports, and Port Trunking allows you to combine multiple ports for greater bandwidth potential.
Upgrade computers and servers
Servers and desktops can install PCIe-based QNAP network cards that support 10G/5G/2.5G/1G/100M Multi-Gig.
Add a 5GbE port to laptops
Laptops and upgrade-limited computers can use QNAP’s portable USB 3.2 Gen 1 to 5GbE adapter that allows you to connect to 5G/2.5G/1G/100M networks via USB.
A switch that supports 2.5GbE+
QNAP’s 10GbE/NBASE-T switches support 10G/5G/2.5G/1G/100M and allow connecting multiple workstations and devices for high-speed collaboration in device-dense environments.
| Weight: | 10.00 kg |
| Dimensions: | 60x40x30 cm |
|
CPU Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz CPU Architecture 64-bit x86 Graphic Processors Intel® UHD Graphics Floating Point Unit Encryption Engine (AES-NI) Hardware-accelerated Transcoding System Memory 4 GB SODIMM DDR4 (1 x 4 GB) Maximum Memory 16 GB (2 x 8 GB) Memory Slot 2 x SODIMM DDR4 When installing two memory modules, please ensure that they are the same size and ideally use the same type of RAM for both memory slots. Flash Memory 4GB (Dual boot OS protection) Drive Bay 8 x 3.5-inch SATA 6Gb/s, 3Gb/s Drive Compatibility 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives Hot-swappable (Not supported M.2 SSD) M.2 Slot Optional via a PCIe adapter SSD Cache Acceleration Support 2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (2.5G/1G/100M/10M) 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via network adaptor 10 Gigabit Ethernet Port Optional via network adaptor Optional via PCIe expansion card Wake on LAN (WOL) Jumbo Frame PCIe Slot 1 Slot 1: PCIe Gen 3 x2 Card dimensions for PCIe slot 1：97 x 68.9 x 18.76 mm / 3.82 x 2.71 x 0.74 inches. USB 2.0 port 2 USB 3.2 Gen 2 (10Gbps) Port 2 x Type A USB 3.2 Gen 2 HDMI™ Output 1, HDMI™ 1.4b Form Factor 2U Short Depth Rackmount LED Indicators HDD 1-8, Status, LAN, Expansion, Power Buttons Power, Reset Dimensions (HxWxD) 88.6 × 432 × 297.4 mm Weight (Net) 9.21 kg Weight (Gross) 10.71 kg Operating Temperature 0 - 40 °C (32°F - 104°F) Storage Temperature -20 - 70°C (-4°F - 158°F) Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) Power Supply Unit 300W (x2), 100-240V Power Consumption: Disk Standby Mode 31.742 Power Consumption: Operating Mode, Typical 55.83 W Tested with drives fully populated. Fan 3 x 60mm, 12VDC System Warning Buzzer Standard Warranty 3 Max. Number of Concurrent Connections (CIFS) - with Max. Memory 1500 |
