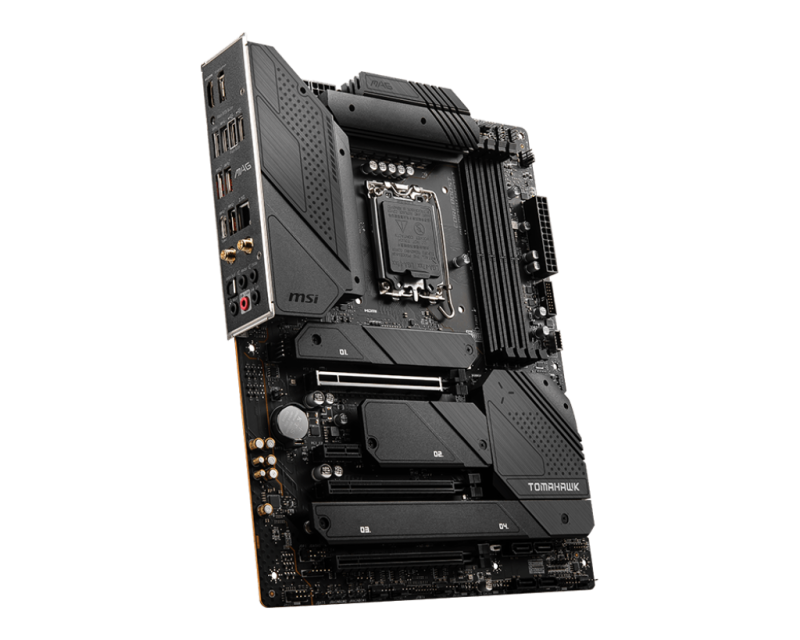

MSI MAG Z690 TOMAHAWK WIFI, Socket 1700 , Intel® Z690 Chipset, 4x DDR5 memory slots, supporting up to 192GB, 1x HDMI,1x DisplayPort, 3x PCI-E x16 slot, 4x M.2, 6x SATA 6G, ATX Motherboard | 911-7D32-001

MAG Z690 TOMAHAWK WIFI

1. Supports 12th/ 13th Gen Intel^® Core™, Pentium^® Gold and Celeron^® processors for LGA 1700 socket
2. Supports DDR5 Memory, up to 6400(OC) MHz
3. Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
4. 2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
5. Lightning M.2: Running at PCIe Gen 5 maximizes performance for NVMe based SSDs
6. Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
7. AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
8. Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™

a

MAG Z690 TOMAHAWK WIFI

EXCLUSIVE FEATURE

Core Boost Technology

With premium layout design, that is ready for unleashing the maximum performance.

6 layer PCB with 2oz Thickened Copper

6 layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.

16+1+1 Duet Rail Power System

An aggressive digital VRM power design with digital PWM IC and 16 Duet Rail Power System with 70A Smart Power Stage, make sure your system runs smoothly under the most extreme conditions.

PCIe Steel Armor

Protecting VGA cards against bending and EMI for better performance, stability and strength.

MAG Z690 TOMAHAWK WIFI

PREMIUM THERMAL SOLUTION

Extended Heatsink

MSI extended heatsink and enhanced circuit design ensures even high-end processors to run in full speed.

M.2 Shield Frozr

Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

Pump Fan Support

Control watercooling pump speeds for best flow and noise control.

Heatsinks with 7W/mK Thermal Pad

7W/mK thermal pad provides better heat transfer to the heatsink.

MAG Z690 TOMAHAWK WIFI

HIGH-SPEED TRANSMISSION

2.5G Network Solution

Featuring premium 2.5G LAN with LAN manager delivers better network experience.

Wi-Fi 6E

The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.

Audio Boost 5

ALC4080 Codec with top quality caps for the most immersive gaming experience.

Memory Boost

The fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.

Lightning Gen 5 Solution

The latest Gen 5 PCI-E slots with up to 128GB/s bandwidth for maximum transfer speed.

a

CORE BOOST

Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

a

16 + 1 +1 DUET RAIL POWER SYSTEM

Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MAG series motherboard is ready to sustain heavy gaming loadings.

a

ENHANCED PERFORMANCE

High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.

a

CONNECTIVITY

MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one.

NETWORKING

SURFACING WITH THE REAL MU-MIMO TECHNOLOGY

The latest Wi-Fi 6E solution supports 6GHz spectrum, Bluetooth 5.2, two-way MU-MIMO and BSS color technology, provide up to 4X network capacity and efficiency in the high signal density environment, delivering speeds up to 2400Mbps.
